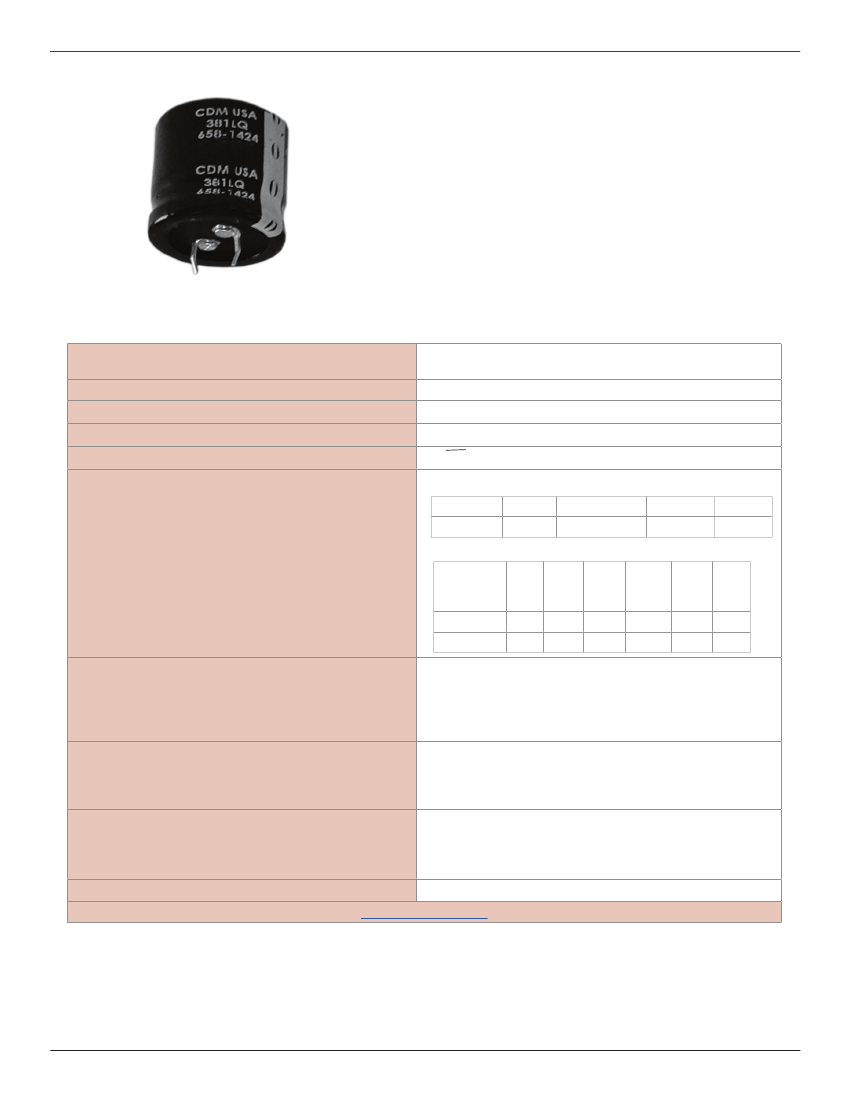

Type 381LQ 105 ºC Compact, High Ripple, Snap-In Aluminum
Higher Capacitance per Case Size
Type 381LQ is on average 23% smaller and more than 5 mm
shorter than Type 381LX. This is achieved with a new can
closure method that permits installing capacitor elements into
smaller cans. Approaching the robust capability of the 381L
the new 381LQ enables you to shrink equipment size and
retain the original performance.
Highlights
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
- More capacitance per case
- Compares to the 381L
–40 °C to + 105 °C ≤ 315 Vdc
–25 °C to + 105 °C ≥ 350 Vdc
10 Vdc to 450 Vdc
100 µF to 100,000 µF
± 20%
≤3 √CV µA, 4 mA max, 5 minutes
Ambient Temperature
45 ºC
2.35
Frequency
10
50 Hz 60 Hz 120 Hz 500 kHz 1 kHz kHz &
Up
0.93
0.95
0.80
1.00
1.00
1.05
1.20
1.08
1.25
1.15
1.40
60 ºC
2.20
70 ºC
2.00
85 ºC
1.70
105 ºC
1.00
Voltage
10 - 100 WV
Low Temperature Characteristics
160 - 450 WV 0.75
Impedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 10 (10 Vdc)
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–450 Vdc)
2000 h at full load at 105 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
1000 h at 105 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
10 to 55 Hz, 0.06” and 10 g max, 2 h each plane
Regulatory Information
Endurance Life Test
Shelf Life Test
Vibration
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 381LQ 105 ºC Compact, High Ripple, Snap-In Aluminum
Higher Capacitance per Case Size
Part Numbering System
381LQ
821
M
160
J04
Case
2
Insulating
Sleeve
2
= PVC
A
Type
Cap
332
= 3300 µF
103
= 10,000 µF
Tolerance
M =
±20%
Voltage
160
= 160 Vdc
450
= 450 Vdc
Code
Pin Style
Blank
= 2 pins
snap-in 6.3 mm L
A
= 2 pins snap-in
4.0 mm L
381LQ 821
=820 µF

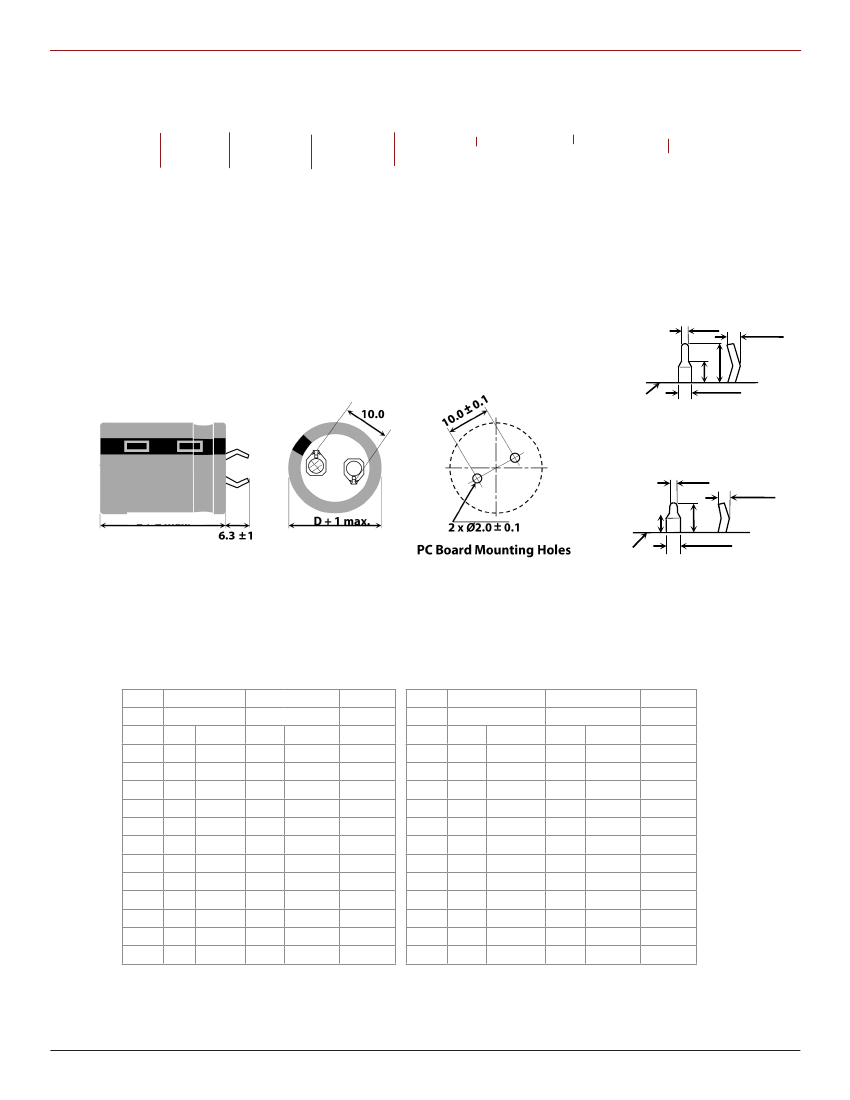

Outline Drawing
+0.2
0.8 -0.1
6.3 1
2.0max.
4.0
Top of
Capacitor
Body
1.5 0.2
6.3 mm pin length
+0.2
0.8 -0.1
2.0max.
L ± 2 max.
3.5
4.0
1.5 0.2
Dimensions shown are in mm
Top of
Capacitor
Body
4.0 mm pin length
option (add “A” to end
of part#)
Insulated Case Dimensions
DIAMETER
Case
Code
H01
H02
H03
H04
H45
H05
J01
J02
J03
J04
J45
J05
mm
22
22
22
22
22
22
25
25
25
25
25
25
D
inches
0.87
0.87
0.87
0.87
0.87
0.87
0.98
0.98
0.98
0.98
0.98
0.98
mm
25
30
35
40
45
50
25
30
35
40
45
50
LENGTH
L
inches
0.98
1.18
1.38
1.57
1.77
1.97
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
16
19
22
24
28
31
20
24
27
31
35
38
Case
Code
K01
K02
K03
K04
K45
K05
A01
A02
A03
A04
A45
A05
mm
30
30
30
30
30
30
35
35
35
35
35
35
DIAMETER
D
inches
1.18
1.18
1.18
1.18
1.18
1.18
1.38
1.38
1.38
1.38
1.38
1.38
mm
25
30
35
40
45
50
25
30
35
40
45
50
LENGTH
L
inches
0.98
1.18
1.38
1.57
1.77
1.97
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
30
35
40
44
49
53
42
48
54
60
67
74
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Higher Capacitance per Case Size
Ratings
Cap.
(uF)
Catalog Part Number
Type 381LQ 105 ºC Compact, High Ripple, Snap-In Aluminum
Max. ESR
@ +25°C
120 Hz
(ohms)
20 kHz
(ohms)
Ripple Amps
@ +105°C
120 Hz
(A)
20 kHz
(A)
Nominal
Size
DxL
(mm)
10 Vdc (13 Vdc Surge)
12000
18000
22000
27000
33000
39000
47000
56000
68000
82000
100000
10000
12000
15000
18000
22000
27000
27000
33000
39000
47000
56000
381LQ123M010H012
381LQ183M010H022
381LQ223M010H032
381LQ273M010J032
381LQ333M010J042
381LQ393M010K032
381LQ473M010K032
381LQ563M010K042
381LQ683M010K452
381LQ823M010A452
381LQ104M010A052
381LQ103M016H012
381LQ123M016H022
381LQ153M016H032
381LQ183M016H032
381LQ223M016H042
381LQ273M016H052
381LQ273M016K022
381LQ333M016K032
381LQ393M016K042
381LQ473M016K452
381LQ563M016A452
0.076
0.051
0.041
0.034
0.028
0.026
0.024
0.023
0.022
0.021
0.020
0.075
0.062
0.050
0.041
0.034
0.028
0.028
0.023
0.022
0.016
0.020
0.065
0.043
0.035
0.029
0.023
0.022
0.022
0.021
0.020
0.019
0.019
0.063
0.053
0.042
0.035
0.029
0.023
0.023
0.019
0.018
0.014
0.018
2.20
2.40
2.60
3.10
3.40
3.70
4.20
5.00
5.40
6.10
6.90
2.60
2.90
3.20
3.50
3.80
4.20
4.20
4.70
5.10
5.50
6.00
2.53
2.76
2.99
3.57
3.91
4.26
4.83
5.75
6.21
7.02
7.94
2.99
3.34
3.68
4.03
4.37
4.83
4.83
5.41
5.87
6.33
6.90
22 x 25
22 x 30
22 x 35
25 x 35
25 x 40
30 x 35
30 x 35
30 x 40
30 x 45
35 x 45
35 x 50
22 x 25
22 x 30
22 x 35
22 x 35
22 x 40
22 x 50
30 x 30
30 x 35
30 x 40
30 x 45
35 x 45
16 Vdc (20 Vdc Surge)
25 Vdc (32 Vdc Surge)
6800
8200
10000
12000
15000
18000
22000
27000
33000
39000
47000
4700
5600
5600
6800
8200
10000
381LQ682M025H022
381LQ822M025H022
381LQ103M025J022
381LQ123M025J022
381LQ153M025J032
381LQ183M025J042
381LQ223M025J452
381LQ273M025K042
381LQ333M025K452
381LQ393M025A452
381LQ473M025A052
381LQ472M035H012
381LQ562M035H022
381LQ562M035J012
381LQ682M035J022
381LQ822M035J022
381LQ103M035J032
0.085
0.071
0.058
0.048
0.039
0.032
0.026
0.021
0.018
0.017
0.017
0.106
0.089
0.089
0.073
0.061
0.050
0.064
0.053
0.044
0.036
0.029
0.024
0.020
0.016
0.013
0.014
0.014
0.079
0.067
0.067
0.055
0.045
0.037
2.40
2.70
3.00
3.20
3.60
3.90
4.30
4.80
5.50
5.80
6.30
2.20
2.40
2.40
2.60
2.90
3.20
2.76
3.11
3.45
3.68
4.14
4.49
4.95
5.52
6.33
6.67
7.25
2.53
2.76
2.76
2.99
3.34
3.68
22 x 30
22 x 30
25 x 30
25 x 30
25 x 35
25 x 40
25 x 45
30 x 40
30 x 45
35 x 45
35 x 50
22 x 25
22 x 30
25 x 25
25 x 30
25 x 30
25 x 35
35 Vdc (44 Vdc Surge)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 381LQ 105 ºC Compact, High Ripple, Snap-In Aluminum
Higher Capacitance per Case Size
Max. ESR
Cap.
(uF)
@ +25°C
Catalog Part Number
120 Hz
(ohms)
12000
15000
18000
22000
27000
33000
381LQ123M035J042
381LQ153M035K042
381LQ183M035K452
381LQ223M035K452
381LQ273M035A052
381LQ333M035A052
0.041
0.033
0.028
0.023
0.018
0.015
50 Vdc (63 Vdc Surge)
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
381LQ272M050H012
381LQ332M050H012
381LQ392M050J012
381LQ472M050H032
381LQ562M050J032
381LQ682M050H452
381LQ822M050A032
381LQ103M050J052
381LQ123M050K452
381LQ153M050K452
381LQ183M050A452
0.154
0.126
0.106
0.088
0.074
0.061
0.051
0.041
0.035
0.028
0.023
63 Vdc (79 Vdc Surge)
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
381LQ222M063H022
381LQ272M063H042
381LQ332M063H042
381LQ392M063J022
381LQ472M063J032
381LQ562M063K022
381LQ682M063K042
381LQ822M063A032
381LQ103M063K452
381LQ123M063K052
381LQ122M080H022
381LQ152M080H022
381LQ182M080H032
381LQ222M080H042
381LQ272M080J042
381LQ332M080J042
381LQ392M080K042
381LQ472M080K042
381LQ562M080K452
381LQ682M080K052
381LQ822M080A452
0.151
0.123
0.100
0.085
0.071
0.059
0.049
0.040
0.033
0.028
80 Vdc (100 Vdc Surge)
0.235
0.188
0.157
0.128
0.104
0.085
0.072
0.060
0.050
0.041
0.034
0.176
0.141
0.117
0.096
0.078
0.064
0.054
0.045
0.038
0.031
0.027
1.50
1.70
1.80
2.10
2.40
2.60
3.00
3.30
3.70
3.90
4.50
1.73
1.96
2.07
2.42
2.76
2.99
3.45
3.80
4.26
4.49
5.18
22 x 30
22 x 30
22 x 35
22 x 40
25 x 40
25 x 40
30 x 40
30 x 40
30 x 45
30 x 50
35 x 45
0.113
0.092
0.075
0.064
0.053
0.044
0.037
0.030
0.025
0.021
2.00
2.20
2.50
2.70
3.00
3.30
3.60
3.90
4.40
4.80
2.30
2.53
2.88
3.11
3.45
3.80
4.14
4.49
5.06
5.52
22 x 30
22 x 40
22 x 40
25 x 30
25 x 35
30 x 30
30 x 40
35 x 35
30 x 45
30 x 50
0.115
0.094
0.080
0.066
0.056
0.046
0.038
0.031
0.026
0.021
0.018
1.80
2.00
2.20
2.50
2.80
3.30
3.60
4.00
4.50
4.80
5.60
2.07
2.30
2.53
2.88
3.22
3.80
4.14
4.60
5.18
5.52
6.44
22 x 25
22 x 25
25 x 25
22 x 35
25 x 35
22 x 45
35 x 35
25 x 50
30 x 45
30 x 45
35 x 45
20 kHz
(ohms)
0.031
0.025
0.021
0.017
0.014
0.012
Ripple Amps
@ +105°C
120 Hz
(A)
3.50
3.90
4.30
5.00
5.30
5.90
20 kHz
(A)
4.03
4.49
4.95
5.75
6.10
6.79
Nominal
Size
DxL
(mm)
25 x 40
30 x 40
30 x 45
30 x 45
35 x 50
35 x 50
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 381LQ 105 ºC Compact, High Ripple, Snap-In Aluminum
Higher Capacitance per Case Size
Max. ESR
Cap.
(uF)
@ +25°C
Catalog Part Number
120 Hz
(ohms)
20 kHz
(ohms)
Ripple Amps
@ +105°C
120 Hz
(A)
20 kHz
(A)
Nominal
Size
DxL
(mm)
100 Vdc (125 Vdc Surge)
820
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
381LQ821M100H022
381LQ122M100H022
381LQ152M100K012
381LQ182M100H042
381LQ222M100J452
381LQ272M100A022
381LQ332M100A022
381LQ392M100K052
381LQ472M100K052
381LQ562M100A052
381LQ682M100A052
0.303
0.207
0.166
0.138
0.113
0.092
0.075
0.064
0.053
0.044
0.037
0.197
0.135
0.108
0.090
0.073
0.060
0.049
0.043
0.038
0.031
0.027
1.40
1.80
2.10
2.30
2.60
2.90
3.20
3.60
3.80
4.20
4.70
1.61
2.07
2.42
2.65
2.99
3.34
3.68
4.14
4.37
4.83
5.41
22 x 30
22 x 30
30 x 25
22 x 40
25 x 45
35 x 30
35 x 30
30 x 50
30 x 50
35 x 50
35 x 50
160 Vdc (200 Vdc Surge)
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
381LQ471M160H022
381LQ561M160H042
381LQ681M160H042
381LQ821M160J042
381LQ102M160J042
381LQ122M160K032
381LQ152M160K452
381LQ182M160K452
381LQ222M160K052
381LQ272M160A052
381LQ332M160A052
0.423
0.355
0.293
0.243
0.199
0.166
0.133
0.110
0.090
0.080
0.070
0.190
0.160
0.132
0.109
0.090
0.075
0.060
0.055
0.045
0.040
0.042
1.40
1.50
1.70
2.00
2.20
2.30
2.50
2.70
2.90
3.10
3.30
1.96
2.10
2.38
2.80
3.08
3.22
3.50
3.78
4.06
4.34
4.62
22 x 30
22 x 40
22 x 40
25 x 40
25 x 40
30 x 35
30 x 45
30 x 45
30 x 50
35 x 50
35 x 50
180 Vdc (225 Vdc Surge)
560
680
820
1000
1200
1500
1800
2200
390
470
560
680
680
820
1000
1000
381LQ561M180H042
381LQ681M180J032
381LQ821M180J042
381LQ102M180J052
381LQ122M180J052
381LQ152M180K052
381LQ182M180K052
381LQ222M180A052
381LQ391M200H022
381LQ471M200H022
381LQ561M200H042
381LQ681M200H042
381LQ681M200J032
381LQ821M200J042
381LQ102M200J052
381LQ102M200K022
0.355
0.293
0.243
0.199
0.166
0.133
0.110
0.090
0.510
0.423
0.355
0.293
0.293
0.243
0.199
0.199
0.160
0.132
0.109
0.090
0.075
0.060
0.050
0.041
0.230
0.190
0.160
0.132
0.132
0.109
0.090
0.090
1.50
1.70
2.00
2.20
3.31
2.50
2.70
2.90
1.31
1.45
1.67
1.75
1.75
1.99
2.30
2.30
2.10
2.38
2.80
3.08
4.63
3.50
3.78
4.06
1.83
2.03
2.34
2.45
2.45
2.79
3.22
3.22
22 x 40
25 x 35
25 x 40
25 x 50
25 x 50
30 x 50
30 x 50
35 x 50
22 x 30
22 x 30
22 x 40
22 x 40
25 x 35
25 x 40
25 x 50
30 x 30
200 Vdc (250 Vdc Surge)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
