BPH-2-RASM-22-SD-SG50: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

BPH-2-RASM-22-SD-SG50 Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle

BPH-2-RASM-22-SD-SG50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166982505
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.157 inch
body length	0.866 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	22

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

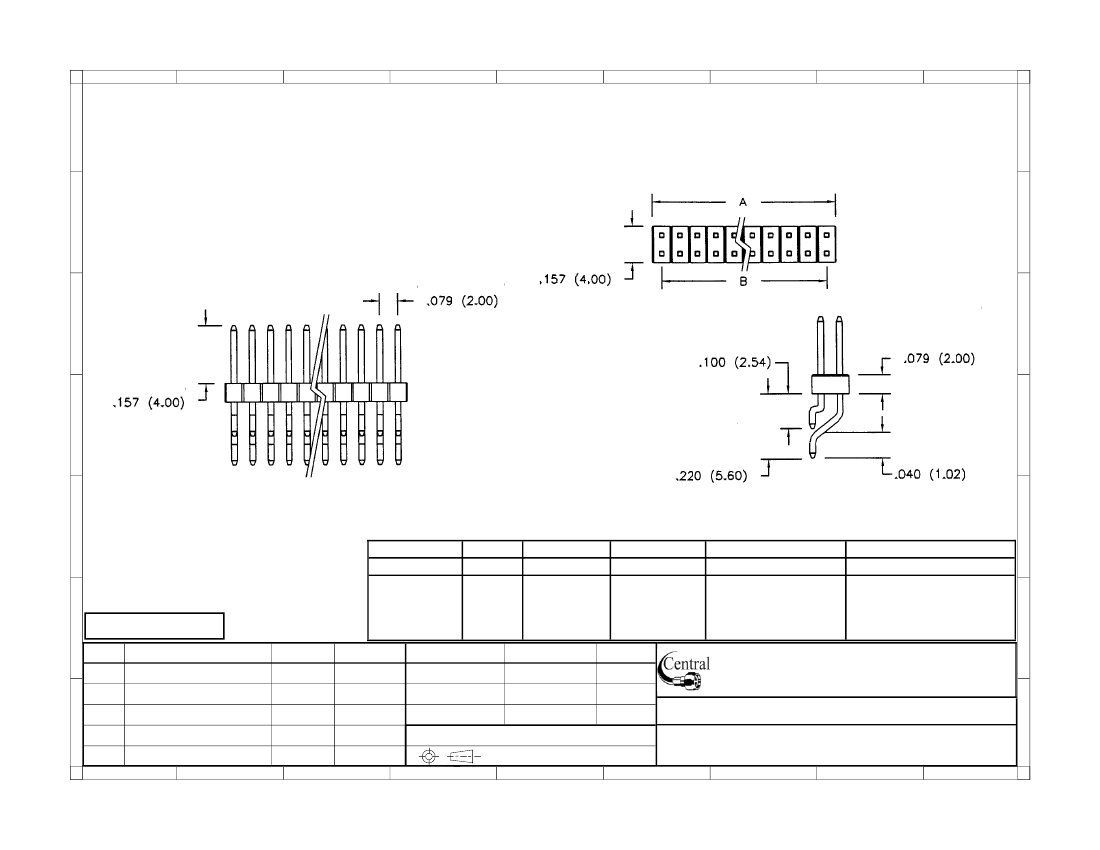

SPECIFICATIONS

Current rating:

3 amps

Operating voltage:

250 VAC

Contact material:

Phosphor bronze

Contact plating:

Tin, gold or duplex

Contact resistance:

10 milliohms max.

Insulator material:

Nylon 6T, glass reinforced, UL94V-0

Insulator resistance:

1,000 megohms min

Withstanding:

1,000VAC for 1 min.

Operating temperature: -55˚C to +125˚C

Processing temperature: 230°C/60 sec.

A

B

C

D

E

Series

Rows

Mounting

BPH

X

RASM

2mm pin header 1=1 row Right angle

2=2 rows surface mount

F

Contacts

Cont. length

XX

Single row=1-40 SD=Standard

Dual row=2-80 CSL=Customer specified

Plating

XX

TN=Tin

GDXX=Gold

SGXX=Duplex

XX=Flash if blank; 15, 30, 50µ”

RoHS compliant

Rev.

Description

A RoHS

B Spec

Date

Approved

09/23/05 Tom

10/04/05 Tom

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

F

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

BPH-2-RASM-XX-XX-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Pin header, 2mm pitch, right angle, surface mount

G

BPH-2-RASM-22-SD-SG50 Related Products

	BPH-2-RASM-22-SD-SG50	BPH-2-RASM-64-SD-SG15	BPH-2-RASM-22-SD-GD15	BPH-2-RASM-22-SD-GD30	BPH-2-RASM-22-SD-GD50	BPH-2-RASM-22-SD-SG15	BPH-2-RASM-22-SD-SG30
Description	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
body length	0.866 inch	2.52 inch	0.866 inch	0.866 inch	0.866 inch	0.866 inch	0.866 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	50u inch	15u inch	15u inch	30u inch	50u inch	15u inch	30u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	22	64	22	22	22	22	22
Objectid	1166982505	-	1166982499	1166982500	1166982501	1166982503	1166982504
ECCN code	-	-	EAR99	EAR99	EAR99	-	EAR99
