C3PH-2-E-RA-46-SD-SG datasheet, PDF

Datasheet> All Categories > The connector> The connector> C3PH-2-E-RA-46-SD-SG

C3PH-2-E-RA-46-SD-SG: DescriptionBoard Connector, 46 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size212KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

C3PH-2-E-RA-46-SD-SG Overview

Board Connector, 46 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle

C3PH-2-E-RA-46-SD-SG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166990691
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.134 inch
body length	1.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	46

Preview

Download Datasheet

View All

Pos.

Dimensions

1.27 2.54

2.54 3.81

3.81 5.08

5.08 6.35

6.35 7.62

7.62 8.89

8.89 10.16

10.16 11.43

11.43 12.70

12.70 13.97

13.97 15.24

15.24 16.51

16.51 17.78

17.78 19.05

19.05 20.32

20.32 21.59

21.59 22.86

22.86 24.13

24.13 25.40

25.40 26.67

26.67 27.94

27.94 29.21

29.21 30.48

30.48 31.75

31.75 33.02

33.02 34.29

34.29 35.56

35.56 36.83

36.83 38.10

38.10 39.37

39.37 40.64

40.64 41.91

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator resistance:

Dielectric withstanding:

Operating temperature:

1 amp

Copper alloy

Tin or gold

20 milliohms max.

Polyester Nylon-6T, UL94V-0

1,000 megohms min.

300VAC for 1 min.

-40˚C to +105˚C

E = Overall pin length

Series

C3PH

No. of Rows

Height H (mm)

Type

No. of Pins

Pin Length

Recommended PCB Layout

Plating

RoHS compliant

Rev.

Description

Pin header, DIP 2=Dual rows [blank]=1.50

RA=Right angle

1-40 (single row)

type, .40mm

1=Single row B=1.00

ST=Straight

2-80 (double row)

square pins

C=1.70*

SM=Surface mount

D=2.00

E=2.54*

*Dual row only

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

03/23/07

03/23/07 Part No.:

SD=Standard (3.0mm SGXX=Duplex XX=Flash if

mating, 2.3mm tail)

GDXX=Gold

blank; 03, 05,

CS=Customer speci- TN=Tin

10, 15, 30µ”

fied pin length. See

diagram for A, C and

E dimensions

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Central Components Manufacturing

C3PH-2-X-RA-XX-XX-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

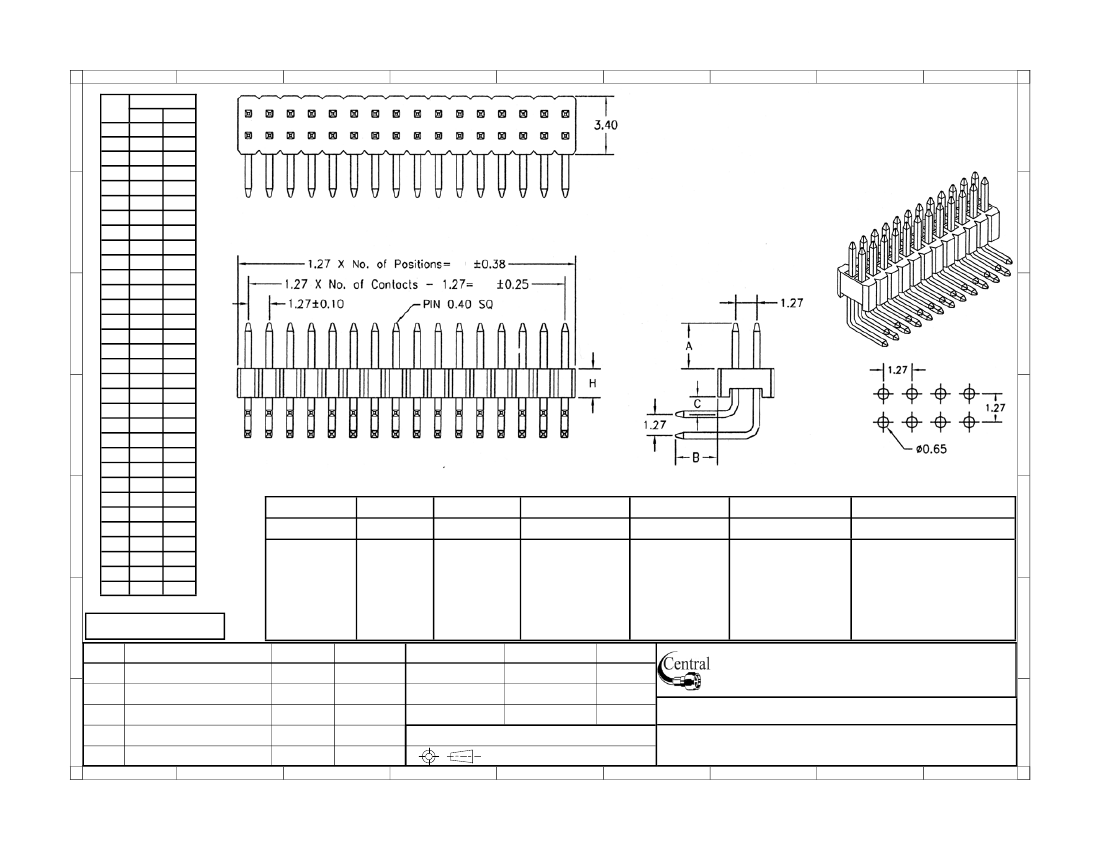

Description: Pin header, .05”x.05” (1.27mm x 1.27mm) pitch, dual

row, right angle DIP type
