MJS-4T88-S1L0-96/DCF datasheet, PDF

Datasheet> All Categories > The connector> The connector> MJS-4T88-S1L0-96/DCF

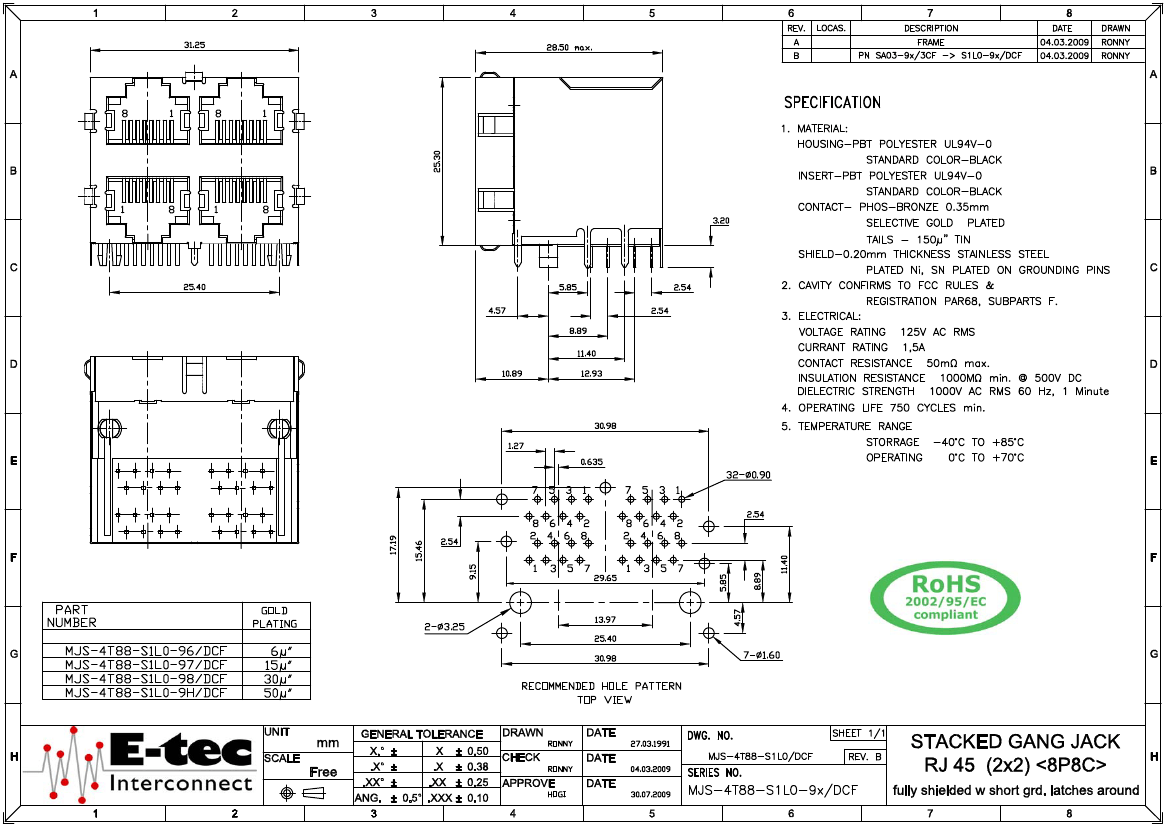

MJS-4T88-S1L0-96/DCF: DescriptionTelecom and Datacom Connector, 16+16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerE-tec Interconnect Ltd.

Download Datasheet Parametric Compare View All

MJS-4T88-S1L0-96/DCF Overview

Telecom and Datacom Connector, 16+16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

MJS-4T88-S1L0-96/DCF Parametric

Parameter Name	Attribute value
Objectid	304732415
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.996 inch
subject depth	1.122 inch
body length	1.23 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	50 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	750 Cycles
Insulation resistance	1000000000 Ω
Installation option 1	LOCKING
Installation option 2	LATCHING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
Maximum operating temperature	70 °C
Minimum operating temperature
PCB contact pattern	STAGGERED
Plating thickness	6u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

MJS-4T88-S1L0-96/DCF Related Products

	MJS-4T88-S1L0-96/DCF	MJS-4T88-S1L0-97/DCF	MJS-4T88-S1L0-98/DCF	MJS-4T88-S1L0-9H/DCF
Description	Telecom and Datacom Connector, 16+16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 16+16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 16+16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 16+16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Objectid	304732415	304732416	304732417	304732418
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.996 inch	0.996 inch	0.996 inch	0.996 inch
subject depth	1.122 inch	1.122 inch	1.122 inch	1.122 inch
body length	1.23 inch	1.23 inch	1.23 inch	1.23 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	50 mΩ	50 mΩ	50 mΩ	50 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V
Durability	750 Cycles	750 Cycles	750 Cycles	750 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	LATCHING	LATCHING	LATCHING	LATCHING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of ports	4	4	4	4
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	6u inch	15u inch	30u inch	50u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	32	32	32	32
