5700-1101 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5700-1101

5700-1101: DescriptionBoard Connector, 10 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size142KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

5700-1101 Overview

Board Connector, 10 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug

5700-1101 Parametric

Parameter Name	Attribute value
Objectid	304386989
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.295 inch
subject depth	0.472 inch
body length	1.004 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0P10
Contact point gender	FEMALE
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	5700
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	10

Preview

Download Datasheet

View All

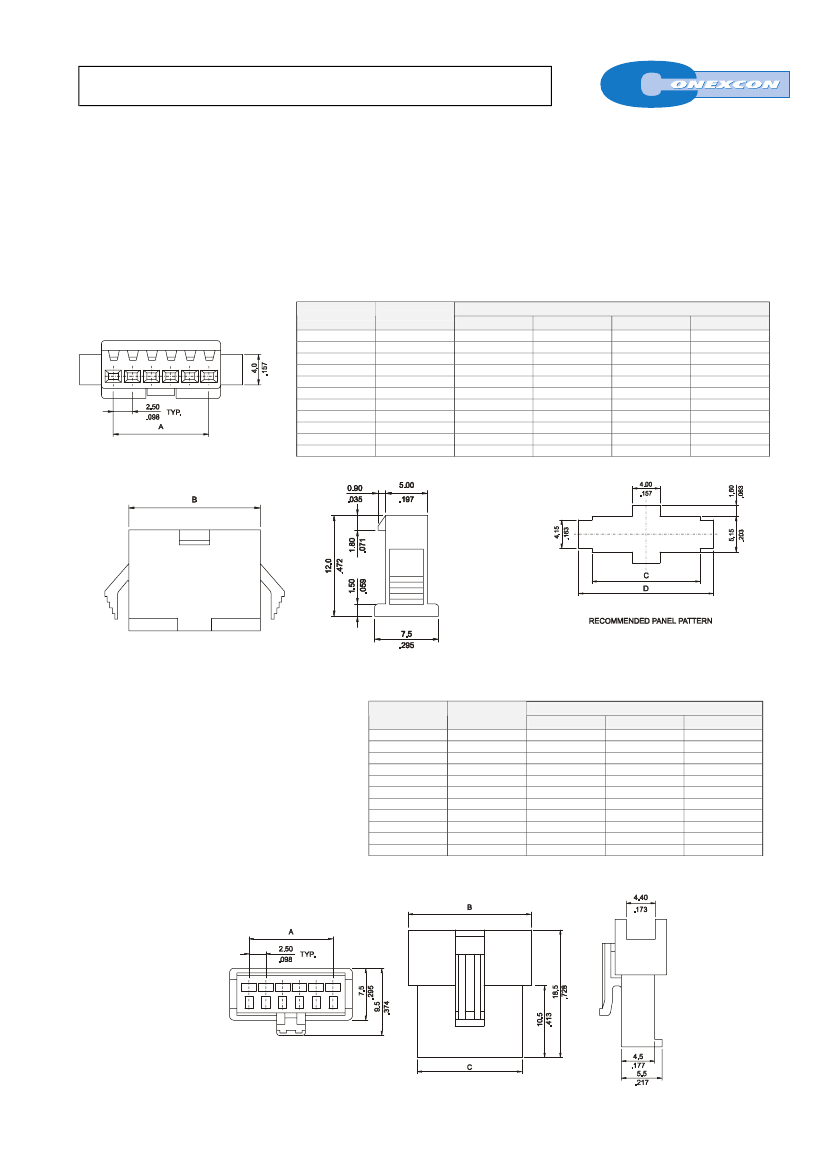

2.50mm MINI POWER CONNECTORS

SERIES.

5700 SERIES

For Panel and Free Hanging Mounting.

Features

Available in 2 through 12 circuits

Positive housing lock for secure mating retention

Integrally moulded mounting ears available

Material: Nylon 6/6 UL 94 V-0, Colour: Black

Accepts 5713 and 5714 series crimp terminal

For free hanging or panel mounted

2.50mm(.098") spacing in grid pattern

Ordering and Dimensional Information

Dimensional Information

FEMALE CONNECTOR

Circuit Size

Part Number

5700-1021

5700-1031

5700-1041

5700-1051

5700-1061

5700-1071

5700-1081

5700-1091

5700-1101

5700-1111

5700-1121

2,50(0,098)

5,00(0,197)

7,50(0,295)

10,00(0,394)

12,50(0,492)

15,00(0,591)

17,50(0,689)

20,00(0,787)

22,50(0,886)

25,00(0,984)

27,50(1,083)

Dimensions

5.80 (0.228)

8.30 (0.327)

10.80 (0.425)

13.30 (0.524)

15.80 (0.622)

18.30 (0.720)

20.80 (0.819)

23.30 (0.917)

25.80 (1.016)

28.30 (1.114)

30.80 (1.213)

9.80 (0.386)

12.30 (0.484)

14.80 (0.583)

17.30 (0.681)

19.80 (0.780)

22.30 (0.878)

24.80 (0.976)

27.30 (1.075)

29.80 (1.173)

32.30 (1.272)

34.80 (1.370)

5,50(0,217)

8,00(0,315)

10,50(0,413)

13,00(0,512)

15,50(0,610)

18,00(0,709)

20,50(0,807)

23,00(0,905)

25,50(1,004)

28,00(1,102)

30,50(1,201)

MALE CONNECTOR

Circuit Size

Part Number

5700-2021

5700-2031

5700-2041

5700-2051

5700-2061

5700-2071

5700-2081

5700-2091

5700-2101

5700-2111

5700-2121

Dimensions

2,50(0,098)

5,00(0,297)

7,50(0,295)

20,00(0,394)

22,50(0,492)

25,00(0,592)

27,50(0,689)

20,00(0,787)

22,50(0,886)

25,00(0,984)

27,50(2,083)

8,00(0,315)

10,50(0,413)

13,00(0,512)

15,50(0,610)

18,00(0,709)

20,50(0,807)

23,00(0,906)

25,50(1,004)

28,00(1,102)

30,50(1,201)

33,00(1,299)

5,50(0,216)

8,00(0,315)

10,50(0,413)

13,00(0,512)

15,50(0,610)

18,00(0,709)

20,50(0,807)

23,00(0,905)

25,50(1,004)

28,00(1,102)

30,50(1,201)

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

5700-1101 Related Products

	5700-1101	5700-1121	5700-1041	5700-1061
Description	Board Connector, 10 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug	Board Connector, 12 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug	Board Connector, 4 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug	Board Connector, 6 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	0.295 inch	0.295 inch	0.295 inch	0.295 inch
subject depth	0.472 inch	0.472 inch	0.472 inch	0.472 inch
body length	1.004 inch	1.201 inch	0.413 inch	0.61 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S0P10	S0P12	S0P4	S0P6
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	5700	5700	5700	5700
Mixed contacts	YES	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Number of connectors	ONE	ONE	ONE	ONE
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	10	12	4	6
Objectid	304386989	-	304386983	304386985
