8005-6251: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size203KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8005-6251 Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

8005-6251 Parametric

Parameter Name	Attribute value
Objectid	304385957
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.492 inch
subject depth	0.35 inch
body length	2.091 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8005
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

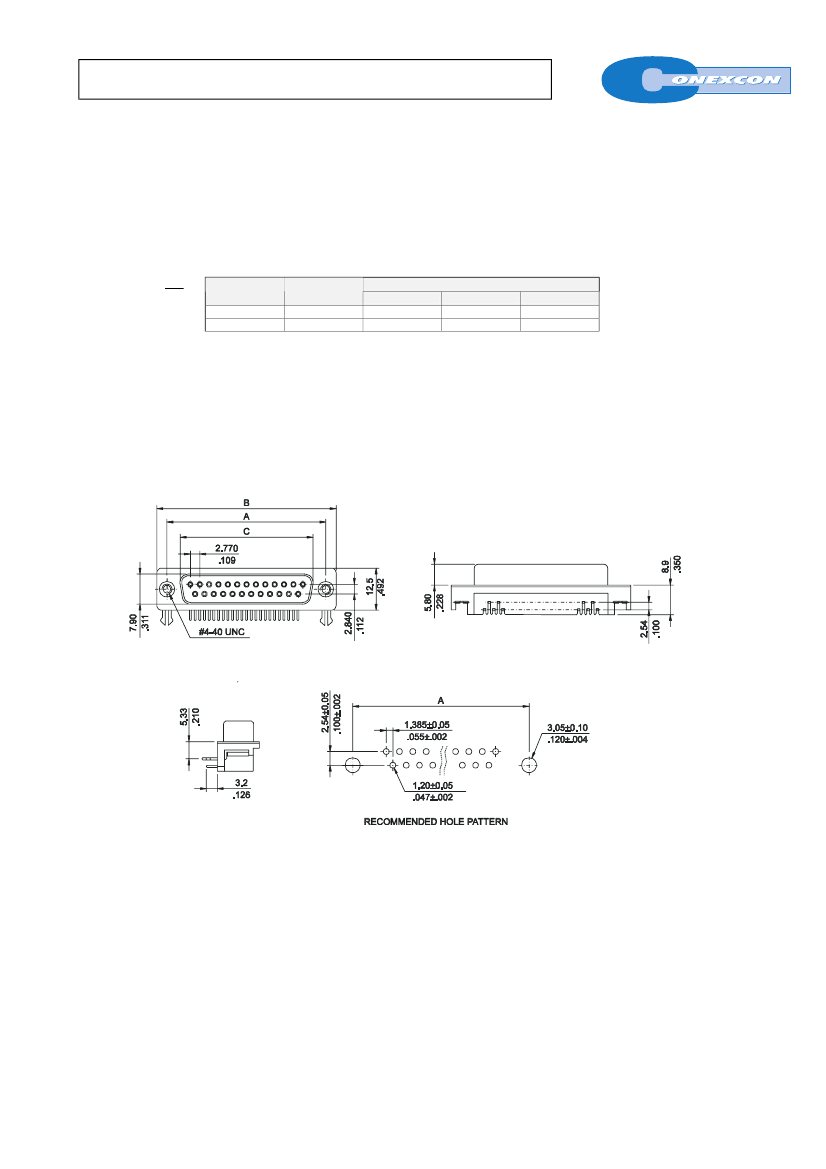

5.33mm RIGHT ANGLE D-SUB RECEPTACLE

SERIES.

8005 SERIES

For PCB Solder. Low Profile

Features

Shell: Steel, tin plated as standard

Standard connector C = 1 (Riveted ground hooks with

#4-40 UNC open)

For other options consult the Sales Office

Ordering and Dimensional Information

Circuit Size

Part Number

8005 –

T09C

8005 –

T25C

Dimensions

25.00 (0.984)

47.04 (1.852)

30.80 (1.213)

53.10 (2.091)

16.30 (0.642)

38.30 (1.508)

Available in 9 and 25 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Phosphor Bronze

Different plating options are available

Dimensional Information

Unit:

mm.

Inch.

T = Contact Plating

C = Hardware Options

T =

Gold flash over 50µ” nickel

T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

C =

Riveted ground hooks pre-loaded #4.40 UNC

Hexagonal screws

C =

Riveted ground hooks with #4.40 UNC open

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

8005-6251 Related Products

	8005-6251	8005-4251	8005-3251	8005-3091	8005-4091	8005-5091	8005-6091	8005-5251
Description	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch
subject depth	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch
body length	2.091 inch	2.091 inch	2.091 inch	1.213 inch	1.213 inch	1.213 inch	1.213 inch	2.091 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	8005	8005	8005	8005	8005	8005	8005	8005
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	30u inch	10u inch	FLASH inch	FLASH inch	10u inch	15u inch	30u inch	15u inch
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	25	25	9	9	9	9	25
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
