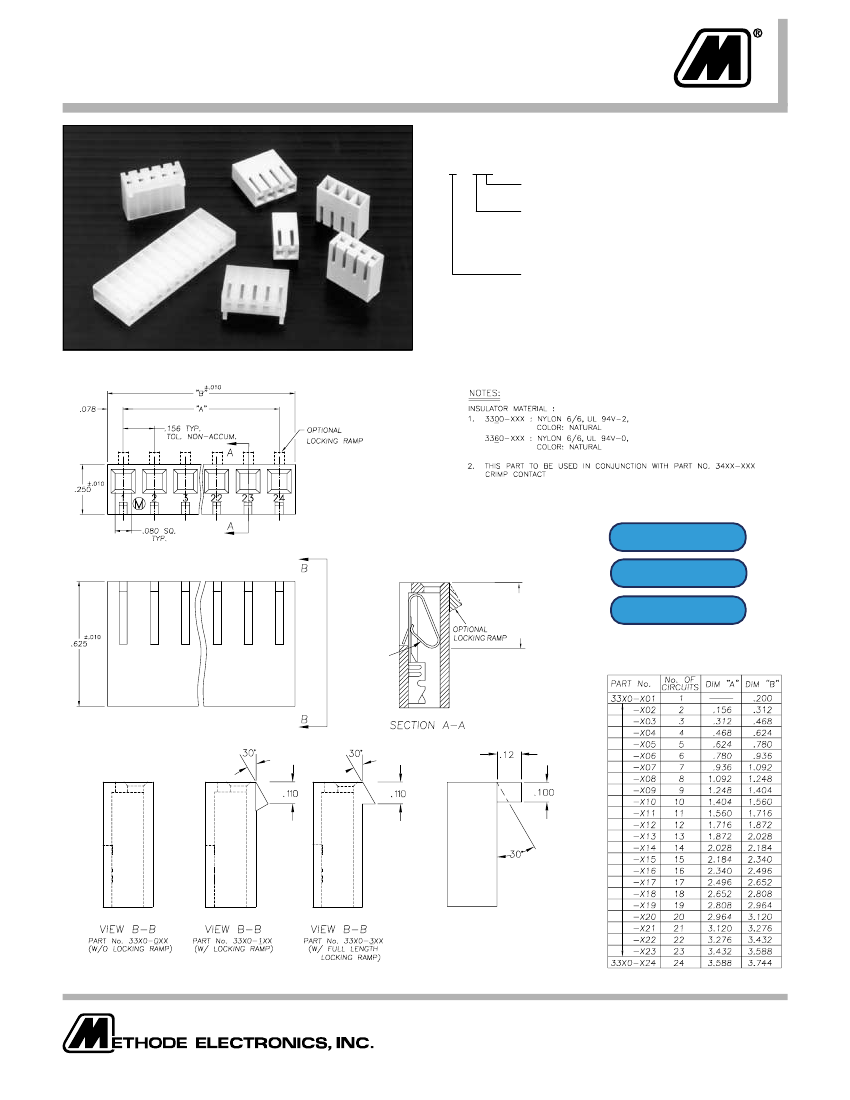

Board Connector, 21 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Natural Insulator, Receptacle
| Parameter Name | Attribute value |
| Objectid | 1943500595 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | COMPATIBLE CONTACTS: 3400-111; 3402-111; 3408-112; 3400-114; 3402-114; 340F-114 |
| body width | 0.25 inch |
| subject depth | 0.625 inch |
| body length | 3.276 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact point gender | FEMALE |
| contact mode | RECTANGULAR |
| Contact resistance | 5 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 8.896 N |
| Insulation resistance | 500000000000 Ω |
| Insulator color | NATURAL |
| insulator material | NYLON |
| MIL compliance | NO |
| Plug contact pitch | 0.156 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation type | CABLE |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Termination type | CRIMP |
| Total number of contacts | 21 |
| UL Flammability Code | 94V-2 |
| Maximum wire diameter | 18 AWG |
| Minimum wire diameter | 28 AWG |
| Evacuation force-minimum value | .556 N |
| 3300-121 | 3300-004 | 3300-021 | 3360-104 | 3300-008 | 3360-113 | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 21 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Natural Insulator, Receptacle | Board Connector, 4 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Natural Insulator, Receptacle | Board Connector, 21 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Natural Insulator, Receptacle | Board Connector, 4 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Natural Insulator, Receptacle | Board Connector, 8 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Natural Insulator, Receptacle | Board Connector, 13 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Natural Insulator, Receptacle |
| Objectid | 1943500595 | 1943500555 | 1943500572 | 1943500749 | 1943500559 | 1943500812 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | COMPATIBLE CONTACTS: 3400-111; 3402-111; 3408-112; 3400-114; 3402-114; 340F-114 | COMPATIBLE CONTACTS: 3400-111; 3402-111; 3408-112; 3400-114; 3402-114; 340F-114 | COMPATIBLE CONTACTS: 3400-111; 3402-111; 3408-112; 3400-114; 3402-114; 340F-114 | COMPATIBLE CONTACTS: 3400-111; 3402-111; 3408-112; 3400-114; 3402-114; 340F-114 | COMPATIBLE CONTACTS: 3400-111; 3402-111; 3408-112; 3400-114; 3402-114; 340F-114 | COMPATIBLE CONTACTS: 3400-111; 3402-111; 3408-112; 3400-114; 3402-114; 340F-114 |
| body width | 0.25 inch | 0.25 inch | 0.25 inch | 0.25 inch | 0.25 inch | 0.25 inch |
| subject depth | 0.625 inch | 0.625 inch | 0.625 inch | 0.625 inch | 0.625 inch | 0.625 inch |
| body length | 3.276 inch | 0.624 inch | 3.276 inch | 0.624 inch | 1.248 inch | 2.028 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| maximum insertion force | 8.896 N | 8.896 N | 8.896 N | 8.896 N | 8.896 N | 8.896 N |
| Insulation resistance | 500000000000 Ω | 500000000000 Ω | 500000000000 Ω | 500000000000 Ω | 500000000000 Ω | 500000000000 Ω |
| Insulator color | NATURAL | NATURAL | NATURAL | NATURAL | NATURAL | NATURAL |
| insulator material | NYLON | NYLON | NYLON | NYLON | NYLON | NYLON |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.156 inch | 0.156 inch | 0.156 inch | 0.156 inch | 0.156 inch | 0.156 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation type | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Termination type | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP |
| Total number of contacts | 21 | 4 | 21 | 4 | 8 | 13 |
| UL Flammability Code | 94V-2 | 94V-2 | 94V-2 | 94V-0 | 94V-2 | 94V-0 |
| Maximum wire diameter | 18 AWG | 18 AWG | 18 AWG | 18 AWG | 18 AWG | 18 AWG |
| Minimum wire diameter | 28 AWG | 28 AWG | 28 AWG | 28 AWG | 28 AWG | 28 AWG |
| Evacuation force-minimum value | .556 N | .556 N | .556 N | .556 N | .556 N | .556 N |
