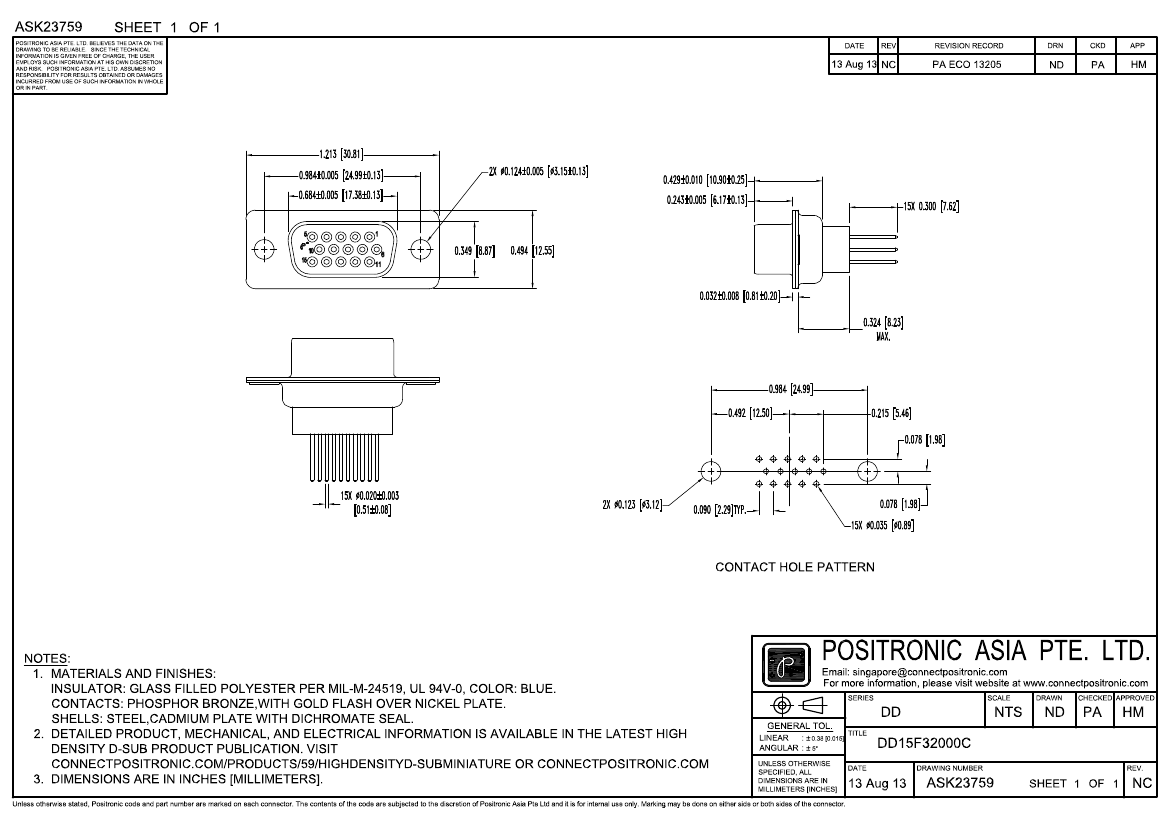

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Hole .112-.124,
| Parameter Name | Attribute value |
| Objectid | 1810221267 |
| Reach Compliance Code | unknown |
| Other features | STANDARD: MIL-DTL-24308; MIL-C-39029, POLARIZED |
| body width | 0.494 inch |
| subject depth | 0.356 inch |
| body length | 1.213 inch |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD (50) OVER COPPER/GOLD FLASH OVER NICKEL |
| Contact completed and terminated | GOLD (50) OVER COPPER/GOLD FLASH OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | STAGGERED |
| Contact resistance | 5 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLUE |
| insulator material | GLASS FILLED POLYESTER |
| MIL compliance | YES |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | HOLE .112-.124 |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD AND PANEL |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 1.9812 mm |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell surface | CADMIUM |
| Shell material | STEEL |
| Housing size | 1/E |
| Terminal length | 0.3 inch |
| Terminal pitch | 2.286 mm |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| UL Flammability Code | 94V-0 |
