VPR221SZ (Z-Foil)
Vishay Foil Resistors
Ultra High Precision Z-Foil Surface Mount Power Resistor
in TO-220 Configuration with TCR of ± 0.05 ppm/°C,
PCR of 4 ppm/W and Load Life Stability of ± 0.005 % (50 ppm)
FEATURES
•
Temperature Coefficient of Resistance (TCR):
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Any value at any tolerance available within resistance range
INTRODUCTION
The Z-Foil Technology provides a significant reduction of the
resistive component’s sensitivity to ambient temperature
variations (TCR) and applied power changes (PCR).
Model VPR221SZ is a 4 lead kelvin connected surface
mount device which provides high rated power, excellent
load life stability, low Temperature Coefficient (TCR) and low
Power Coefficient (PCR) - all in one resistor. ± 0.05 ppm/°C
Absolute TCR removes error due to temperature gradients.
By taking advantage of the overall stability and reliability of
Vishay Bulk Metal
®
Z-Foil resistors, designers can
significantly reduce circuit errors and greatly improve overall
circuit performances.
IM
PR
O
VE
D
Our Application Engineering Department is available to
advise and make recommendations. For non-standard
technical requirements and special applications, please
contact us.
•
•
•
•
•
•
•
•
•
•
•
± 0.05 ppm/°C typical (0 °C to + 60 °C)
Pb-free
± 0.2 ppm/°C typical (- 55 °C to + 125 °C,
Available
+ 25 °C Ref.) (see table 1)
RoHS*
COMPLIANT
Tolerance: to ± 0.01 %
Power Coefficient “ΔR due to self heating”:
4 ppm/W typical
Rated Power: 8 W chassis mounted (MIL-PRF-39009)
Load Life Stability: to ± 0.005 % at 25 °C for 2000 hours,
at 1.5 W
Resistance Range: 0.5
Ω
to 500
Ω
Electrostatic Discharge (ESD) above 25 000 Volts
Short Time Overload
≤
0.001 % (10 ppm)
Non Inductive, Non Capacitive Design
Rise Time: 1 ns without ringing
Current Noise < - 40 dB
Thermal EMF: 0.05 µV/°C typical
Voltage Coefficient < 0.1 ppm/V
Non Inductive: < 0.08 µH
Non Hot Spot Design
Terminal Finishes available: Lead (Pb)-free
Tin/Lead Alloy
Any value available within resistance range (e.g. 1K234)
Prototype samples available from 48 hours. For more
information, please contact foil@vishay.com
For better performances please contact us
Automatic Test Equipment (ATE)
High Precision Instrumentation
Electron Beam application
Current Sensing applications
I
Pulse applications
Military
I
Power amplifier
Power supplies
1
TABLE 1 - TCR AND TOLERANCE
TIGHTEST
RESISTANCE
TOLERANCE
± 0.05 %
± 0.02 %
RESISTANCE
RANGE (Ω)
0.5 to < 1
1 to < 10
TYPICAL TCR AND
MAX. SPREAD
1)
± 0.2 ppm/°C ± 2.8 ppm/°C
± 0.2 ppm/°C ± 2.3 ppm/°C
Percent of Rated Power
10 to 500
± 0.01 %
± 0.2 ppm/°C ± 1.8 ppm/°C
Notes
•
1. MIL-Range (- 55 °C to + 125 °C, + 25 °C Ref.)
Contact Applications Engineering for other available values
* Pb containing terminations are not RoHS compliant, exemptions may apply
www.vishay.com
1
For any questions, contact: foil@vishay.com
Document Number: 63127
Revision: 11-Jun-07
PR
O
DU
CT
APPLICATIONS
R
I
E
1
V
E
2
I
2

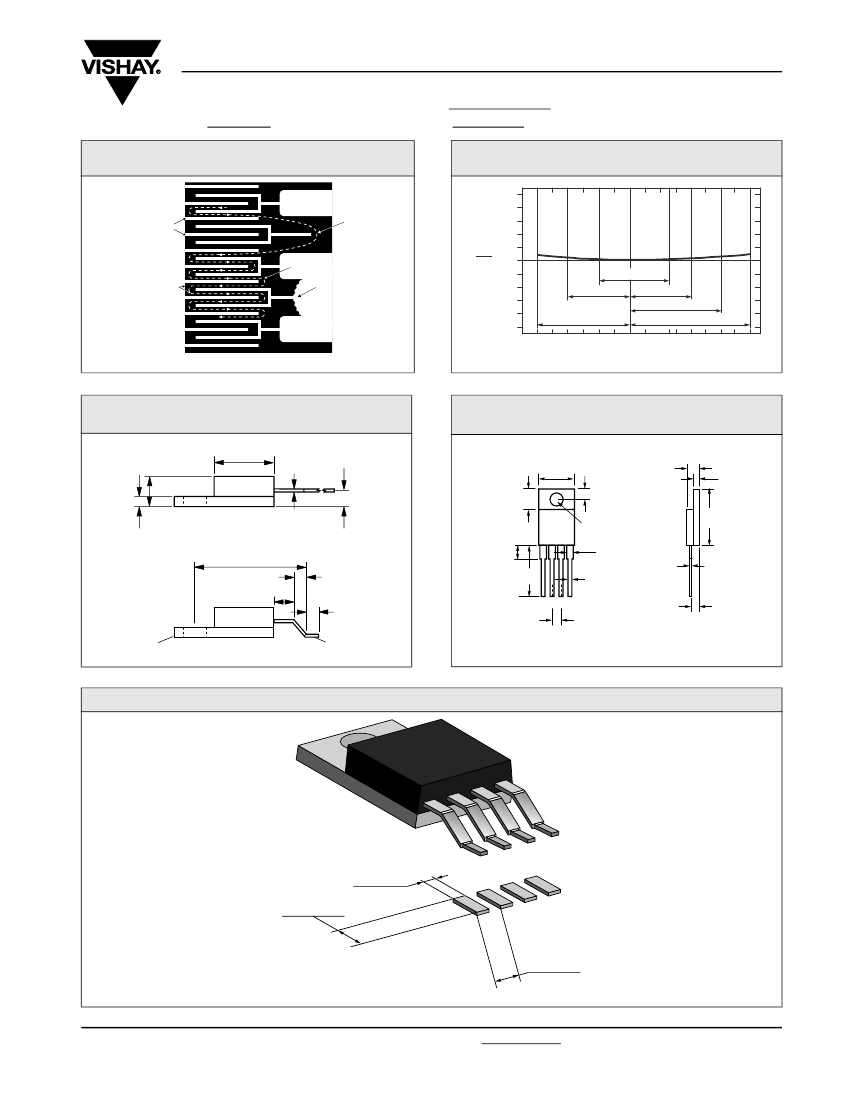

FIGURE 1- POWER DERATING CURVE
- 55 °C
100
75
50
25
0
- 75
- 50
- 25
0
25
50
75
100
125
150
Ambient Temperature (°C)
VPR221SZ (Z-Foil)
Ultra High Precision Z-Foil Surface Mount Power Resistor
Vishay Foil Resistors
in TO-220 Configuration with TCR of ± 0.05 ppm/°C, PCR
of 4 ppm/W and Load Life Stability of ± 0.005 % (50 ppm)
FIGURE 2 - TRIMMING TO VALUES
(Conceptual Illustration)
FIGURE 3 - TYPICAL TCR CURVE Z-FOIL
(for more details see table 1)
+ 500
+ 400
Mutual Inductance
Reduction due
to Change in
Current Direction
Current Path
After Trimming
Trimming Process
Removes this Material
from Shorting Strip Area
Changing Current Path
and Increasing
Resistance
Note:
Foil shown in
black,
etched spaces in
white
FIGURE 4 - VPR221SZ FORMING
DIMENSIONS
in inches (millimeters)
0.365 (9.27) Ref
0.015 ± 0.002
(0.38 ± 0.05)
0.150 ± 0.008
(3.81 ± 0.20)
0.050 ± 0.005
(1.27 ± 0.13)
Before Forming
0.078 ± 0.005
(1.98 ± 0.13)
0.695 ± 0.010
(17.65 ± 0.25)
0.110 (2.79) Ref
IM
PR
O
VE
D
0.090 (2.286) Ref
0.090 ± 0.010
(2.29 ± 0.25)
Heat Sink
After Forming
Flush with Heat Sink
Within ± 0.002 (± 0.05)
FIGURE 6 - LAND PATTERN DIMENSIONS
in inches (millimeters)
0.050 ± 0.010
(1.27 ± 0.25)
0.120 ± 0.010
(3.05 ± 0.25)
Document Number: 63127
Revision: 11-Jun-07
For any questions, contact: foil@vishay.com
PR
O
DU
CT
+ 100
ΔR
0
R
(ppm)
- 100
- 200
- 300
0.05 ppm/°C
- 0.1 ppm/°C
0.1 ppm/°C
0.14 ppm/°C
- 400
- 0.16 ppm/°C
- 25
0
0.2 ppm/°C
- 500
- 55
+ 25
+ 60 + 75
+ 100 + 125
Ambient Temperature (°C)
Interloop Capacitance
Reduction in Series
Current Path
Before Trimming
+ 300
+ 200
FIGURE 5 - VPR221SZ DIMENSIONS
in
inches (millimeters)
0.400 ± 0.010
(10.16 ± 0.25)
0.150 ± 0.008
(3.81 ± 0.20)
0.245 ± 0.010
(6.22 ± 0.25)
0.115 ± 0.005
(2.92 ± 0.13)
0.050 ± 0.005
(1.27 ± 0.13)
VISHAY
VPR221SZ
1R0 1
%
0101
0.141 ± 0.005 Dia
(3.58 ± 0.13)
0.615 Max
(15.62)
0.200 ± 0.030
(5.08 ± 0.76)
0.050 ± 0.005
(1.27 ± 0.13)
0.540 ± 0.040
(13.72 ± 1.02)
0.030 ± 0.002
(0.76 ± 0.05)
I
1
E
1
E
2
I
2
0.015 ± 0.002
(0.38 ± 0.05)
0.078 ± 0.005
(1.98 ± 0.13)
0.100 ± 0.005
(2.54 ± 0.13)
0.10 ± 0.005
(2.54 ± 0.12)
www.vishay.com
2
VPR221SZ (Z-Foil)
Vishay Foil Resistors
Ultra High Precision Z-Foil Surface Mount Power Resistor
in TO-220 Configuration with TCR of ± 0.05 ppm/°C, PCR
of 4 ppm/W and Load Life Stability of ± 0.005 % (50 ppm)
TABLE 2 - SPECIFICATIONS
Power Rating at + 25 °C
Current Noise
High Frequency Operation
Rise Time
Inductance
3)
(L)
Capacitance (C)
Voltage Coefficient
4)
Operating Temperature Range
Maximum Working Voltage
Thermal EMF
5)
Weight
8 W or 3 A
1)
on heat sink
2)
1.5 watts in free air
Further derating not necessary.
< 0.010 µV (rms)/V of applied voltage (- 40 dB)
0.2 ns at 1 W
0.1 µH maximum: 0.03 µH typical
1.0 pF maximum: 0.5 pF typical
< 0.1 ppm/V
- 55 °C to + 150 °C
300 V, Not to exceed power rating
0.15 µV/°C maximum (lead effect)
1.2 g maximum
Notes
1. Whichever is lower.
2. Heat sink chassis dimensions are requirements per MIL-R-39009/1B:
DIMENSIONS
L
W
H
T
inches
6.00
4.00
2.00
0.04
mm
152.4
101.6
50.8
1.0
IM
PR
O
VE
D
TEST OR CONDITION
Low temperature storage 24 hours at - 55 °C
Dielectric withstanding voltage 300 V AC at Atm
Dielectric withstanding voltage 200 V AC at Brm
Insulation resistance
3. Inductance (L) mainly due to the leads.
4. The resolution limit of existing test requirement (within the measurement capability of the equipment, “essentially zero”).
5. µV/°C relates to EMF due to lead temperature difference.
TABLE 3 - PERFORMANCE SPECIFICATIONS
1)
MIL-PRF 39009
MIL-PRF 39009
TYPICAL
ΔR
± 0.001 % (10 ppm)
± 0.001 % (10 ppm)
± 0.001 % (10 ppm)
MAXIMUM
ΔR
± 0.002 % (20 ppm)
± 0.002 % (20 ppm)
± 0.002 % (20 ppm)
> 10
4
MΩ
± 0.002 % (20 ppm)
± 0.001 % (10 ppm)
± 0.005 % (50 ppm)
± 0.001 % (10 ppm)
± 0.005 % (50 ppm)
± 0.005 % (50 ppm)
± 0.005 % (50 ppm)
± 0.008 % (80 ppm)
± 0.002 % (20 ppm)
± 0.015 % (150 ppm)
± 0.002 % (20 ppm)
± 0.015 % (150 ppm)
± 0.015 % (150 ppm)
± 0.01 % (100 ppm)
± 0.3 % + 0.01
Ω
Low temperature operation
Short time overload 5 x rated power for 5 seconds (in air)
Moisture resistance + 65 °C to - 10 °C, 90 to 98 Rh, 10 days
Terminal Strength
Load life 8 W at + 25 °C, 2000 hours with heat sink
Load life 1.5 W at + 25 °C for 2000 hours in free air
High temperature exposure + 150 °C
Note
1. Measurement error ± 0.001 %
www.vishay.com
3
For any questions, contact: foil@vishay.com
PR
O
DU
CT
± 0.2 % + 0.01
Ω
± 0.2 % + 0.01
Ω
> 10
4
MΩ
± 0.3 % + 0.01
Ω
± 0.3 % + 0.01
Ω
± 0.5 % + 0.01
Ω
± 0.2 % + 0.01
Ω
± 1.0 % + 0.01
Ω
± 1.0 % + 0.01
Ω
± 1.0 % + 0.05
Ω
Document Number: 63127
Revision: 11-Jun-07
VPR221SZ (Z-Foil)
Ultra High Precision Z-Foil Surface Mount Power Resistor
Vishay Foil Resistors
in TO-220 Configuration with TCR of ± 0.05 ppm/°C, PCR
of 4 ppm/W and Load Life Stability of ± 0.005 % (50 ppm)
TABLE 4 - GLOBAL PART NUMBER INFORMATION
NEW GLOBAL PART NUMBER: Y2123420R220T9L (preferred part number format)
DENOTES PRECISION
Y
VALUE
R
=
Ω
AER*
0
= Standard
9
= Lead (Pb)-free
1 - 999
= Custom
Y
2
1
2
3
4
2
PRODUCT CODE
2123
= VPR221SZ
RESISTANCE TOLERANCE
T
= ± 0.01 %
Q
= ± 0.02 %
A
= ± 0.05 %
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
= ± 1.0 %
FOR EXAMPLE: ABOVE GLOBAL ORDER Y2123 420R220 T 9 L:
TYPE: VPR221SZ
VALUE: 420.22
Ω
ABSOLUTE TOLERANCE: ± 0.01 %
TERMINATION: Lead (Pb)-free
PACKAGING: Bulk
HISTORICAL PART NUMBER: VPR221SZ T 420R22 TCR0.2 T B (will continue to be used)
VPR221SZ
MODEL
T
TERMINATION
T
= Lead (Pb)-free
none = Tin/Lead
420R22
OHMIC VALUE
420.22
Ω
TCR0.2
IM
PR
O
VE
D
Note
* For non-standard requests, please contact Application Engineering.
Document Number: 63127
Revision: 11-Jun-07
For any questions, contact: foil@vishay.com
PR
O
DU
CT
0
R
2
2
0
T
9
L
PACKAGING
L
= Bulk
T
B
TCR
CHARACTERISTIC
TCR0.2
ABSOLUTE
TOLERANCE
T
= ± 0.01 %
Q
= ± 0.02 %
A
= ± 0.05 %
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
= ± 1.0 %
PACKAGING
B
= Bulk
www.vishay.com
4
