11.2410.011 datasheet, PDF - EEWORLD Datasheet

11.2410.011: DescriptionRF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack; CategoryThe connector The connector; File Size171KB，2 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

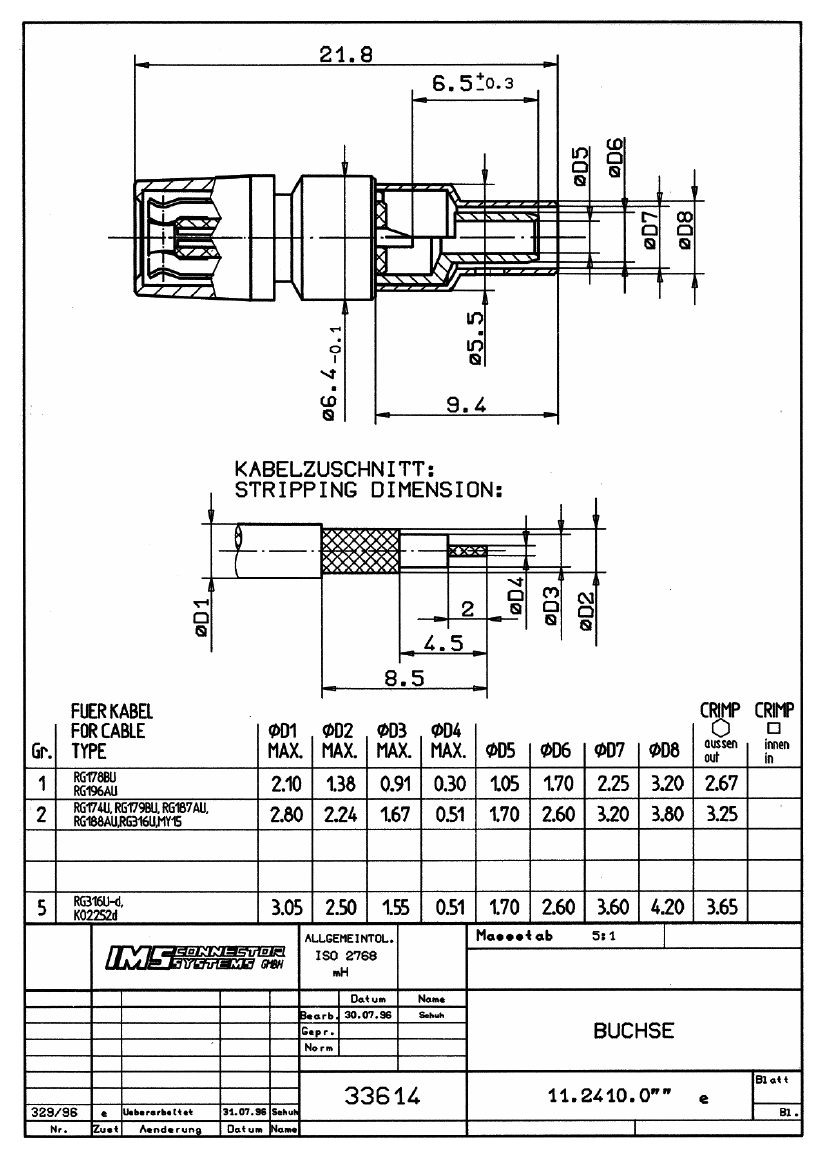

11.2410.011 Overview

RF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack

Parameter Name	Attribute value
Objectid	1732551534
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
subject depth	0.858 inch
Body diameter	0.252 inch
Body/casing type	JACK
Cable type	RG-178
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact point gender	FEMALE
Contact resistance	5 mΩ
Contact style	COAX
Durability	500 Cycles
maximum insertion force	24.9088 N
Insulation resistance	10000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	11.24
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	1.5 A
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.04
Evacuation force-minimum value	8.0064 N

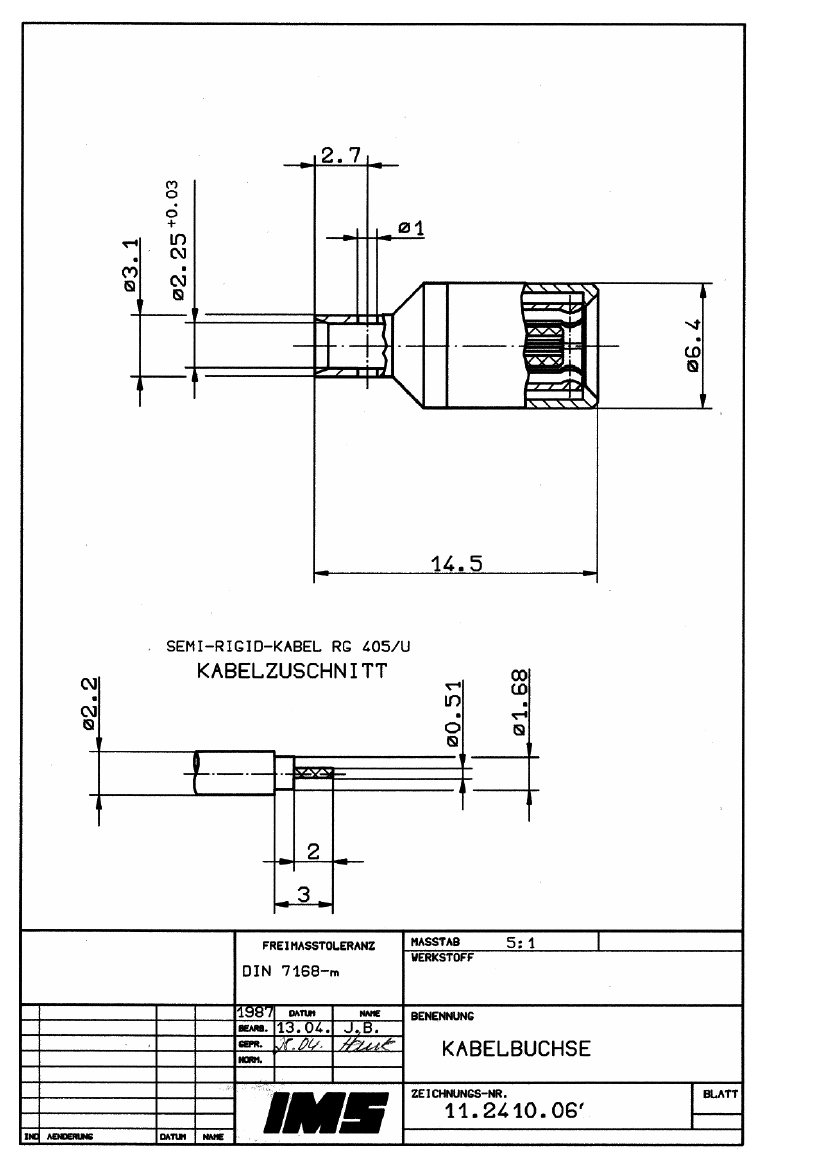

	11.2410.011	11.2410.061
Description	RF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack
Objectid	1732551534	1732551543
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
subject depth	0.858 inch	0.571 inch
Body diameter	0.252 inch	0.252 inch
Body/casing type	JACK	JACK
Cable type	RG-178	RG-405/U
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact point gender	FEMALE	FEMALE
Contact style	COAX	COAX
Manufacturer's serial number	11.24	11
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Number of ports	1	1
Termination type	CRIMP	CRIMP
Total number of contacts	1	1
