BF110-46-A-D

Description
Board Connector, 46 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking,
CategoryThe connector    The connector
File Size143KB,1 Pages
ManufacturerGlobal Connector Technology
Environmental Compliance
Download Datasheet Parametric View All

BF110-46-A-D Overview

Board Connector, 46 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking,

BF110-46-A-D Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid316066764
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.157 inch
subject depth0.379 inch
body length1.823 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD FLASH
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance1000000000 Ω
Manufacturer's serial numberBF110
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thicknessFLASH inch
polarization keyPOLARIZED HOUSING
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.091 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts46
1
2
3
4
5
6
7
8

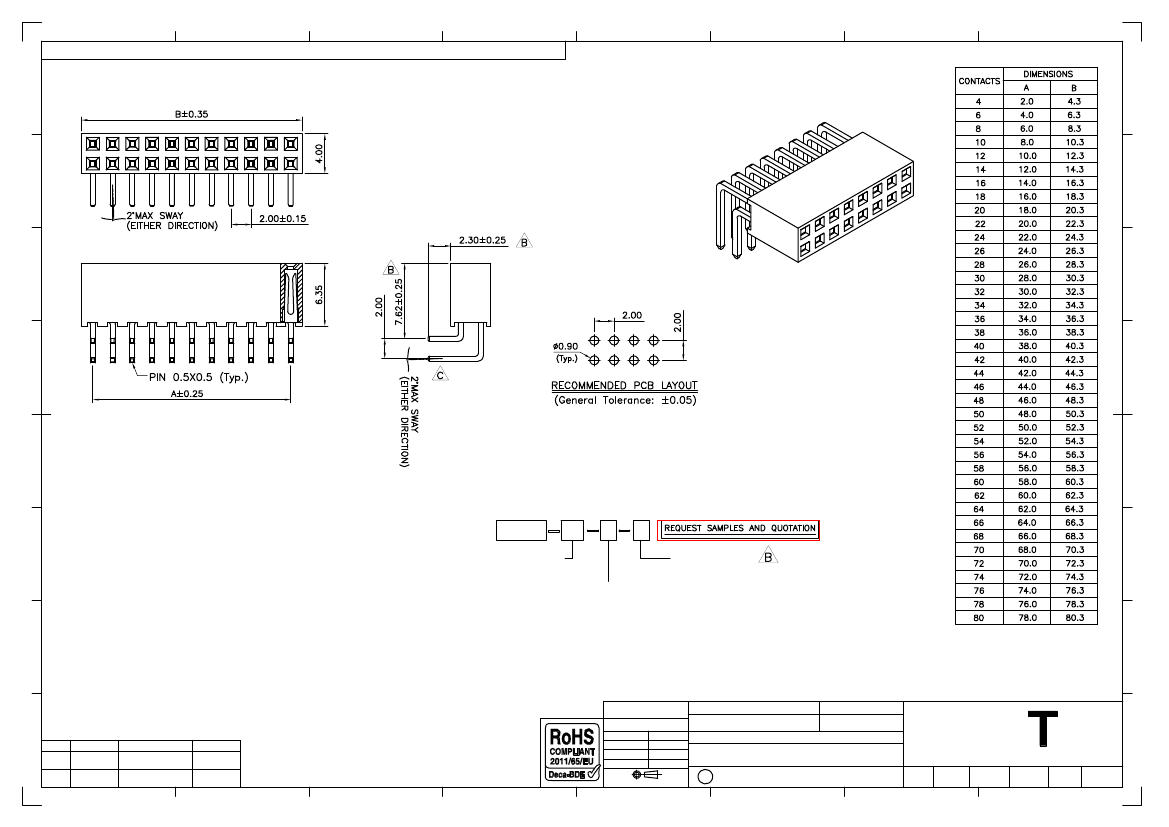

Global Connector Technology Ltd. - BF110: 2.0mm PITCH SOCKET, DUAL ROW, THROUGH HOLE, HORIZONTAL
A
A
B
B
C
C
D
D
E
E
Ordering Grid
BF110
F
SPECIFICATIONS
规格
CURRENT RATING
电流额定值
: 2.0 AMP
INSULATION RESISTANCE
绝缘电阻值
: 1000MΩ Min.
CONTACT RESISTANCE
接触电阻值
: 20mΩ Max.
DIELECTRIC WITHSTANDING
耐电压
: 500V AC
OPERATING TEMPERATURE
工½温度
: -40°C TO +105°C
CONTACT MATERIAL
端子物料
: PHOSPHOR BRONZE
INSULATOR MATERIAL
绝缘½物料
: POLYESTER
聚酯
, LCP, UL 94V-0
SOLDERING PROCESS
可焊性
:
IR REFLOW
回流焊
: 260°C for 10 sec.
WAVE
波峰焊
:250°C for 5-10 sec.
MANUAL SOLDER
人工焊接
: 350°C for 3-5 sec
MATES WITH
配套之母座
(SUBJECT TO PIN LENGTH
在端子长度适合的条件下
):
BF030
BF045
BF050
BF055
BF060
BF135
BF140
BF145
By
DETAIL
REV
DATE
SA
DRAWING
RELEASE
A
26/08/11
AJO
AJO
XX
X
X
Packing Options
D = Tube
(6-80 Contacts)
G = Box
(4 Contacts)
No. of Contacts
04 to 80
F
Contact Plating
A = Gold Flash All Over (Standard)
B = Selective Gold Flash Contact Area/Tin On Tail
C = Tin All Over
G
G
Tolerances
(Except as noted)
Part Number:-
Date:-
Dimensions in mm
X.°±5.0°
X.X ± 0.25
.X°±3.0°
X.XX ± 0.15 .XX°±2.0°
X.XXX ± 0.10 .XXX°±1.0°
Third Angle Projection
X. ± 0.30
BF110
Description:-
26 AUG 11
H
DIMENSION &
PIN LENGTH
PACKING CHANGES CORRECTED
C
B
22/03/13
11/02/13
2.0mm PITCH SOCKET, DUAL ROW,
THROUGH HOLE, HORIZONTAL
www.globalconnectortechnology.com
Scale
NTS
GC
Material
See Note
H
Sheet No.
E & OE
1/1
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
C
Drawn by
SA
1
2
3
4
5
6
7
8
