BF180-012-A-0150-1970-N-F datasheet, PDF

Datasheet> All Categories > The connector> The connector> BF180-012-A-0150-1970-N-F

BF180-012-A-0150-1970-N-F: DescriptionBoard Connector, 12 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size127KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF180-012-A-0150-1970-N-F Overview

Board Connector, 12 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug,

BF180-012-A-0150-1970-N-F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304448574
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.315 inch
subject depth	0.776 inch
body length	0.248 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BF180
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.059 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

Global Connector Technology Ltd. - 2.00mm PITCH ELEVATED SOCKET, QUAD ROW, THROUGH HOLE, VERTICAL

Ordering Grid

SPECIFICATIONS

规格

BF180 XXX X XXXX

XXXX

CURRENT RATING

电流额定值

: 3 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

Packing

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

D = Tube (Standard)

No. of Contacts

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

F = Tube with Film

Dimension E (1/100mm)

08 to 160

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

G = Plastic Box

(Stacking Height)

CONTACT MATERIAL

端子物料

: PHOSPHOR BRONZE

Standard - 19.70mm = 1970

INSULATOR MATERIAL

绝缘½物料

Contact Plating

Or specify Dimension E

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

A = Gold Flash All Over

e.g. 12.50mm = 1250

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

B = Selective Gold Flash Contact Area/

TOL.: ±0.2mm

SOLDERING PROCESS

可焊性

Tin On Tail

NYLON 6T (STANDARD

标准物料

) -

Insulator Material

C = Tin All Over

Dimension D (1/100mm)

IR REFLOW

回流焊

: 260°C for 10 sec.

N = Nylon 6T (Standard)

G = 10µ" Gold Contact Area/Tin On Tail

(Tail Length)

WAVE

波峰焊

: 230°C for 5-10 sec.

L = LCP

I = 30µ" Gold Contact Area/Tin On Tail

Standard - 1.50mm = 0150

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

Standard = Gold Flash All Over

Or specify Dimension D

LCP (OPTION

可选物料

) -

e.g. 2.50mm = 0250

IR REFLOW

回流焊

: 260°C for 10 sec.

TOL.: ±0.2mm

WAVE

波峰焊

: 250°C for 5-10 sec.

Tolerances

Part Number:-

Date:-

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

(Except as noted)

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

08 APR 07

Dimensions in mm

BF180

BF175

X.°±5°

X. ± 0.30

DETAIL

REV

DATE

DRAWING

RELEASE

08/4/07

RoHS

X.X ± 0.25

X.XX ± 0.15

X.XXX ± 0.10

.X°±3°

.XX°±2°

.XXX°±1°

Description:-

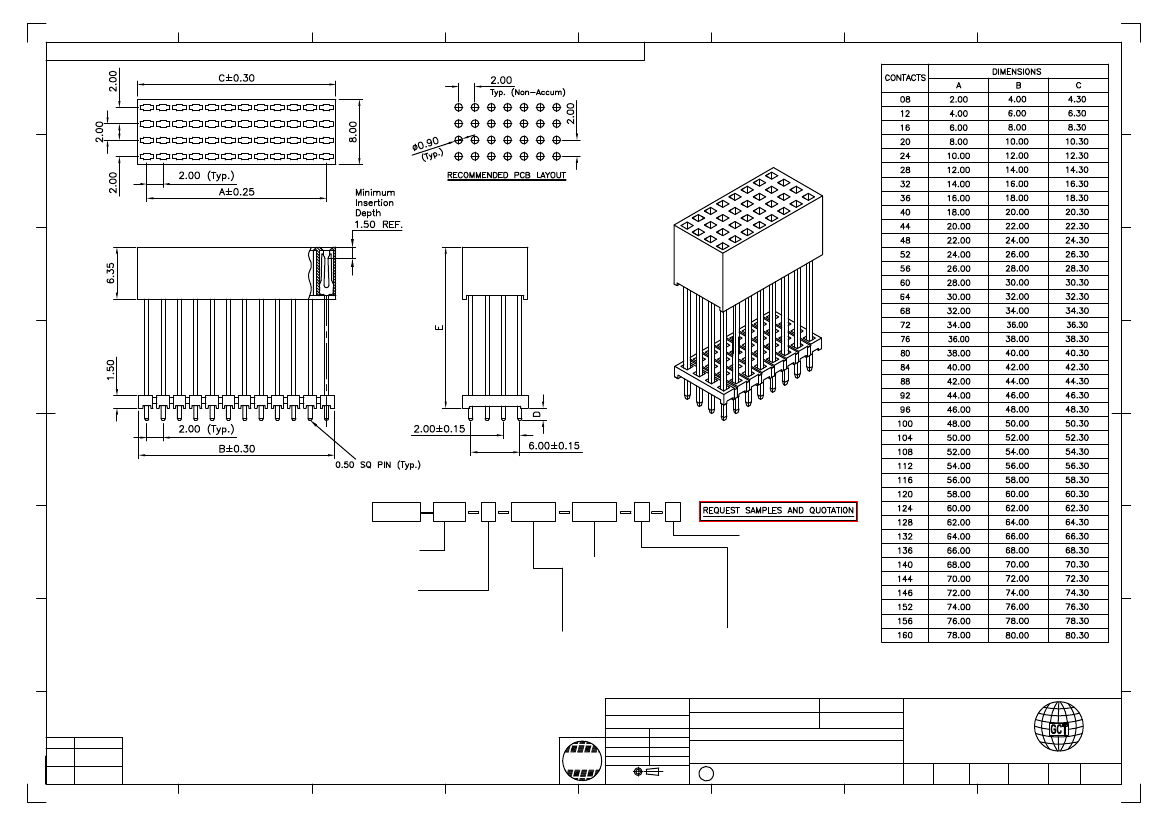

2.00mm PITCH ELEVATED SOCKET, QUAD ROW,

THROUGH HOLE, VERTICAL

Global

Connector

Technology

Scale

NTS

Sheet No.

E & OE

1/1

www.globalconnectortechnology.com

Material

See Note

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by
