(1/4)
Clamp Filters
For Cable
ZCAT Series
FEATURES
• Unique plastic case ensures simple, convenient installation and
includes a self-holding mechanism to prevent slippage on
cables.
• Ferrite core provides excellent absorption of high-frequency
EMC.
• Highly effective as countermeasure against common mode EMC
without adverse effect on signal quality.
• Large core size prevents saturation during large signal surges.

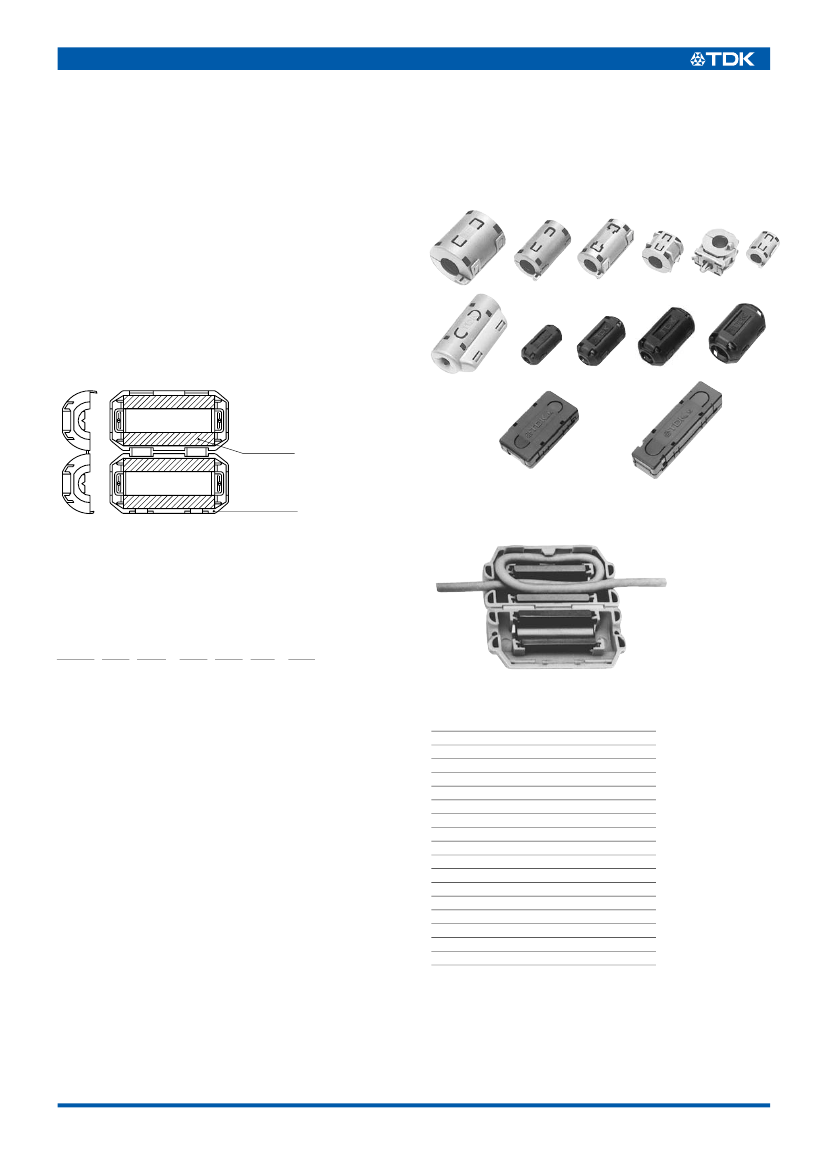

INTERNAL CONSTRUCTION
Conformity to RoHS Directive
Ferrite core
Plastic case
ZCAT-C TYPE
APPLICATIONS
Personal computers, word processors, monitors, hard disk drives,
digital telephones, audio devices, electronic musical instruments,
video games, copiers and facsimiles.
PRODUCT IDENTIFICATION
ZCAT
(1)
24
(2)
36 – 13
(3)
(4)
30
(5)
A – BK
(6)
(7)
(1) Series name
(2) Outer dimensions(mm)
(3) Length(mm)
(4) Inner dimensions(mm)
(5) Material code
(6) Fixed type code
A: Cable fixed
Hold the cable to secure it with the main body
AP:Cable fixed
(with lock mechanism)
B: Clamp fixed
C: Cable coil securing type
(Coil the cable one time within the case to fix it/with lock
mechanism.)
D: Flat cable type
DT: Flat cable type (Hold with adhesive pad.)
Non code: Band fixed
(Secure the cable and main body with the nylon belt.)
(7) Outer color code
BK: Black
Non code: Gray
PACKAGING STYLE AND QUANTITIES
Part No.
ZCAT3035
ZCAT2017-B
ZCAT2235
ZCAT2436
ZCAT2032
ZCAT2035
ZCAT2132
ZCAT2749
ZCAT1730
ZCAT2017
ZCAT1325
ZCAT1518
ZCAT1525
ZCAT3618-D
ZCAT4625-D
ZCAT6819-D
Quantity
200 pieces/box
350 pieces/box
400 pieces/box
400 pieces/box
420 pieces/box
480 pieces/box
480 pieces/box
400 pieces/box
840 pieces/box
640 pieces/box
1344 pieces/box
896 pieces/box
900 pieces/box
480 pieces/box
240 pieces/box
160 pieces/box
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
001-06 / 20060925 / e9a15_zcat.fm
(2/4)

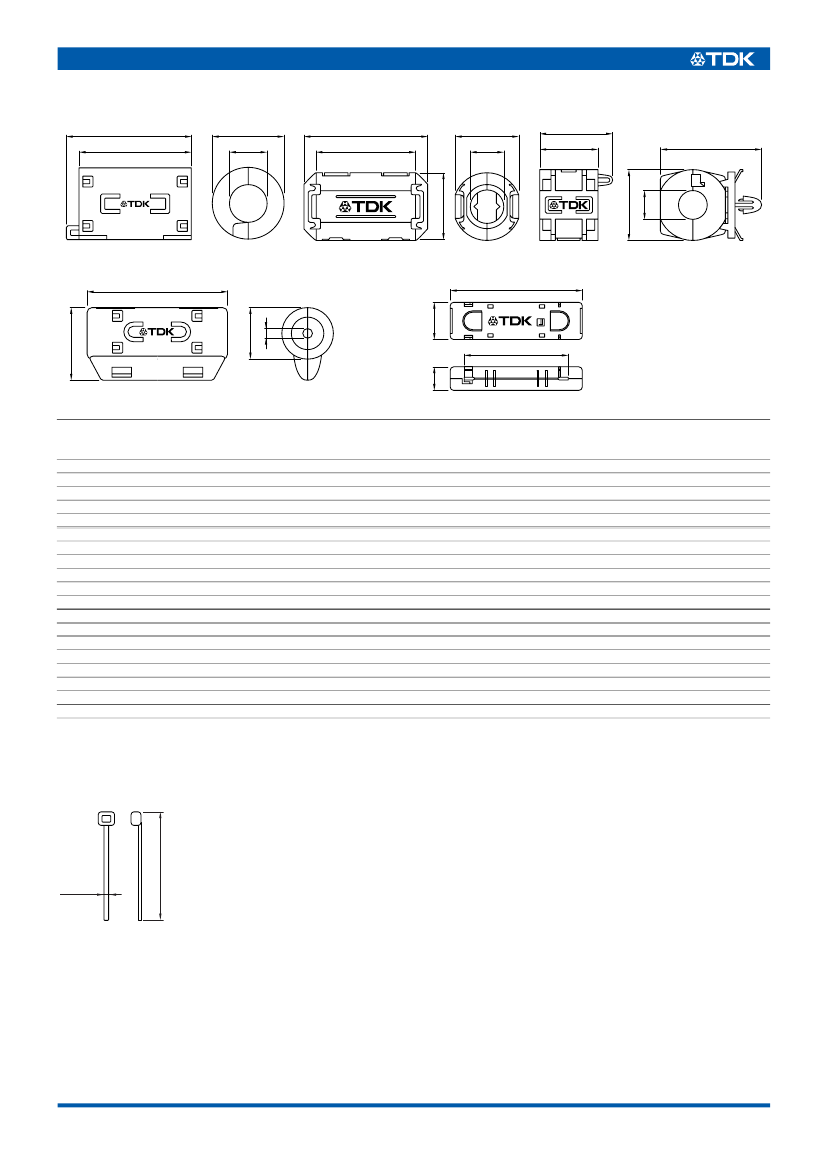

SHAPES AND DIMENSIONS
ZCAT TYPE
A
B
D
C
ZCAT-A, ZCAT-AP TYPE
A
B
E
øC
ZCAT-B TYPE
A
B
E
øD
A
C
ZCAT-C TYPE
A
ZCAT-D TYPE
D
B
C
B
Applicable cable
thickness:
1.3mm max.
D
øC
D
Dimensions in mm
Part No.
A
B
øC
øD
E
Applicable cable outer dia.
Weight(g)
6
11
22
22
63
7
7
12
22
27
29
12
26
15
15
32
32
58
58
Impedance
freq. characteristics
Fig.
1
2
3
4
5
4
4
6
3
7
8
2
9
10
10
11
11
11
11
ZCAT1518-0730(BK)
∗1
22±1
18±1
7±1
15±1
–
7max.
ZCAT2017-0930(-BK)
∗1
21±1
17±1
9±1
20±1
–
9max.
∗1
ZCAT2032-0930(-BK)
36±1
32±1
9±1
19.5±1
–
9max.
ZCAT2132-1130(-BK)
∗1
36±1
32±1
11±1
20.5±1
–
11max.
ZCAT3035-1330(-BK)
∗1
39±1
34±1
13±1
30±1
–
13max.
ZCAT1525-0430AP(-BK)
25±1
20±1
4±1
15±1
11.5±1
2.5 to 4(USB)
ZCAT1325-0530A(-BK)
25±1
20±1
5±1
12.8±1
11.2±1
3 to 5(USB)
ZCAT1730-0730A(-BK)
30±1
23±1
7±1
16.5±1
15±1
4 to 7(USB/IEEE1394)
ZCAT2035-0930A(-BK)
35±1
28±1
9±1
19.5±1
17.4±1
6 to 9
ZCAT2235-1030A(-BK)
35±1
28±1
10±1
21.5±1
20±1
8 to 10
ZCAT2436-1330A(-BK)
36±1
29±1
13±1
23.5±1
22±1
10 to 13
ZCAT2017-0930B(-BK)
21±1
17±1
9±1
20±1
28.5±1
9max.
ZCAT2749-0430C(-BK)
49±1
27±1
4.5±1
19.5±1
–
4.5max.
ZCAT3618-2630D(-BK)
33.5±1
17.5±1
26±1
11.5±1
–
For 20 wires flat cable
33.5±1
17.5±1
26±1
12.5±1
–
For 20 wires flat cable
ZCAT3618-2630DT(-BK)
∗2
ZCAT4625-3430D(-BK)
45.5±1
24.5±1
34±1
12±1
–
For 26 wires flat cable
ZCAT4625-3430DT(-BK)
∗2
45.5±1
24.5±1
34±1
13±1
–
For 26 wires flat cable
ZCAT6819-5230D(-BK)
67.5±1
18.5±1
52±1
16±1
–
For 40 wires flat cable
67.5±1
18.5±1
52±1
17±1
–
For 40 wires flat cable
ZCAT6819-5230DT(-BK)
∗2
∗1
These products are delivered with fixed band.
∗2
ZCAT-DT type: Adapted for flat cables and hold with adhesive pad.
• ZCAT-B type: Clamp fixed type installation hole diameter ø4.8 to 4.9mm, thickness of board 0.5 to 2mm.
• ZCAT-AP, ZCAT-C type: Once closed, the case will not be easily opened manually.
STRUCTURE OF THE MOUNTING BAND
(90mm)
(2.3mm)
Material: 66-nylon (natural color)
• All specifications are subject to change without notice.
001-06 / 20060925 / e9a15_zcat.fm
(3/4)
ELECTRICAL CHARACTERISTICS
Part No.
ZCAT1518-0730
ZCAT2017-0930
ZCAT2032-0930
ZCAT2132-1130
ZCAT3035-1330
ZCAT1525-0430AP
ZCAT1325-0530A
ZCAT1730-0730A
ZCAT2035-0930A
ZCAT2235-1030A
ZCAT2436-1330A
ZCAT2017-0930B
ZCAT2749-0430C
ZCAT3618-2603D(T)
ZCAT4625-3430D(T)
ZCAT6819-5230D(T)
Impedance (Ω)min.[50 to 500MHz]
35
35
80
50
100
50
50
50
80
80
50
35
80
30
35
35
TYPICAL EMC SUPPRESSION EFFECTS
RADIATION LEVEL vs. FREQUENCY CHARACTERISTICS
Radiation field intensity (dBµV/m)
80
Without EMC filter
60
40
20
0
30
100
Frequency (MHz)
300
Radiation field intensity (dBµV/m)
80
With EMC filter ZCAT2035-0930A
60
• Test conditions: R-X meter at unloaded condition, ø1mm solder plated
copper wire passes through.
40
20
0
30
100
Frequency (MHz)
300
TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
ZCAT1518-0730
ZCAT2017-0930
ZCAT2032-0930
ZCAT2035-0930A
1000
ZCAT1525-0430AP
ZCAT2132-1130
ZCAT1325-0530A
1000
1000
1000
Impedance(
Ω
)
Impedance(
Ω
)
Impedance(
Ω
)
100
100
100
Impedance(
Ω
)
10
100
Frequency (MHz)
1000
100
10
10
10
10
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
1
1
10
100
Frequency (MHz)
1000
Fig.1
Fig.2
Fig.3
Fig.4
ZCAT3035-1330
1000
ZCAT1730-0730A
1000
ZCAT2235-1030A
1000
ZCAT2436-1330A
1000
Impedance(
Ω
)
Impedance(
Ω
)
Impedance(
Ω
)
100
100
100
Impedance(
Ω
)
10
100
Frequency (MHz)
1000
100
10
10
10
10
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
1
1
10
100
Frequency (MHz)
1000
Fig.5
Fig.6
Fig.7
Fig.8
• All specifications are subject to change without notice.
001-06 / 20060925 / e9a15_zcat.fm
