ZP1-22-T

Description
I.D.C. Transition Plug
File Size74KB,2 Pages
ManufacturerYamaichi Electronics Co., Ltd.
Websitehttp://www.yamaichi.com/
Download Datasheet View All

ZP1-22-T Overview

I.D.C. Transition Plug

ZP1 Series
Specifications
Voltage Rating:
Current Rating:
Operating Temperature Range:
Withstanding Voltage:
Insulation Resistance:
I.D.C. Transition Plug
Part Number
(Details)
150V AC
1.0A
–40°C to +105°C
500V for 1 minute
1,000MΩ min. at 500V DC
ZP1
Series No.
- ** - T
No. of Contact Pins
(10 to 50)
Plating:
T = Tin
Materials and Finish
Housing:
PBT, UL 94V-0 listed
Terminals:
Phosphor Bronze
Contact Plating: Tin plated
RoHS
Applicable Cables
Features
Pin count from 8 to 60
AWG 28 stranded wire, 1.00mm pitch
(e.g. DK**-1.0*)

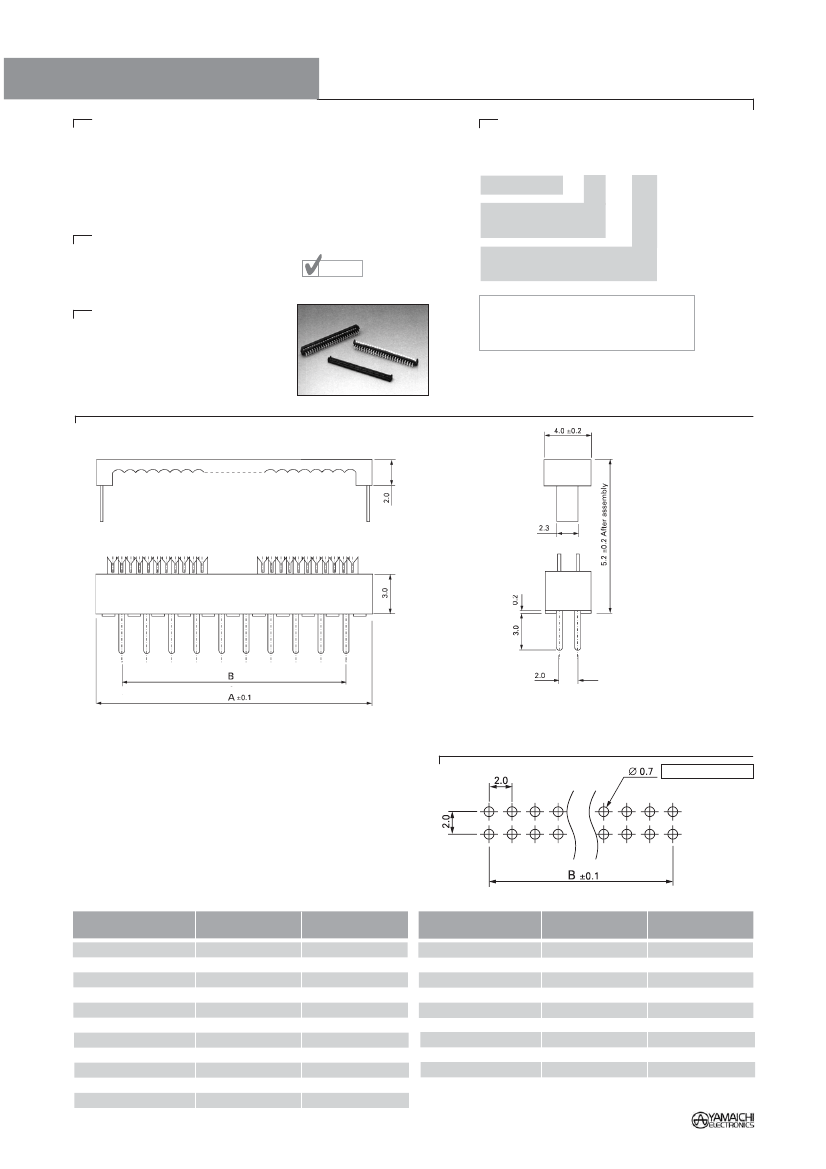

Outline Connector Dimensions
Recommended PCB Layout
Top View
Dimensional Information
Part Number
ZP1-08-T
ZP1-10-T
ZP1-12-T
ZP1-14-T
ZP1-16-T
ZP1-18-T
ZP1-20-T
ZP1-22-T
ZP1-24-T
ZP1-26-T
ZP1-28-T
Sockets and Connectors
Dim. A
12.16
14.16
16.16
18.16
20.16
22.16
24.16
26.16
28.16
30.16
32.16
Dim. B
8.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
Part Number
Dim. B
ZP1-30-T
ZP1-32-T
ZP1-34-T
ZP1-36-T
ZP1-40-T
ZP1-44-T
ZP1-50-T
ZP1-54-T
ZP1-56-T
ZP1-60-T
Dim. A
34.16
36.16
38.16
40.16
44.16
48.16
54.16
58.16
60.16
64.16
Dim. B
28.0
30.0
32.0
34.0
38.0
42.0
48.0
52.0
54.0
58.0
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
