Z-220-32FD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> Z-220-32FD

Z-220-32FD: DescriptionBoard Connector, 32 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

Z-220-32FD Overview

Board Connector, 32 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT

Z-220-32FD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1863306864
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

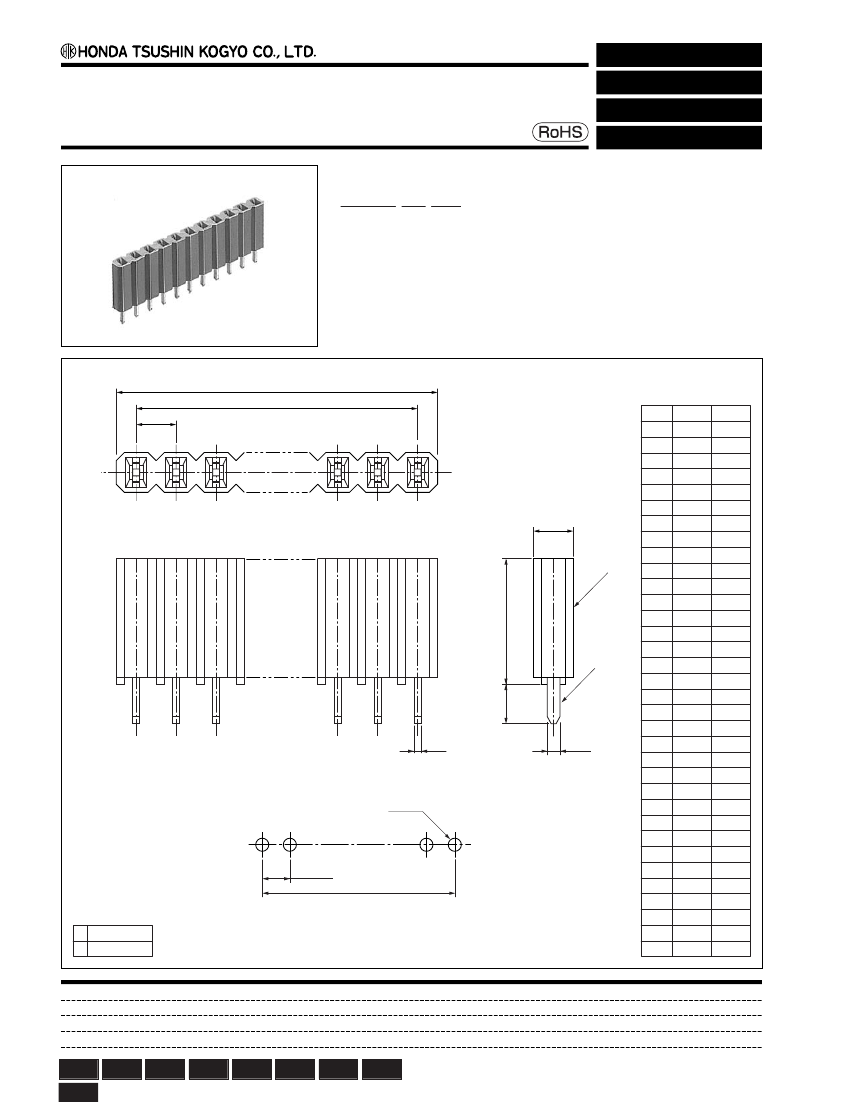

2.54 mm pitch connector

Straight through hole type female connector for PCB

Z-220-( )FD

●

Configuration of product Part No.

For PCB

Straight Through hole

Z-220- ( ) FD

➀

➁

➂

➀

Series name

➁

No. of contacts: 1–34

➂

Type of contact

FD: Straight through hole type, female

Contact plating: Gold plate

2.54

●

Dimensions

No. of

contacts

2.5

–

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

➀

➁

2.5

0.4

0.75

ø1

+ 0.06

–

2.54

+ 0.05

–

+ 0.1

–

●

Components

➀

Insulator

➁

Contact

Recommended PCB layout

Mating connectors:

FFC series male connector (Cross section of contact: 0.635 mm square, Length of contact: 5 mm)

FFC-( )T9AMEP1(B) or FFC-( )T19LAMEP1(B) male connector

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

Z-220-32FD Related Products

	Z-220-32FD	Z-220-8FD	Z-220-6FD	Z-220-7FD	Z-220-22FD
Description	Board Connector, 32 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 22 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Objectid	1863306864	1863306872	1863306870	1863306871	1863306853
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	32	8	6	7	22
ECCN code	EAR99	EAR99	-	EAR99	EAR99
