ZX74AHCT32N datasheet, PDF - EEWORLD Datasheet

ZX74AHCT32N: DescriptionOR Gate, CMOS, PDIP14; Categorylogic logic; File Size519KB，6 Pages; ManufacturerRadiation Semiconductor Corp

Download Datasheet Parametric Compare View All

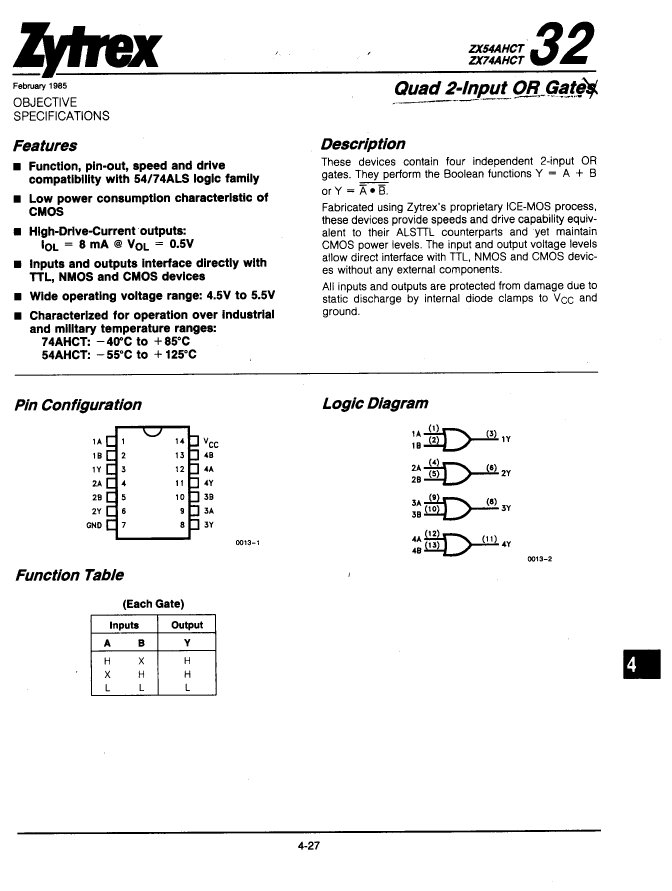

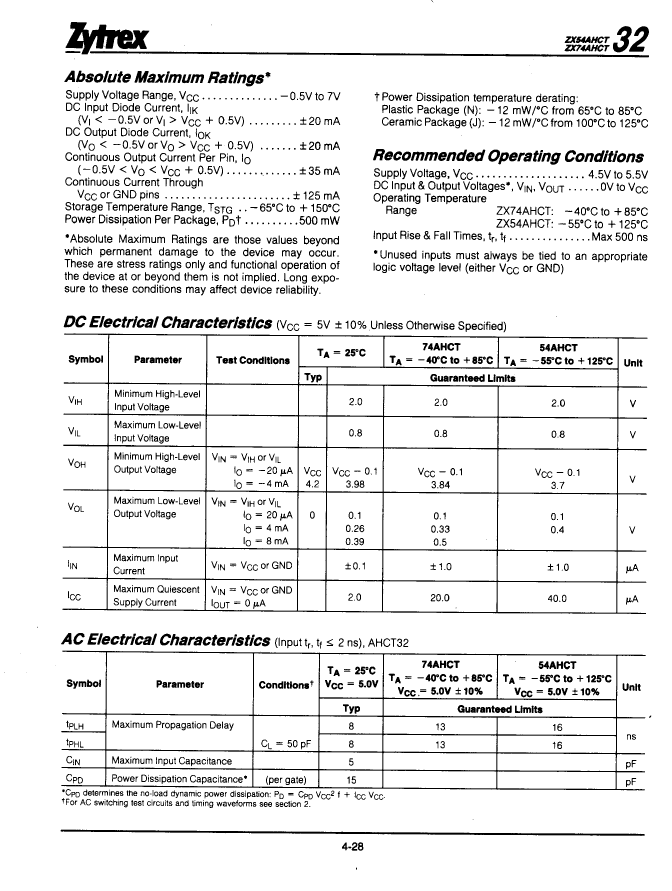

ZX74AHCT32N Overview

OR Gate, CMOS, PDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	100772129

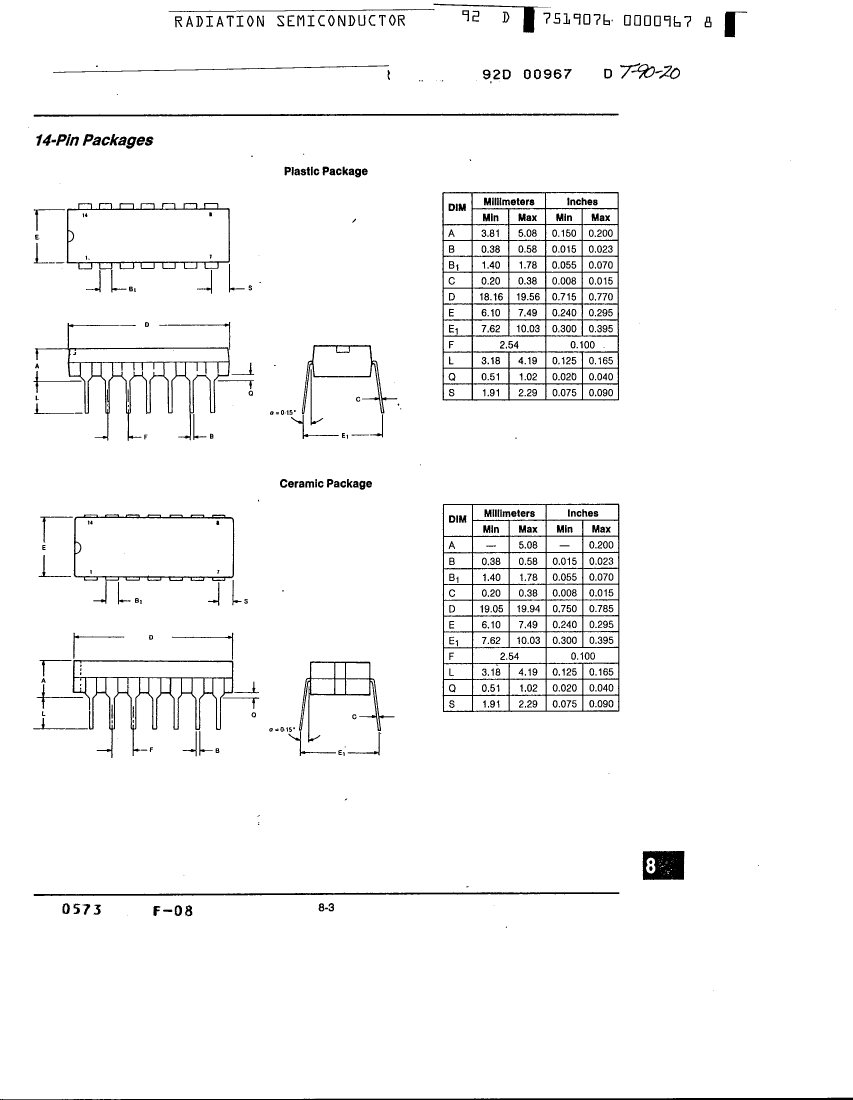

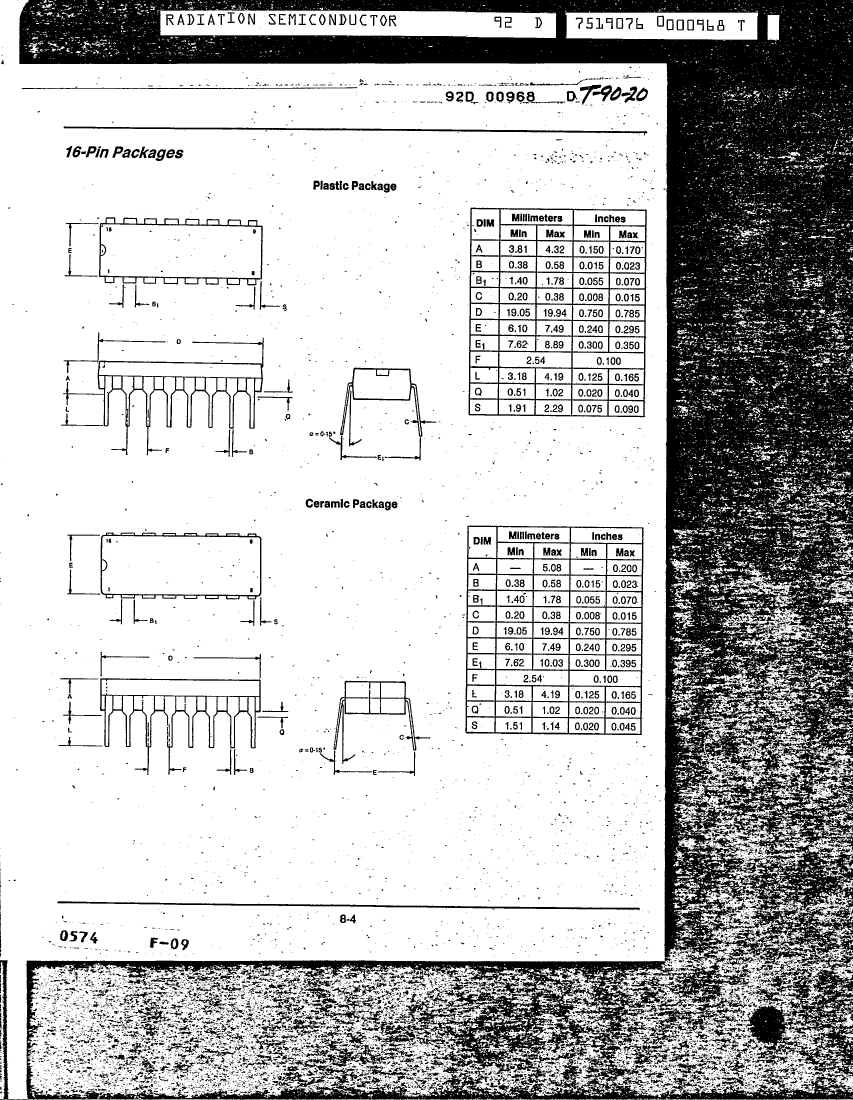

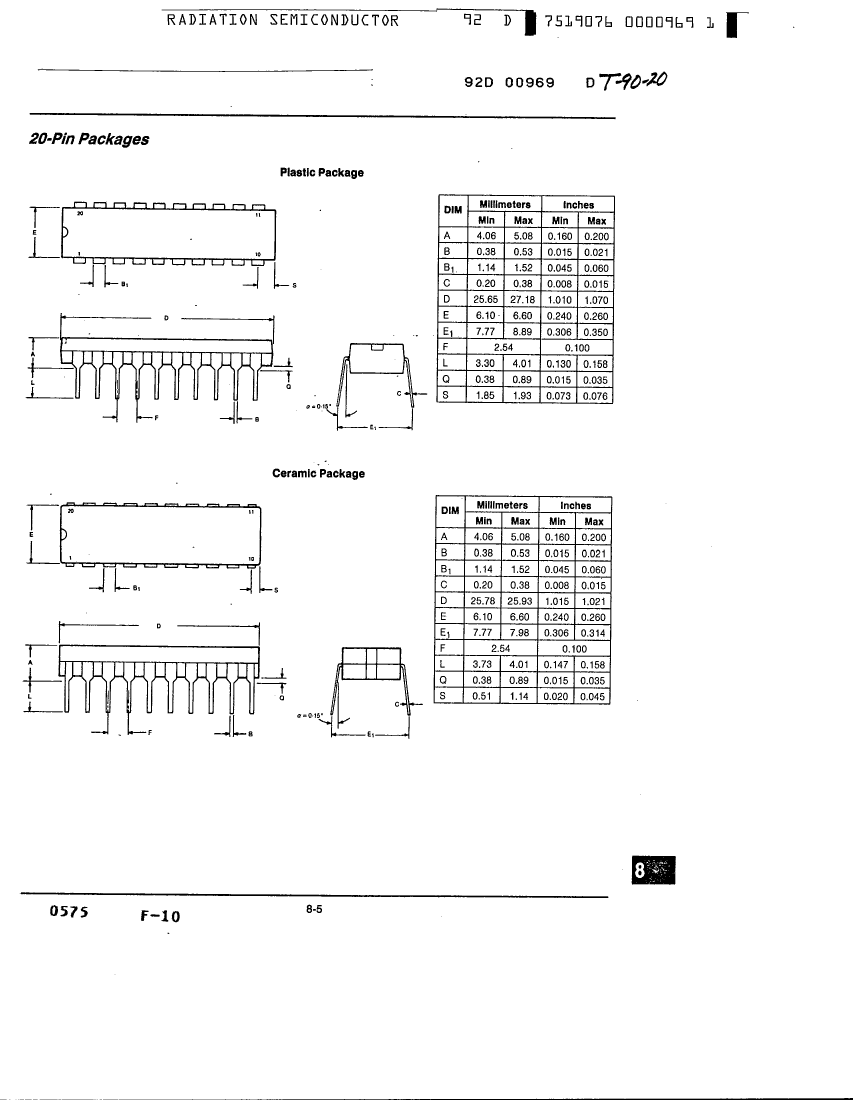

package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Logic integrated circuit type	OR GATE
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	ZX74AHCT32N	ZX74AHCT32J
Description	OR Gate, CMOS, PDIP14	OR Gate, CMOS, CDIP14
Is it Rohs certified?	incompatible	incompatible
Objectid	100772129	100772115
package instruction	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0
Logic integrated circuit type	OR GATE	OR GATE
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
