CMF08051K821%10PPM/KN-S datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CMF08051K821%10PPM/KN-S

CMF08051K821%10PPM/KN-S: DescriptionFixed Resistor, Thin Film, 0.05W, 1820ohm, 35V, 1% +/-Tol, 10ppm/Cel, 0805,; CategoryPassive components The resistor; File Size296KB，2 Pages; ManufacturerMicrotech GmbH Electronic; Environmental Compliance

Download Datasheet Parametric Compare View All

CMF08051K821%10PPM/KN-S Overview

Fixed Resistor, Thin Film, 0.05W, 1820ohm, 35V, 1% +/-Tol, 10ppm/Cel, 0805,

CMF08051K821%10PPM/KN-S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	299206884
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.65 mm
Package length	2.15 mm
Package form	SMT
Package width	1.4 mm
method of packing	BULK
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
resistance	1820 Ω
Resistor type	FIXED RESISTOR
size code	0805
surface mount	YES
technology	THIN FILM
Temperature Coefficient	10 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	150 V

Preview

Download Datasheet

View All

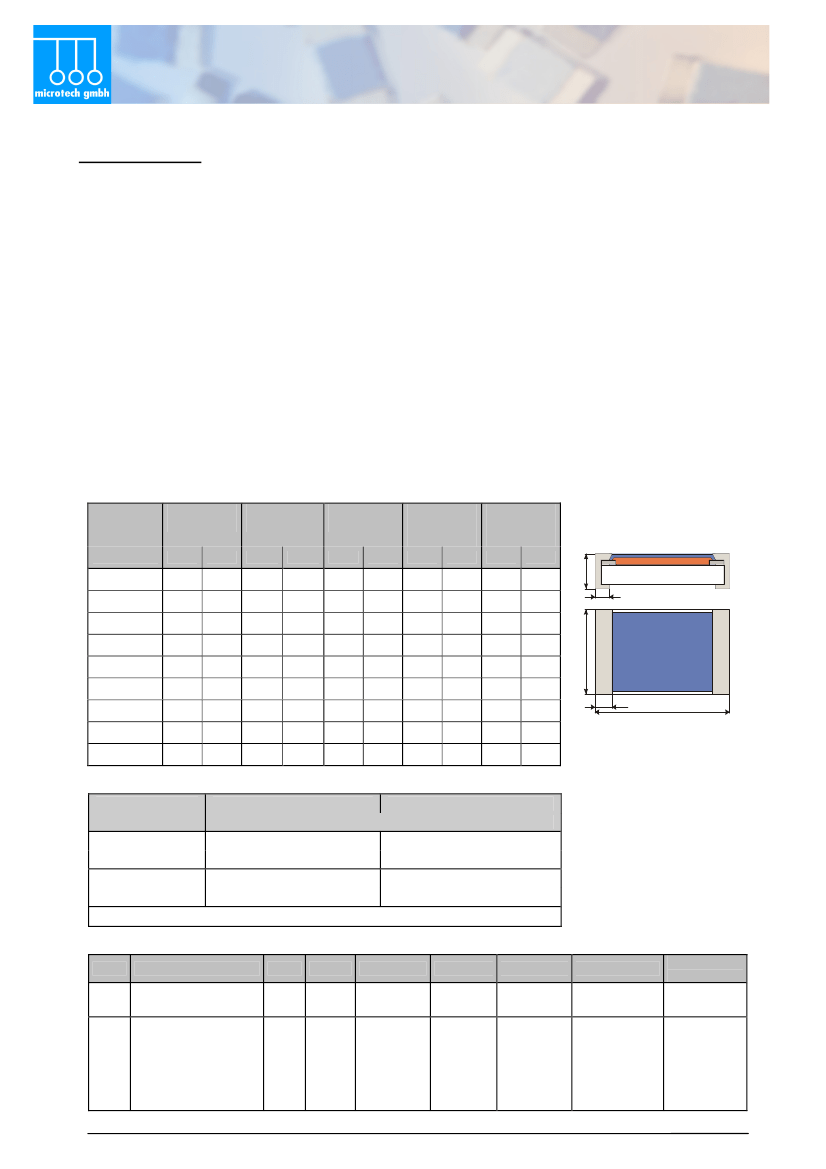

microtech GmbH electronic Teltow

Chip resistors - Made in Germany

ISO/TS 16949:2009

Thin film series

Type: CMF

Sizes: 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512, 2040

Characteristics:

•

Chip resistors in thin film technology

High-precision resistor layers

Resistance area coated with surface passivation

Highest stability and reliability

Very tight tolerances (≥0,05%) - low temperature coefficient (≥10ppm/K)

Low current noise, good pulse strength

R-Value-Matching available

RoHS-conform

Order quantities from 1000 pieces for <1% and <TC50 available by extra charge

Customer specific barcodes available - also in 2D

All sizes can be manufactured with the following contact variants

⇒

Electroplated pure tin

⇒

Contact with low rest permeability -N,

suitable only for reflow soldering method

⇒

Epoxy bondable contact -K

Size

Length

Min

Max

Dimensions (in mm):

Width

Min

Max

Depth

Min

Max

Contact

back

Min

Max

Contakt

Front

Min

Max

0402

0603

0805

1206

1210

1218

2010

2512

2040

0,95

1,50

1,85

2,90

3,00

4,80

6,10

4,90

1,10

1,70

2,15

3,35

3,30

5,20

6,50

5,30

0,45

0,75

1,10

1,45

2,35

4,50

2,30

3,00

0,60

0,95

1,40

1,75

2,65

4,80

2,70

3,30

0,25

0,35

0,50

0,40

0,55

0,65

0,75

0,10

0,15

0,25

0,35

0,50

0,60

0,75

0,85

0,05

0,10

0,15

0,25

0,35

0,50

0,60

0,75

0,85

10,05 10,35 0,50

Packaging units:

Reel

180 mm

330 mm

Card tape

acc. EN 60286-3

5 T pcs.

10 T pcs. for size 0402

10 T pcs.

20 T pcs.

4 T pcs.

8 T pcs.

16 T pcs.

Blister tape

Samples by bulk into plastic bags up to 50 pcs./value

Ordering information:

CMF

Type

CMF

-N

Contact

Standard (without

add.)

-N (non magnetic)

-K (epoxy bondable)

0603

Size

0402

2040

10k

R-

Value

4M7

0,1%

Tolerance

0,05

0,1

0,25

0,5

10ppm/K

Marking

N- without

K- with

(from size

0603)

Packaging

P- Card tape

B- Blister tape

S- Bulk

(optional)

Pcs. / Reel

(T Pcs.)

Depends on

size and

packaging

unit

Stand:

October

2013

Catalog microtech GmbH electronic

CMF08051K821%10PPM/KN-S Related Products

	CMF08051K821%10PPM/KN-S	CMF060316K21%15PPM/KNS	CMF1206499K1%50PPM/KNS	CMF06032K211%10PPM/KN-S	CMF06034K321%10PPM/KN-S	CMF080542K21%15PPM/KNS	CMF0805931K1%50PPM/KNS	CMF080556R21%50PPM/KNS
Description	Fixed Resistor, Thin Film, 0.05W, 1820ohm, 35V, 1% +/-Tol, 10ppm/Cel, 0805,	Fixed Resistor, Thin Film, 0.032W, 16200ohm, 25V, 1% +/-Tol, 15ppm/Cel, 0603,	Fixed Resistor, Thin Film, 0.1W, 499000ohm, 50V, 1% +/-Tol, 50ppm/Cel, 1206,	Fixed Resistor, Thin Film, 0.032W, 2210ohm, 25V, 1% +/-Tol, 10ppm/Cel, 0603,	Fixed Resistor, Thin Film, 0.032W, 4320ohm, 25V, 1% +/-Tol, 10ppm/Cel, 0603,	Fixed Resistor, Thin Film, 0.05W, 42200ohm, 35V, 1% +/-Tol, 15ppm/Cel, 0805,	Fixed Resistor, Thin Film, 0.05W, 931000ohm, 35V, 1% +/-Tol, 50ppm/Cel, 0805,	Fixed Resistor, Thin Film, 0.05W, 56.2ohm, 35V, 1% +/-Tol, 50ppm/Cel, 0805,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	299206884	907810358	907772186	299228642	299228670	907856862	907862330	907861710
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	0.65 mm	0.55 mm	0.65 mm	0.55 mm	0.55 mm	0.65 mm	0.65 mm	0.65 mm
Package length	2.15 mm	1.7 mm	3.35 mm	1.7 mm	1.7 mm	2.15 mm	2.15 mm	2.15 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	1.4 mm	0.95 mm	1.75 mm	0.95 mm	0.95 mm	1.4 mm	1.4 mm	1.4 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
Rated power dissipation(P)	0.125 W	0.1 W	0.25 W	0.1 W	0.1 W	0.125 W	0.125 W	0.125 W
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
resistance	1820 Ω	16200 Ω	499000 Ω	2210 Ω	4320 Ω	42200 Ω	931000 Ω	56.2 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	0805	0603	1206	0603	0603	0805	0805	0805
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM
Temperature Coefficient	10 ppm/°C	15 ppm/°C	50 ppm/°C	10 ppm/°C	10 ppm/°C	15 ppm/°C	50 ppm/°C	50 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	1%	1%	1%	1%	1%	1%	1%	1%
Operating Voltage	150 V	75 V	200 V	75 V	75 V	150 V	150 V	150 V
