ZR Flat-Wirewound Power Resistors

Preview

Download Datasheet

View All

TOKEN

ZR Flat-Wirewound Power Resistors

Oval Flat-Wirewound

Power Resistors

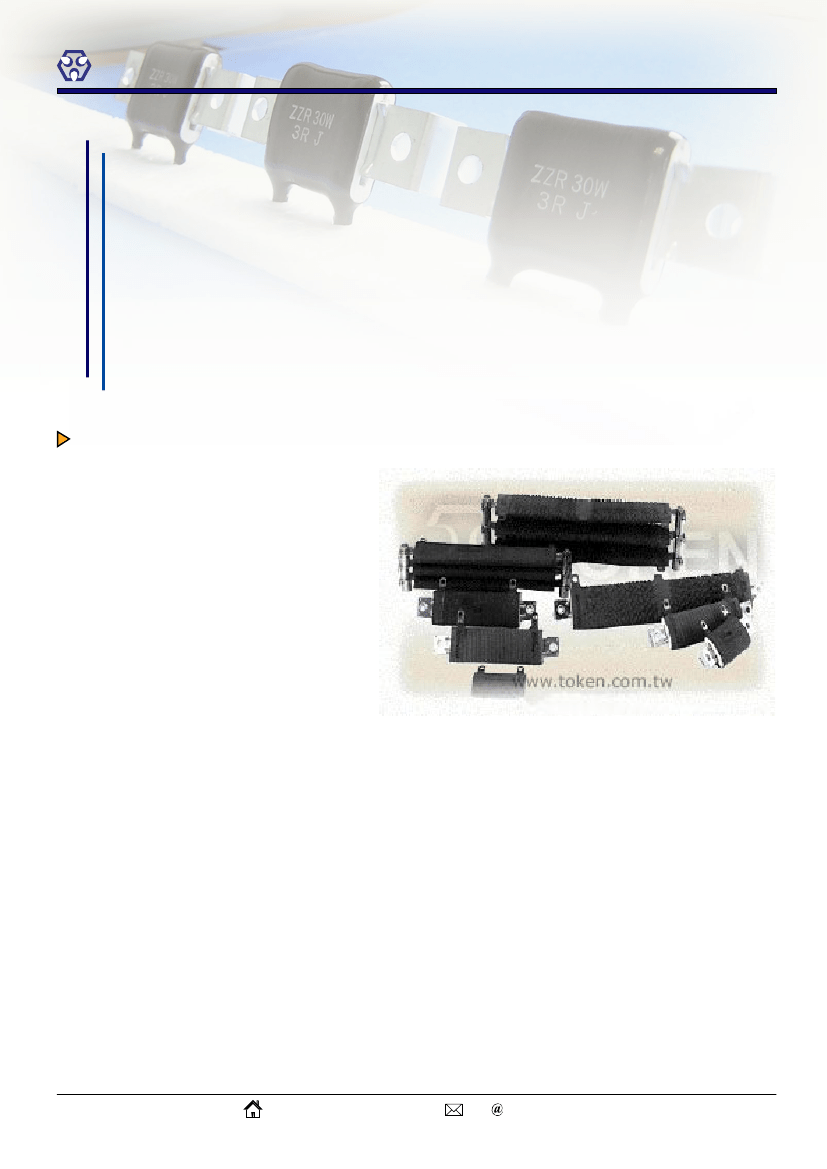

When Limited Space is Required,

Choose Token’s “Thin” Stackable (ZR) Resistors

Preview

Token oval-shaped ceramic-core resistors

feature a low profile to permit installation

in spaces with height restrictions.

They are also equipped with integral mounting

brackets so they can be fastened to a chassis

and stacked in locations with limited surface

area. When properly fastened, the mounting

brackets add a heat sinking benefit resulting

in a smaller size per watt. Durable ZR power

resistors are fully welded and coated with lead

free non-flammable resin.

ZR resistors are suitable for educational

modeling applications, load testing, industrial

machinery, electric power distribution, instruments, automation control installations, etc.

The ZR Series is RoHS compliant and lead free. For non-standard technical requirements and custom special

applications, please contact us.

Non-Inductive :

● Ayrton Perry type non-inductive winding is available. When required add “N” to the part number.

Construction :

● Wirewound ZR Resistor is a flat tubular ceramic rod has two terminals and is wirewound with either

copper wire or chromium alloy wire as a resistance element.

● Mainly utilized for industrial installations where height is limited. Features excellent windings, taps

adding, low impedance, and PC board insertable.

Notes :

● When resistors are stacked, use washers or spacers as required to insure clearance and improve power

dissipation.

Version 2010

http://www.token.com.tw/

rfq token.com.tw

01 of 04
