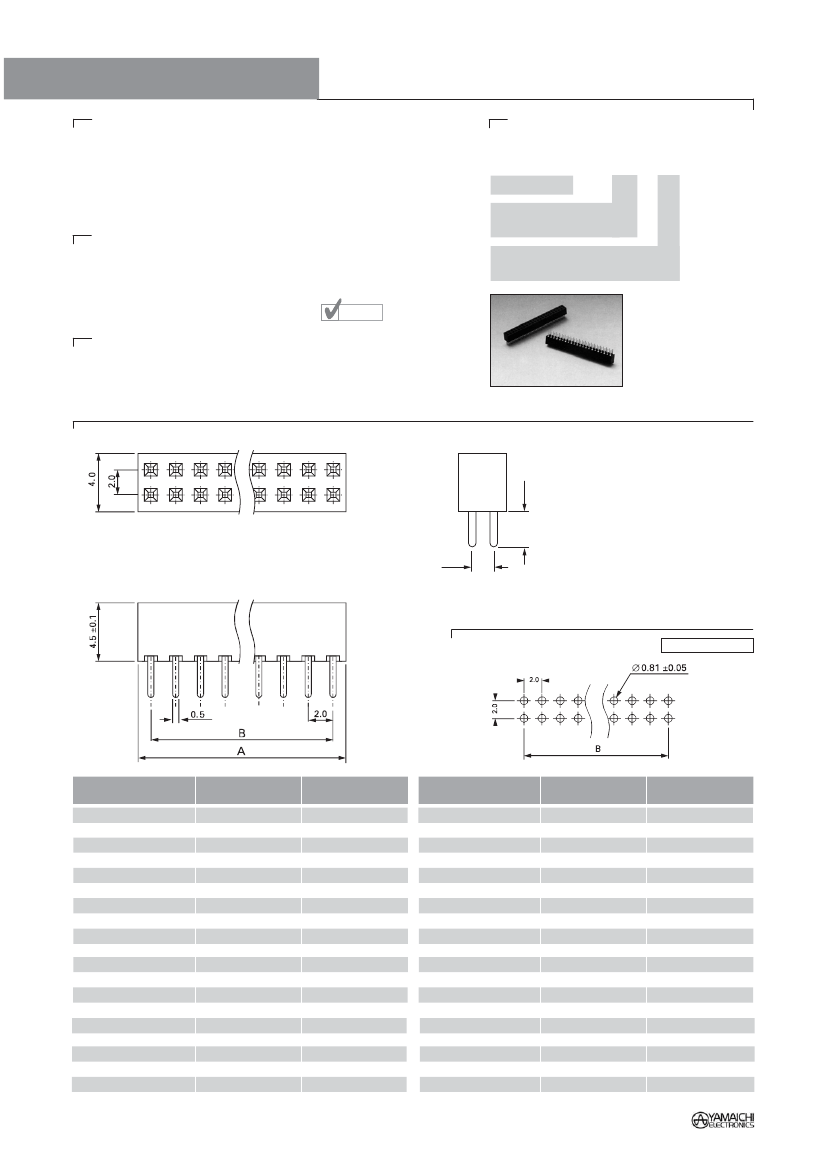

ZS3A Series
Specifications
Contact Resistance:
Insulation Resistance:
Current Rating:
Withstanding Voltage:
Operating Temp. Range:
Soldering Temp.
30mΩ max.
3,000MΩ min at 500V
1A
500V AC for 1 minute
–40°C to +105°C
230°C / 3 sec.
180° TH Socket for PCB Mount
Part Number
(Details)
ZS3A
Series No.
No. of Contact Pins
(4 to 80)
Mating Face Plating:
G2 =Gold Flash
-
**
G2
Materials and Finish
Insulator:
Nylon 66, glass reinforced, UL 94V-0 rated
Terminals:
Phosphor bronze
Contact Plating: Au Flash
RoHS
Features
Pin count from 4 to 80
Outline Connector Dimensions
2.0
Recommended PCB Layout
Top View
Part Number
ZS3A-04-G2
ZS3A-06-G2
ZS3A-08-G2
ZS3A-10-G2
ZS3A-12-G2
ZS3A-14-G2
ZS3A-16-G2
ZS3A-18-G2
ZS3A-20-G2
ZS3A-22-G2
ZS3A-24-G2
ZS3A-26-G2
ZS3A-28-G2
ZS3A-30-G2
ZS3A-32-G2
ZS3A-34-G2
ZS3A-36-G2
ZS3A-38-G2
ZS3A-40-G2
ZS3A-42-G2
Sockets and Connectors
Dim. A
4.5
6.5
8.5
10.5
12.5
14.5
16.5
18.5
20.5
22.5
24.5
26.5
28.5
30.5
32.5
34.5
36.5
38.5
40.5
42.5
2.7
Dim. B
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
40.0
Part Number
ZS3A-44-G2
ZS3A-46-G2
ZS3A-48-G2
ZS3A-50-G2
ZS3A-52-G2
ZS3A-54-G2
ZS3A-56-G2
ZS3A-58-G2
ZS3A-60-G2
ZS3A-62-G2
ZS3A-64-G2
ZS3A-66-G2
ZS3A-68-G2
ZS3A-70-G2
ZS3A-72-G2
ZS3A-74-G2
ZS3A-76-G2
ZS3A-78-G2
ZS3A-80-G2
Dim. A
44.5
46.5
48.5
50.5
52.5
54.5
56.5
58.5
60.5
62.5
64.5
66.5
68.5
70.5
72.5
74.5
76.5
78.5
80.5
Dim. B
42.0
44.0
46.0
48.0
50.0
52.0
54.0
56.0
58.0
60.0
62.0
64.0
66.0
68.0
70.0
72.0
74.0
76.0
78.0
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
