ZS6A-16-G2

Description
180° SMT Low Profile Socket (Height 2.5mm)
File Size57KB,2 Pages
ManufacturerYamaichi Electronics Co., Ltd.
Websitehttp://www.yamaichi.com/
Download Datasheet View All

ZS6A-16-G2 Overview

180° SMT Low Profile Socket (Height 2.5mm)

Internal
Connectors
Specifications
Contact Resistance:
Insulation Resistance:
Withstanding Voltage:
Current Rating:
Operating Temp. Range:
Soldering Temp.:
Series ZS6A
180° SMT Low Profile Socket (Height 2.5mm)
Part Number
(Details)
20mΩ max. at 100mA DC
5,000MΩ min. at 500V
500V AC
1A
–40°C to +105°C
230°C min. / 60 sec., 250°C peak
ZS6A
Series No.
-
**
G2
No. of Contact Pins
(6 to 60)
Mating Face Plating:
G2 = Gold Flash
Materials and Finish
Insulator:
Terminals:
Contact Plating:
Nylon 6T, glass reinforced, UL 94V-0 rated
Phosphor bronze
Au Flash
Features
Pin count from 6 to 60

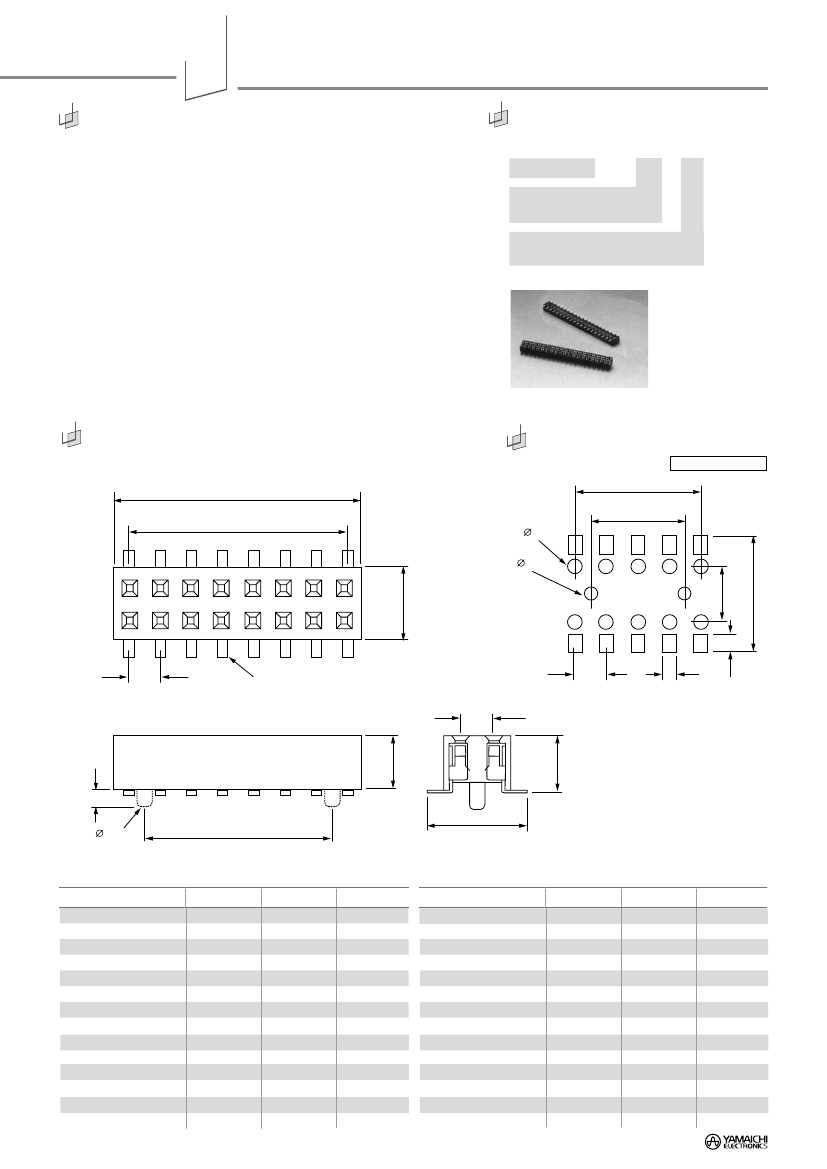

Outline Connector Dimensions
A
B
Recommended PCB Layout
Top View
B
C
0.85
0.76
4.0
2.0
0.5 x 0.15
2.0
2.3 ±0.1
2.5 ±0.1
2.0
0.8
0.6
C
5.5 ±0.3
Dimensional Information
Part Number
ZS6A-06-G2
ZS6A-08-G2
ZS6A-10-G2
ZS6A-12-G2
ZS6A-14-G2
ZS6A-16-G2
ZS6A-18-G2
ZS6A-20-G2
ZS6A-22-G2
ZS6A-24-G2
ZS6A-26-G2
ZS6A-28-G2
ZS6A-30-G2
ZS6A-32-G2
Connectors
Dim. A
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
Dim. B
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
Dim. C
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
Part Number
ZS6A-34-G2
ZS6A-36-G2
ZS6A-38-G2
ZS6A-40-G2
ZS6A-42-G2
ZS6A-44-G2
ZS6A-46-G2
ZS6A-48-G2
ZS6A-50-G2
ZS6A-52-G2
ZS6A-54-G2
ZS6A-56-G2
ZS6A-58-G2
ZS6A-60-G2
Dim. A
34.0
36.0
38.0
40.0
42.0
44.0
46.0
48.0
50.0
52.0
54.0
56.0
58.0
60.0
Dim. B
32.0
34.0
36.0
38.0
40.0
42.0
44.0
46.0
48.0
50.0
52.0
54.0
56.0
58.0
Dim. C
30.0
32.0
34.0
36.0
38.0
40.0
42.0
44.0
46.0
48.0
50.0
52.0
54.0
56.0
