Low Profile
Wide Frequency range
Extended temperature range
RoHS Compliant (Note 7 Exemption)
ZTA Series
Ceramic Resonator
The ZTA Series ceramic resonator offers a wide frequency
range and extended temperature range capabilities.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PART NUMBER *
ZTA
□.□□
MG
ZTA
□.□□
MG
ZTA
□.□□
MG
ZTA
□.□□
MT
ZTA
□□.□□
MT
ZTA
□□.□□
MX
FREQUENCY
RANGE
(MHz)
2.00 ~ 2.99
3.00 ~ 3.49
3.50 ~ 8.00
6.01 ~ 6.99
7.00 ~ 13.00
13.01 ~ 50.00
FREQUENCY
ACCURACY
@ 25°C(%)
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
STABILITY IN
TEMPERATURE
-20~ +80°C (%)
±0.3
±0.3
±0.3
±0.3
±0.3
±0.3
AGING FOR
TEN YEARS
(%)
±0.3
±0.3
±0.3
±0.3
±0.3
±0.3
RESONANT
RESISTANCE
(Ω) MAX
80
50
30
30
25
30

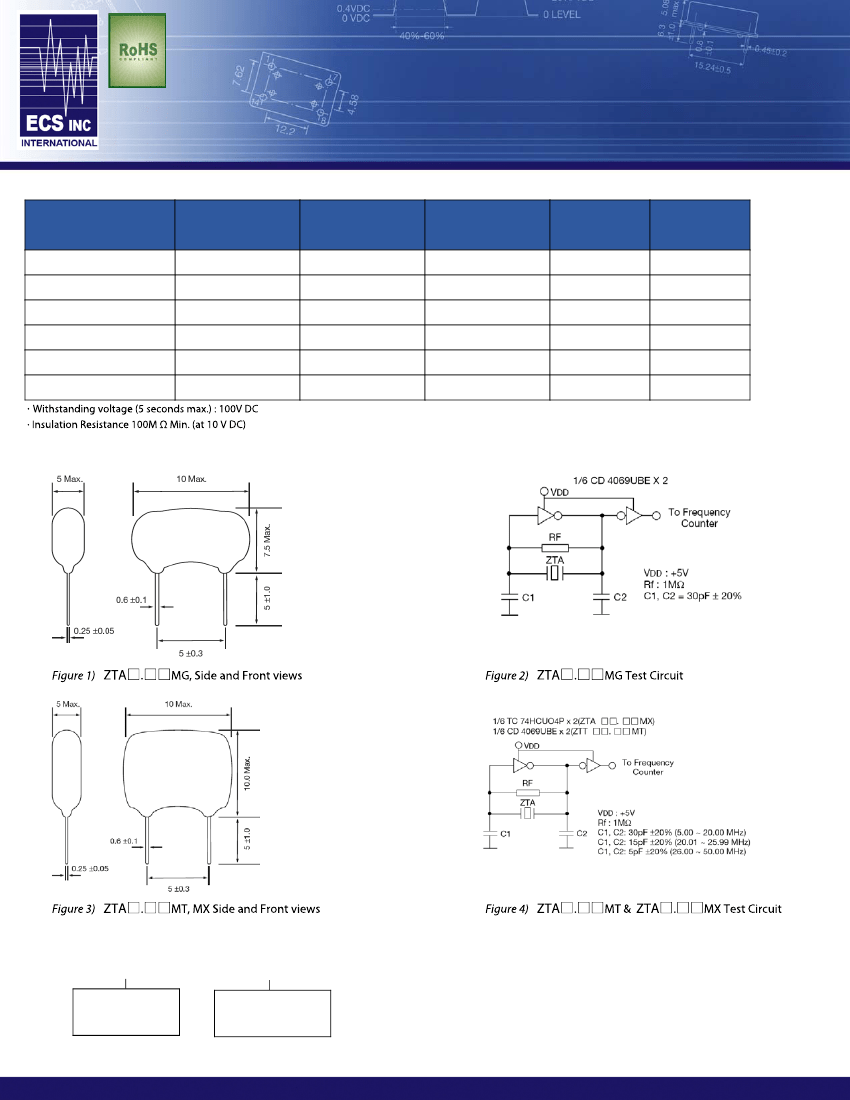

PACKAGE DIMENSIONS (mm)
PART NUMBERING GUIDE: Example ZTA-4.00MG
ZTA
-
Frequency
Suffix
MG (2~8 MHz)
MT (6.01~13 MHz)
MX (13.01~50 MHz)
Note: ECS does not approve the use of it's products in Automotive,
Military, Avionics, Life Sustaining or Life Support systems or any other
related medical applications without written approval from ECS INC.
