F1510A
Surface Mount Glass Passivated Standard Rectifier
Reverse Voltage 1000V Forward Current 1.5A
Features
•
•
•
•
•
•
•
•
Glass passivated Standard Rectifiers
Very low profile - typical height of 1.0 mm
Low forward voltage drop
Low leakage current
Moisture sensitivity: level 1, per J-STD-020
AEC-Q101 qualified
High temperature soldering guaranteed: 260℃/10 seconds
Halogen-free according to IEC 61249-2-21 definition

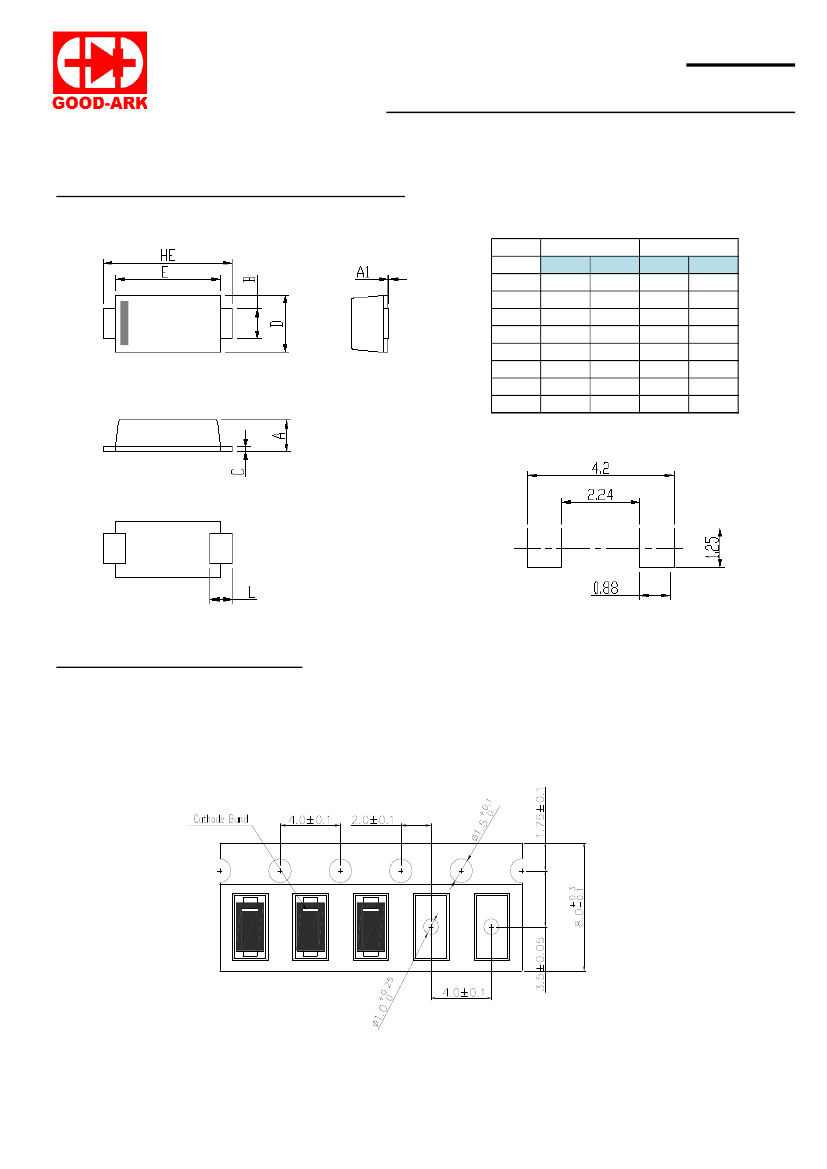

eSGA
(SOD‐123FL)
Typical Applications
For use of general purpose rectification in lighting, cellular phone, portable device,
power supplies and other consumer applications.
Maximum Ratings
M i
R ti
Parameter
(TA = 25 °C unless otherwise noted)
Symbol
VRRM
VRMS
VDC
IF(AV)
IFSM
TJ, TSTG
F1510A
1000
700
1000
1.5
52
- 55 to + 150
Unit
V
V
V
A
A
°C
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
g
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load
Operating junction and storage temperature
range
Electrical Characteristics
Parameter
Test Conditions
Maximum instantaneous
1.5A ,TA=25℃
forward voltage
Maximum DC reverse current
TA=25℃
at rated DC blocking voltage
TA=125℃
I
F
=0.5A,I
R
=1.0A,
Typical reverse recovery time
I
rr
=0.25A
Typical junction capacitance 4.0 V, 1 MHz
Typical thermal resistance
1)
juntion to ambient
juntion to case
juntion to mount
(TA = 25 °C unless otherwise noted)
F1510A
1.1
5
50
1.8
6
70
35
14
℃/W
Unit
Volts
µA
uS
pF
Symbol
V
F
I
R
t
rr
C
J
R
θJA
R
θJC
R
θJM
Note:1),The thermal resistance from junction to ambient,case or mount,mounted on P.C.B with 5×5mm copper pads,2 OZ,FR4 PCB
www.goodark.com
1/4
2014.02-Rev.A
F1510A
Surface Mount Glass Passivated Standard Rectifier
Reverse Voltage 1000V Forward Current 1.5A
Ratings and Characteristics Curves
(TA = 25℃ unless otherwise noted)

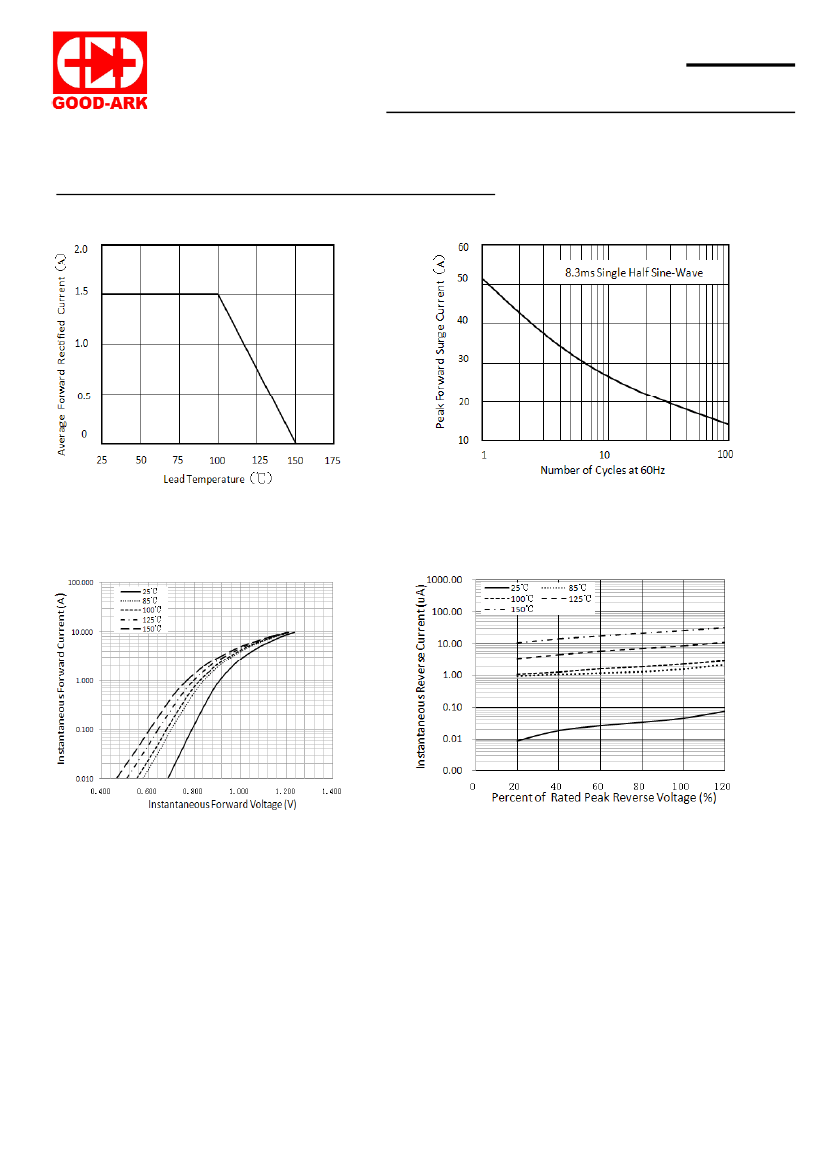

Figure 1.Forward Current Derating Curve
Figure 2.Maximum Non‐Repetitive Peak
g
Forward Surge Current
Figure 3. Typical Instantaneous Forward Characteristics
Figure 4. Typical Reverse Characteristics
