se,
e ca .
blu
ith a d the UK
s, w n
serie he US a
CR65tside t
ou

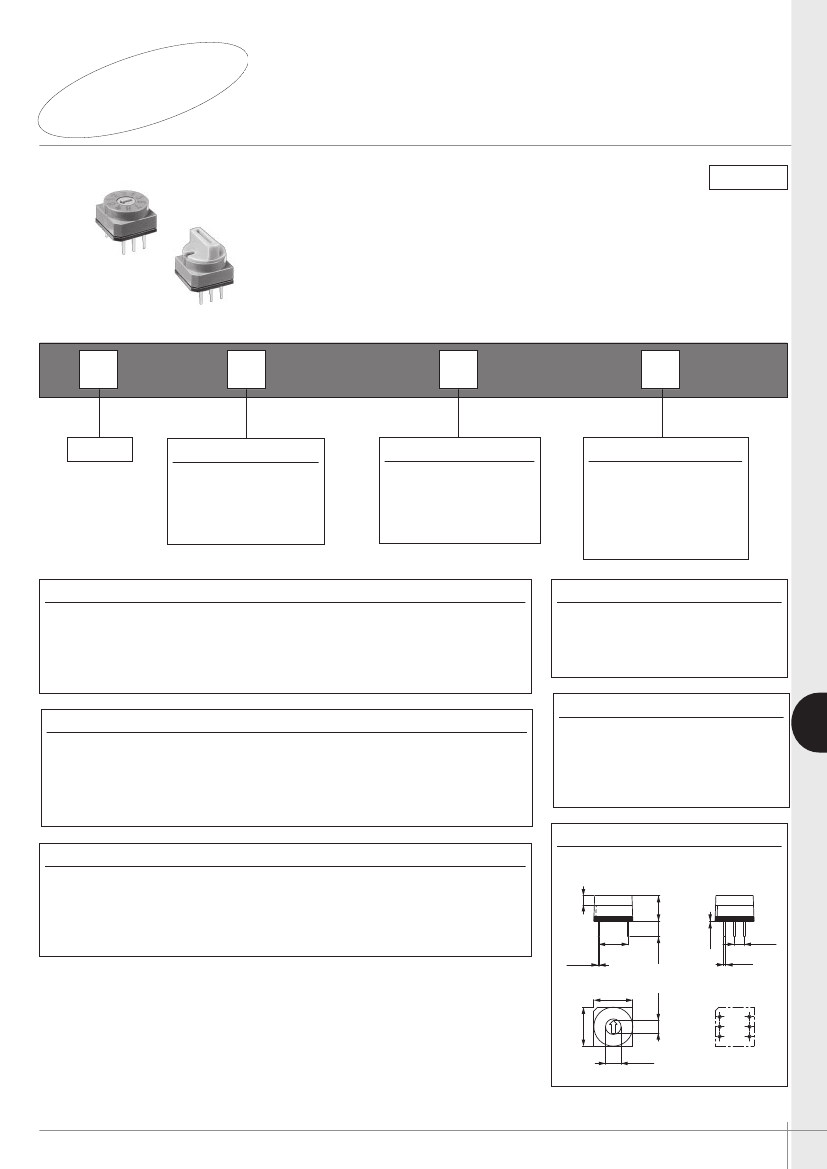

PT65 series
Rotary code switches
Through-hole
❑
4 actuator types
❑
Save board space
❑
Highly reliable
❑
Solder and flux sealed, washable
UG1006-A

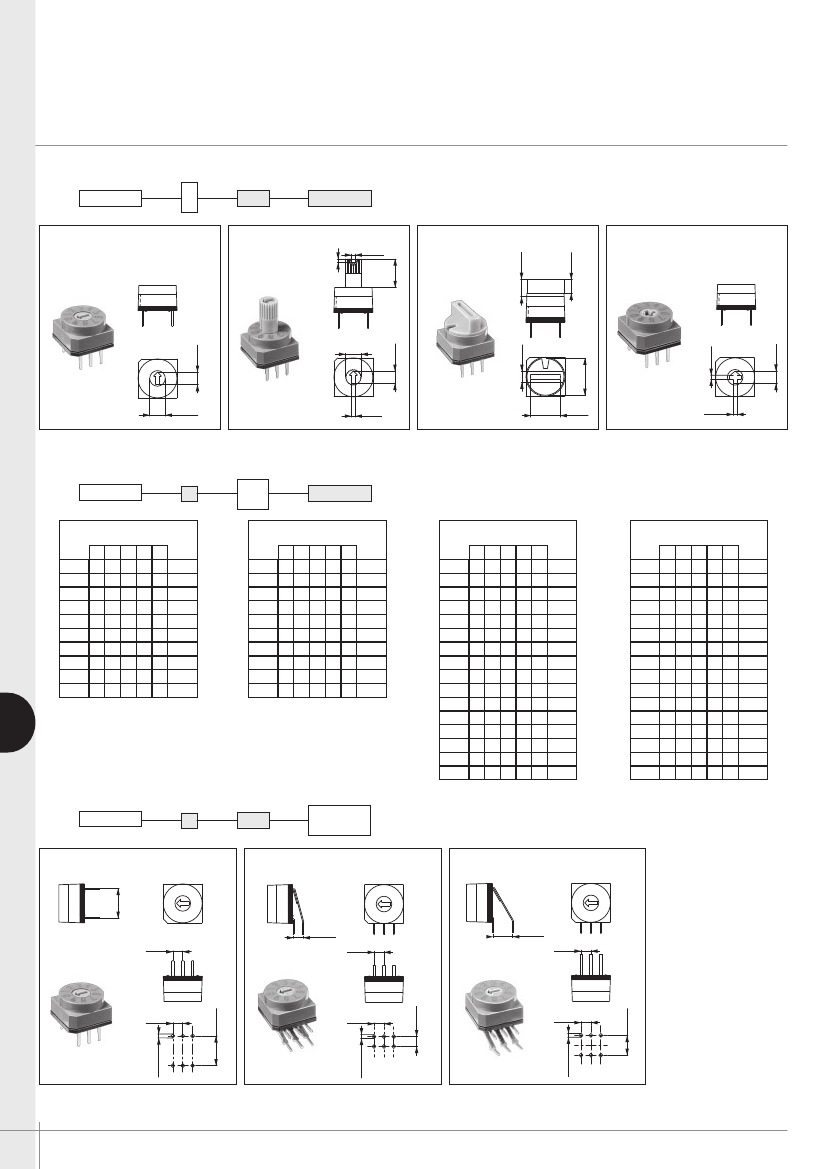

PT65
SERIES
Actuators
1
3
5
7
Screwdriver
Spindle
Segment wheel
Accessories
01
02
03
06
Codes
BCD
BCD complement
Hexadecimal
Hexadecimal complement
(none)
L254
L508
Terminals
Straight
Right angle,
spacing 2,54 (.100)
Right angle,
spacing 5,08 (.200)
ELECTRICAL SPECIFICATIONS
MECHANICAL AND THERMAL SPECS
• Operating voltage : 24 VDC max.
• Contact load, static : 400mA max.
• Contact load, dynamic : 150mA max.
• Initial contact resistance : 80 mΩ max.
• Insulation resistance : 100 MΩ min.
MATERIALS
• Torque : 0,7 Ncm min.
• Expected life : 10.000 cycles min.
• Operating temperature :
-20°C to +70°C
SOLDER RECOMMENDATIONS
• Base : UL94-V0, high temperature thermoplastic
• Cover : UL94-V0, high temperature thermoplastic, grey
• Actuator : PA 4.6 nylon
• Contacts : gold over nickel plated phosphor bronze
• Terminals : tin plated
(DIN CEI 68-2-20)
• Manual soldering : 340°C max.for
2 seconds max.
• Wave soldering : 260°C max. for
10 seconds max.
DIMENSIONS
F
PACKAGING
Screwdriver slot, straight terminals
2.20
(.087)
4.00
(.157)
0.20
(.008)
• Switches for screwdriver slot or accessory actuation (PT651 and PT657) :
tubes of 50 pieces
• Switches with spindle (PT653) or segment wheel (PT655) : candy trays of
50 pieces
• Accessories : bags of 50 pieces
7.62
(.300)
0.27
(.011)
6.50
(.256)
2.54
(.100)
0.55
(.022)
10.00
(.393)
9
0
1
3.20
(.126)
10.00
(.393)
1
C
4
8
C
2
23
4
78
5
6
Dimensions
: first dimensions are in mm while inches are shown as bracketted numbers.
4.00
(.157)
APEM
www.apem.com
F-5
PT65 series
Rotary code switches
Through-hole

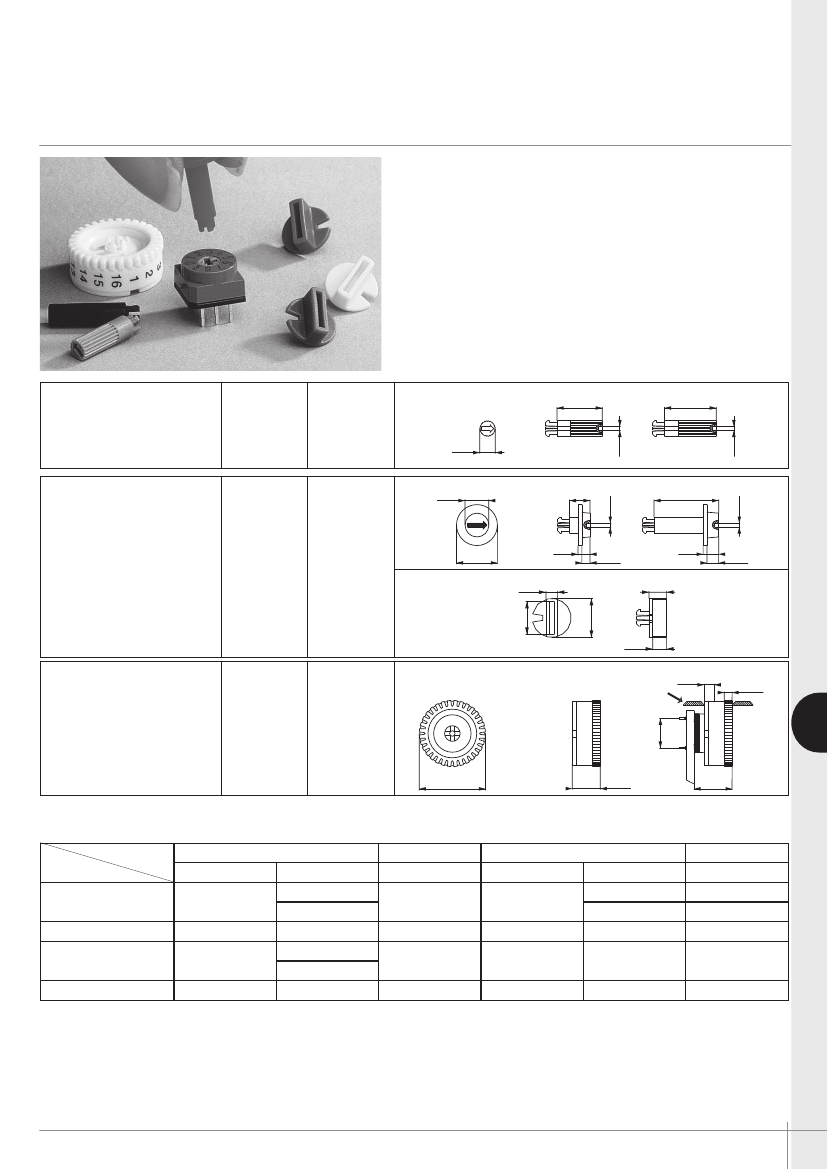

ACCESSORIES ADAPTED TO YOUR APPLICATIONS
Basic model PT657 has been designed to accept different
actuators with snap-in connection.
According to your application, you can choose between spindles
or plastic knobs in two different lengths and a
Ø 17 mm (.669) knurled wheel for lateral marking.
Standard colours are shown below. Special colours are also
available on request.
SPINDLES
Length 11,6 mm (standard)
Length 13,3 mm
PLASTIC KNOBS
Length 5,3 mm (standard)
Length 15,7 mm
(
(
(
(
(
P/N
U4822
U4824
U4832
P/N
U4906
U4916
U4941
U4943
U4944
U4945
U4946
COLOURS
black
grey
black
COLOURS
red
red
blue
green
grey
yellow
red
11.60
(.457)
13.30
(.524)
1.00
(.039)
6.10
(.240)
5.30
(.209)
1.00
(.039)
15.70
(.618)
1.00
(.039)
4.10
(.161)
3.10
(.122)
4.40
(.173)
3.50
(.138)
3.10
(.122)
1.80
(.071)
10.50
(.413)
2.80
(.110)
3.10
(.122)
2.10
(.083)
➞
Panel
KNURLED WHEEL
(unmarked - marking
on request)
P/N
U4847/1
COLOUR
white/black
17.00
(.669)
7.20
(.283)
7.62
(.300)
Ø9.50
(.473 DIA)
7.70
(.303)
Length 4,4 mm
1.00
(.039)
4.00
(.157)
F
9.60
(.378)
STANDARD PRODUCTS
MODELS
CODES
BCD
BCD complement
Hexadecimal
Hexadecimal complem.
FOR SCREWDRIVER
Upper actuation
PT65101
PT65102
PT65103
PT65106
Side actuation
PT65101L254
PT65101L508
-
PT65103L254
PT65103L508
-
WITH SPINDLE
Upper actuation
PT65301
-
PT65303
-
WITH SEGMENT WHEEL
Upper actuation
PT65501
PT65502
PT65503
-
Side actuation
-
-
-
PT65303L254
-
FOR ACCESS.
Upper actuation
PT65701
-
-
-
-
APEM
www.apem.com
F-7
