370-005
Splash-Proof Cable Sealing Backshell
with Strain Relief
Low Profile - Rotatable Coupling
370 F S 005 M 16 10 L 6
37
CONNECTOR
DESIGNATORS
Product Series
Connector Designator
Length: S only (1/2 inch incre-
ments: e.g. 6 = 3 inches)
Strain Relief Style (L,G)
A-F-H-L-S
ROTATABLE
COUPLING
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Cable Entry (Tables IV, V)
Shell Size (Table III)
Finish (Table II)
Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 6)
A Thread
(Table I)
Length *
O-Rings
.312 (7.9)
Max
* Length ± .060 (1.52)
Min. Order
Length 1.5 Inch
(See Note 6)
C Typ.
(Table I)

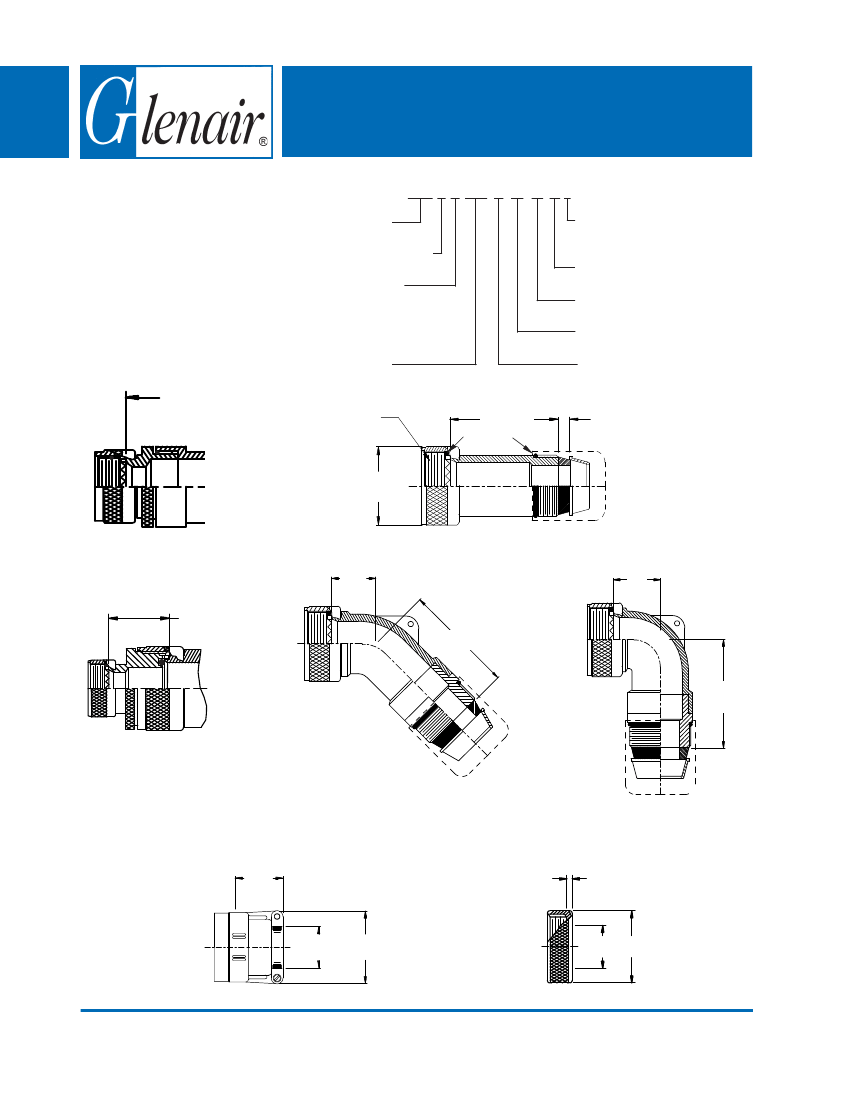

STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
E
(Table III)
G
(Table III)
F (Table III)
H
(Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE L
Light Duty (Table IV)
.850
(21.6)
Max
Cable
Range
STYLE G
Light Duty (Table V)
.072 (1.8)
Max
J
Cable
Range
K
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 37 - Page 20
with Strain Relief
Low Profile - Rotatable Coupling
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
E
Max
.457 (11.6)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
2.030 (51.6)
2.030 (51.6)
2.090 (53.1)
2.150 (54.6)
2.240 (56.9)
2.340 (59.4)
2.340 (59.4)
2.540 (64.5)
2.540 (64.5)
2.680 (68.1)
2.680 (68.1)
2.680 (68.1)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
2.040 (51.8)
2.040 (51.8)
2.160 (54.9)
2.180 (55.4)
2.250 (57.2)
2.340 (59.4)
2.340 (59.4)
2.510 (63.8)
2.510 (63.8)
2.620 (66.5)
2.620 (66.5)
2.620 (66.5)
TABLE IV: CABLE ENTRY
Dash
Cable Range
J
No.
Min
Max
Max
01
.781 (19.8) .062 (1.6) .125 (3.2)
02
.968 (24.6) .125 (3.2) .250 (6.4)
03
1.046 (26.6) .250 (6.4) .375 (9.5)
04
1.156 (29.4) .250 (6.4) .500 (12.7)
05
1.218 (30.9) .375 (9.5) .625 (15.9)
06
1.343 (34.1) .500 (12.7) .750 (19.1)
07
1.468 (37.3) .625 (15.9) .875 (22.2)
08
1.593 (40.5) .625 (15.9) 1.000 (25.4)
09
1.718 (43.6) .750 (19.1) 1.125 (28.6)
10
1.843 (46.8) .875 (22.2) 1.250 (31.8)
TABLE V: CABLE ENTRY
Dash
Cable Range
K
No.
Min
Max
Max
01
.593 (15.1) .062 (1.6) .125 (3.2)
02
.718 (18.2) .125 (3.2) .250 (6.4)
03
.873 (22.2) .250 (6.4) .375 (9.5)
04
.968 (24.6) .375 (9.5) .500 (12.7)
05
1.109 (28.2) .500 (12.7) .625 (15.9)
06
1.218 (30.9) .625 (15.9) .750 (19.1)
07
1.343 (34.1) .750 (19.1) .875 (22.2)
08
1.468 (37.3) .875 (22.2) 1.000 (25.4)
09
1.593 (40.5) 1.000 (25.4) 1.125 (28.6)
10
1.718 (43.6) 1.125 (28.6) 1.250 (31.8)
1. When maximum cable entry (page 21) is exceeded, Style 2 will
be supplied.
Dimensions E, F, G and H will not apply. Please consult
factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the
wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. Interface O-Ring not supplied with connector designator A.
