2017-10-25
Data sheet
Order No.: 1911871
Type: MSTB 2,5 HC/ 4-ST
Plug component, Screw connection with tension
sleeve
Product version 01
Document revision 0
The figure shows a 10-position version of the
product
1
Main features
No. of pos.
Conductor cross section
Color
Pitch
Connection method
4
2.5 mm²
green
5 mm
Screw connection with
tension sleeve
Nominal current
Nominal voltage
Connection direction
Type of packaging
16 A (see derating curve)
320 V
0°
packed in cardboard
2
Your advantages
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
Make sure you always use the latest documentation.
It can be downloaded at:
phoenixcontact.net/product/1911871
© PHOENIX CONTACT 2017
2017-10-25
Product version 01
1911871 MSTB 2,5 HC/ 4-ST
Document revision 0
3
1
2
3
4
5
Table of contents
Main features........................................................................................................................... 1
Your advantages ..................................................................................................................... 1
Table of contents ..................................................................................................................... 2

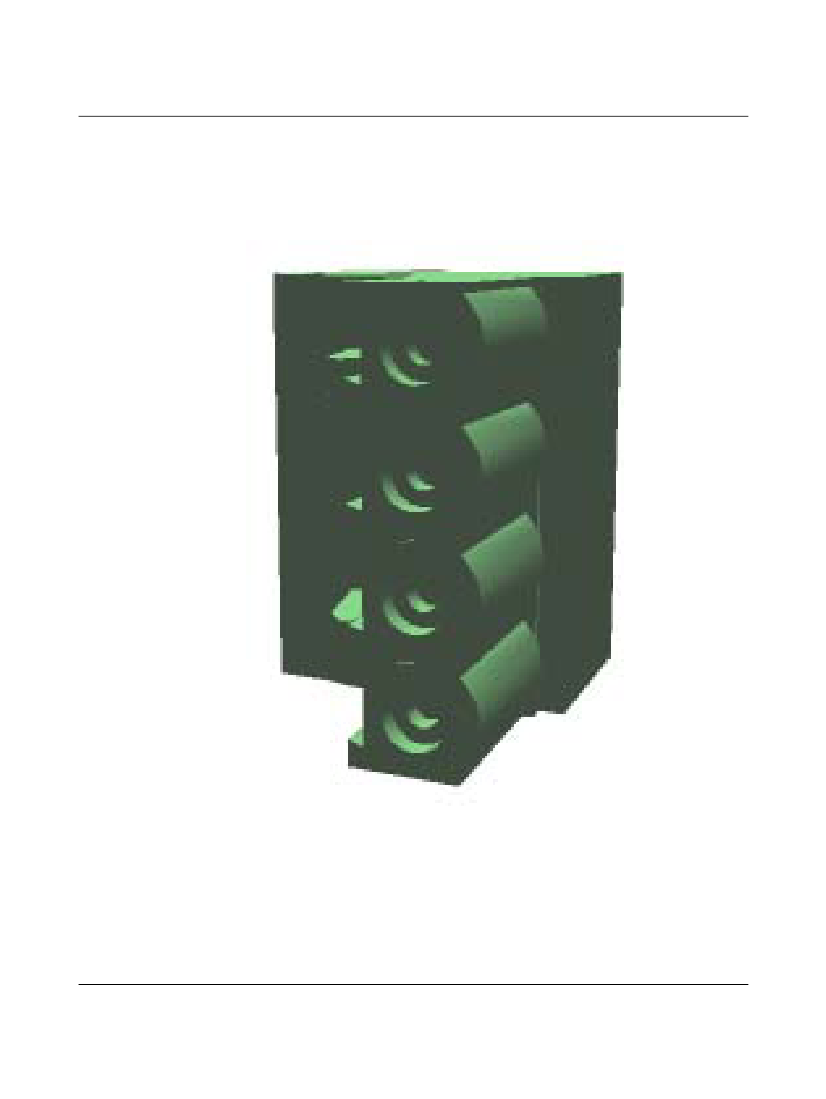

3D model in PDF can be activated (Acrobat Reader only)....................................................... 3
item properties......................................................................................................................... 4
5.1
Connection capacity
............................................................................................................. 4
5.2
Material data
...................................................................................................................... 4
Dimensions.............................................................................................................................. 4
6.1
Dimensions for the product
.................................................................................................... 5
Series drawing......................................................................................................................... 6
Packaging information ............................................................................................................. 6
Application............................................................................................................................... 6
9.1
Temperature limit values
....................................................................................................... 6
Mechanical tests...................................................................................................................... 7
10.1 Termination and connection method
......................................................................................... 7
10.2 Pull-out test
........................................................................................................................ 7
Electrical tests ......................................................................................................................... 8
11.1 Electrical data
..................................................................................................................... 8
11.2 Air and creepage distances
.................................................................................................... 8
Current carrying capacity/derating curves ............................................................................... 9
Environmental and durability tests ......................................................................................... 10
13.1 Vibration test
.................................................................................................................... 10
Classification for connectors.................................................................................................. 10
Approvals .............................................................................................................................. 10
Commercial Data................................................................................................................... 11
corresponding headers.......................................................................................................... 11
Accessories ........................................................................................................................... 11
Combination tests.................................................................................................................. 12
© PHOENIX CONTACT 2017
6
7
8
9
10
11
12
13
14
15
16
17
18
19
REF 1911855
PHOENIX CONTACT
2 / 12
2017-10-25
Product version 01
1911871 MSTB 2,5 HC/ 4-ST
Document revision 0
5
item properties
1911871
MSTB 2,5 HC/ 4-ST
Female connector
MSTB 2,5 HC/..-ST
5 mm
4
Screw connection with tension sleeve
Slotted
M3
0.5 Nm
...
0.6 Nm
without
Order No.
Type
Type of contact
Range of articles
Pitch
Number of positions
Connection method
Drive form screw head
Screw thread
Tightening torque
Locking
5.1
Connection capacity
Conductor cross section, solid
Conductor cross section, flexible
Conductor cross section AWG/kcmil
2 conductors with same cross section, solid
2 conductors with same cross section, stranded
Conductor cross section flexible, with ferrule without plastic sleeve
Conductor cross section flexible, with ferrule with plastic sleeve
2 conductors with same cross section, stranded, with ferrule without plastic
sleeve
2 conductors with same cross section, stranded, with TWIN ferrules with
plastic sleeve
Cylindrical gauge a x b / diameter
Stripping length
0.2 mm² to 2.5 mm²
0.2 mm² to 2.5 mm²
24 to 12
0.2 mm² to 1 mm²
0.2 mm² to 1.5 mm²
0.25 mm² to 2.5 mm²
0.25 mm² to 2.5 mm²
0.25 mm² to 1 mm²
0.5 mm² to 1.5 mm²
2.8 mm x 2.4 mm / 2.5 mm
7 mm
5.2
Material data
Material of metal parts
Note
Contact material
Terminal point surface
Surface contact area
Surface characteristics
Insulating material data
Insulating material
CTI according to IEC 60112
Flammability rating according to UL 94
Color
Glow wire flammability index GWFI according to EN 60695-2-12
Glow wire ignition temperature GWIT according to EN 60695-2-13
Temperature for the ball pressure test according to EN 60695-10-2
WEEE/RoHS-compliant, whisker-free acc. to IEC 60068-2-82/JEDEC JESD 201
Cu alloy
Sn 4 µm ... 8 µm
Sn 4 µm ... 8 µm
hot-dip tin-plated
Housing
PA
600
V0
green (6021)
850
775
125 °C
