HA2-5142-7 datasheet, PDF - EEWORLD Datasheet

HA2-5142-7: DescriptionIC,OP-AMP,DUAL,BIPOLAR,CAN,8PIN,METAL; CategoryAnalog mixed-signal IC Amplifier circuit; File Size822KB，11 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric Compare View All

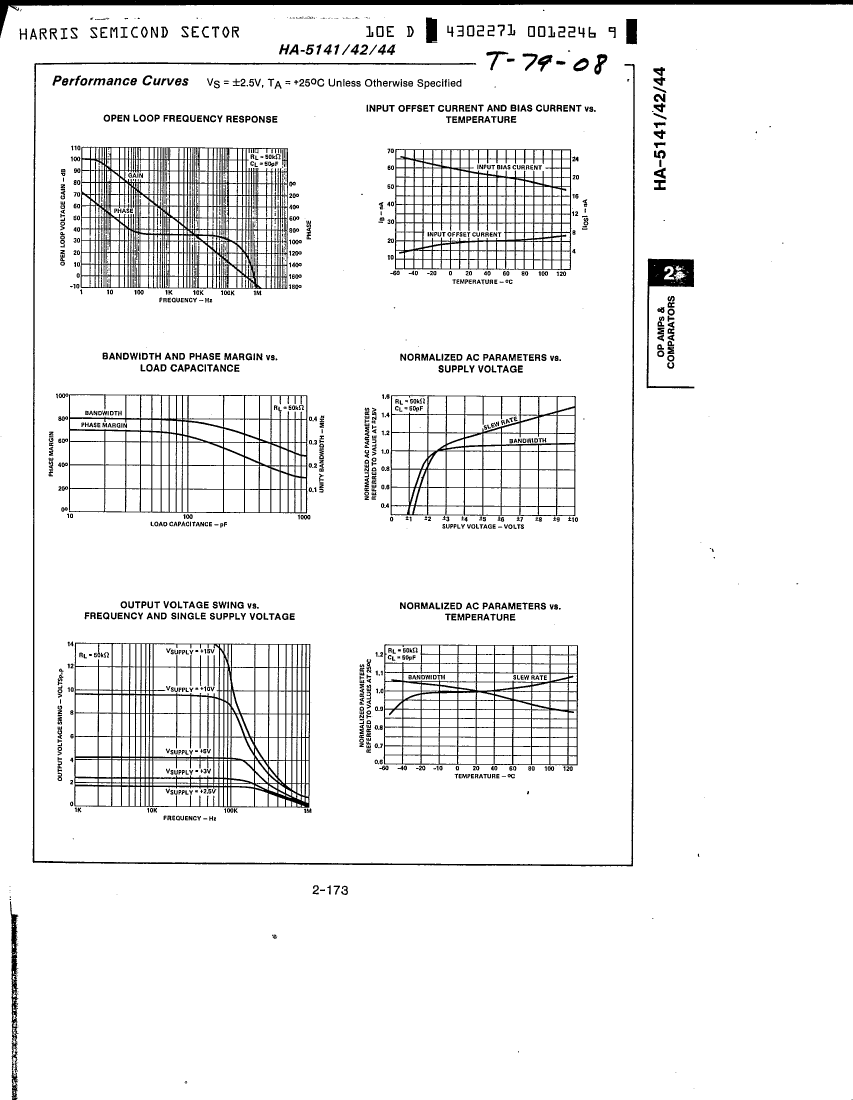

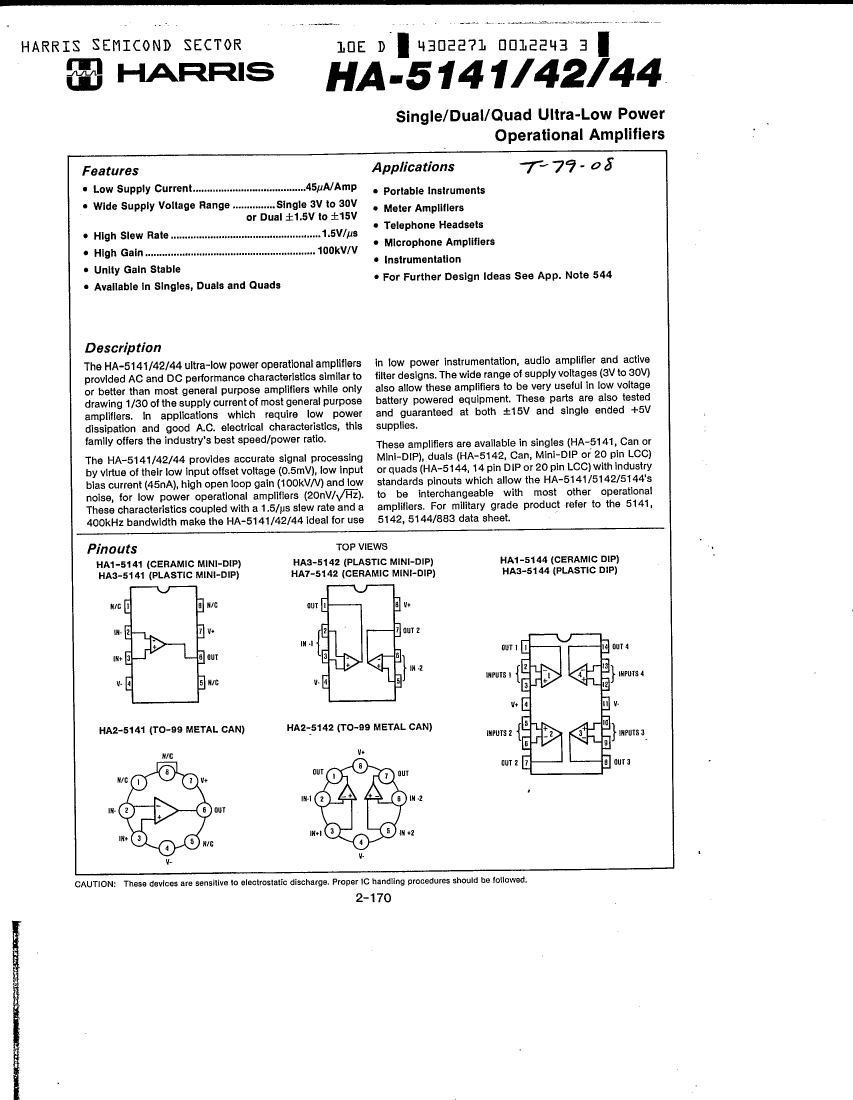

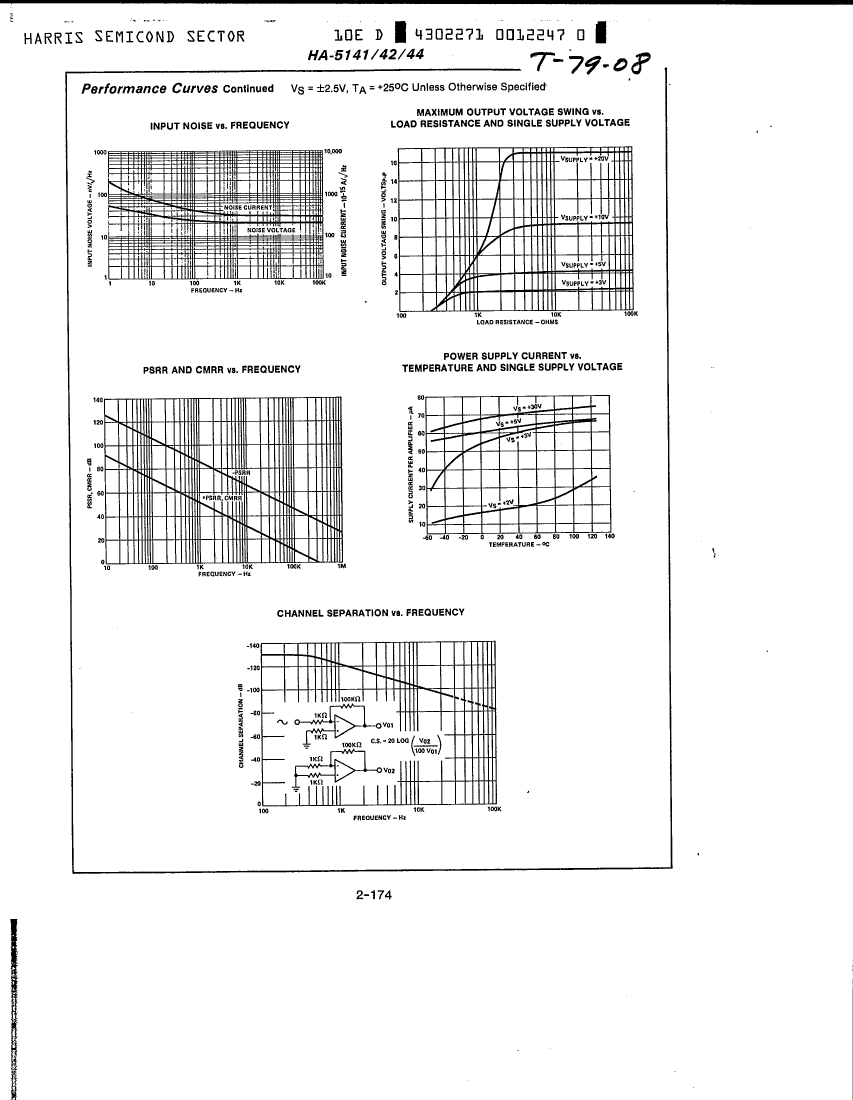

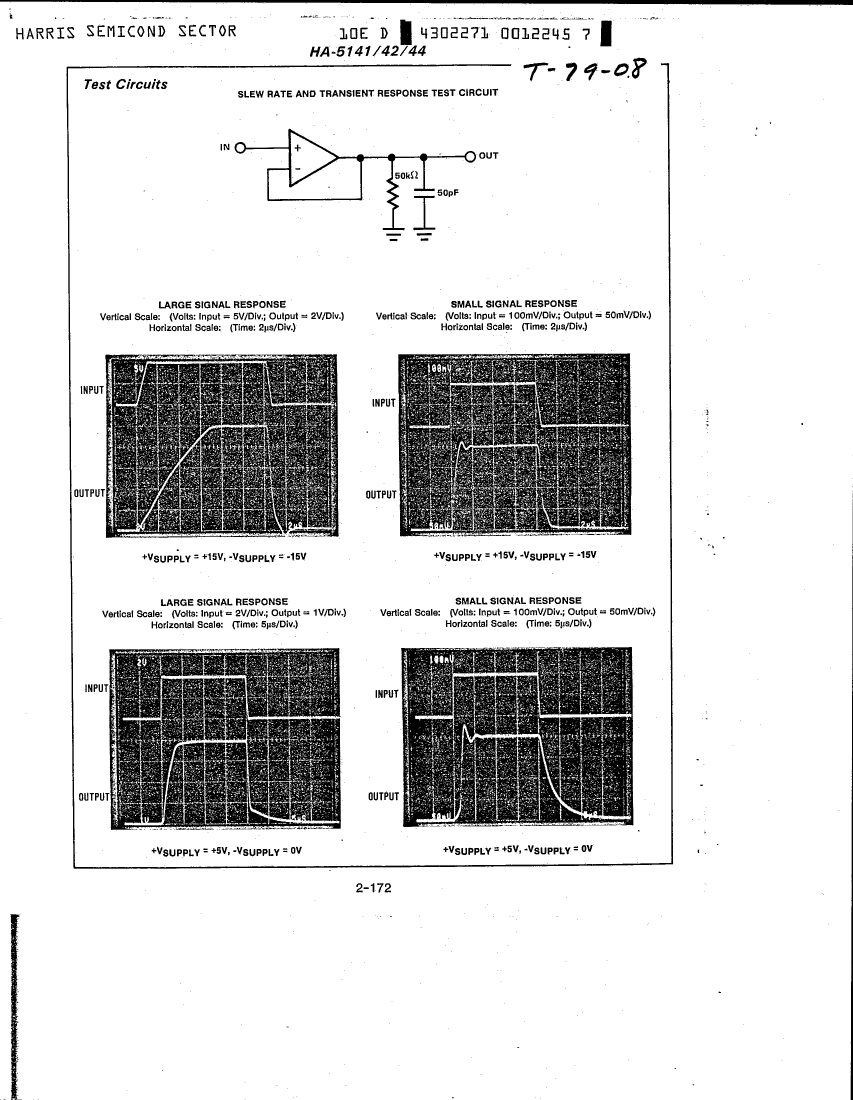

HA2-5142-7 Overview

IC,OP-AMP,DUAL,BIPOLAR,CAN,8PIN,METAL

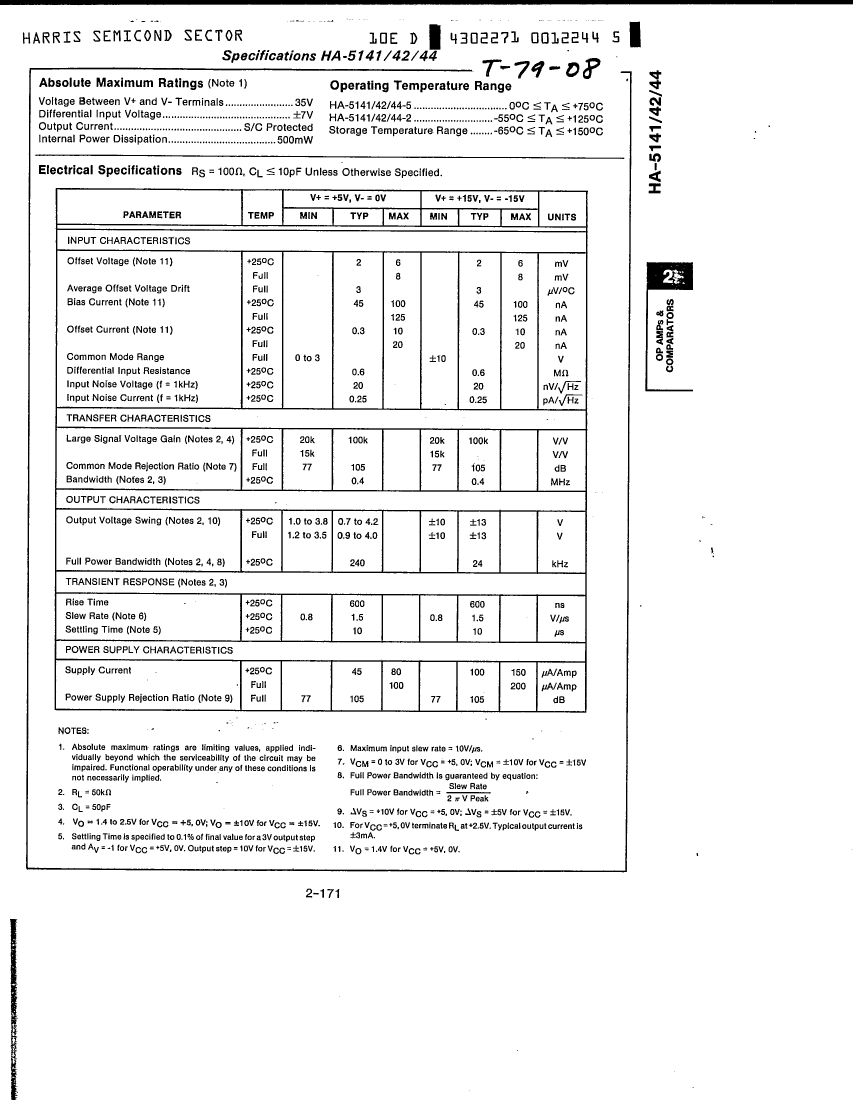

Parameter Name	Attribute value
Objectid	100022664
Parts packaging code	BCY
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.1 µA
frequency compensation	YES
Maximum input offset voltage	8000 µV
JESD-30 code	O-MBCY-W8
low-bias	NO
low-dissonance	NO
micropower	YES
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power	NO
power supply	5/+-15 V
Programmable power	NO
minimum slew rate	0.8 V/us
Nominal slew rate	1.5 V/us
Maximum slew rate	0.4 mA
Supply voltage upper limit	17.5 V
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	WIRE
Terminal location	BOTTOM
Minimum voltage gain	15000
broadband	NO

	HA2-5142-7	HA1-5144-7
Description	IC,OP-AMP,DUAL,BIPOLAR,CAN,8PIN,METAL	IC,OP-AMP,QUAD,BIPOLAR,DIP,14PIN,CERAMIC
Objectid	100022664	100029296
Parts packaging code	BCY	DIP
Contacts	8	14
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.1 µA	0.1 µA
frequency compensation	YES	YES
Maximum input offset voltage	8000 µV	8000 µV
JESD-30 code	O-MBCY-W8	R-XDIP-T14
low-dissonance	NO	NO
micropower	YES	YES
Number of functions	2	4
Number of terminals	8	14
Maximum operating temperature	70 °C	70 °C
Package body material	METAL	CERAMIC
Encapsulate equivalent code	CAN8,.2	DIP14,.3
Package shape	ROUND	RECTANGULAR
Package form	CYLINDRICAL	IN-LINE
power supply	5/+-15 V	5/+-15 V
minimum slew rate	0.8 V/us	0.8 V/us
Maximum slew rate	0.4 mA	0.8 mA
Supply voltage upper limit	17.5 V	17.5 V
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	WIRE	THROUGH-HOLE
Terminal location	BOTTOM	DUAL
Minimum voltage gain	15000	15000
