204632 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 204632

204632: DescriptionFederl. SMC-B 40-SMD-BA7-13; CategoryThe connector The connector; File Size93KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

204632 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	204632	-	-	View	Buy Now

204632 Overview

Federl. SMC-B 40-SMD-BA7-13

204632 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Board mount options	PEG
body width	0.276 inch
subject depth	0.258 inch
body length	1.2 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
Base Number Matches	1

Preview

Download Datasheet

View All

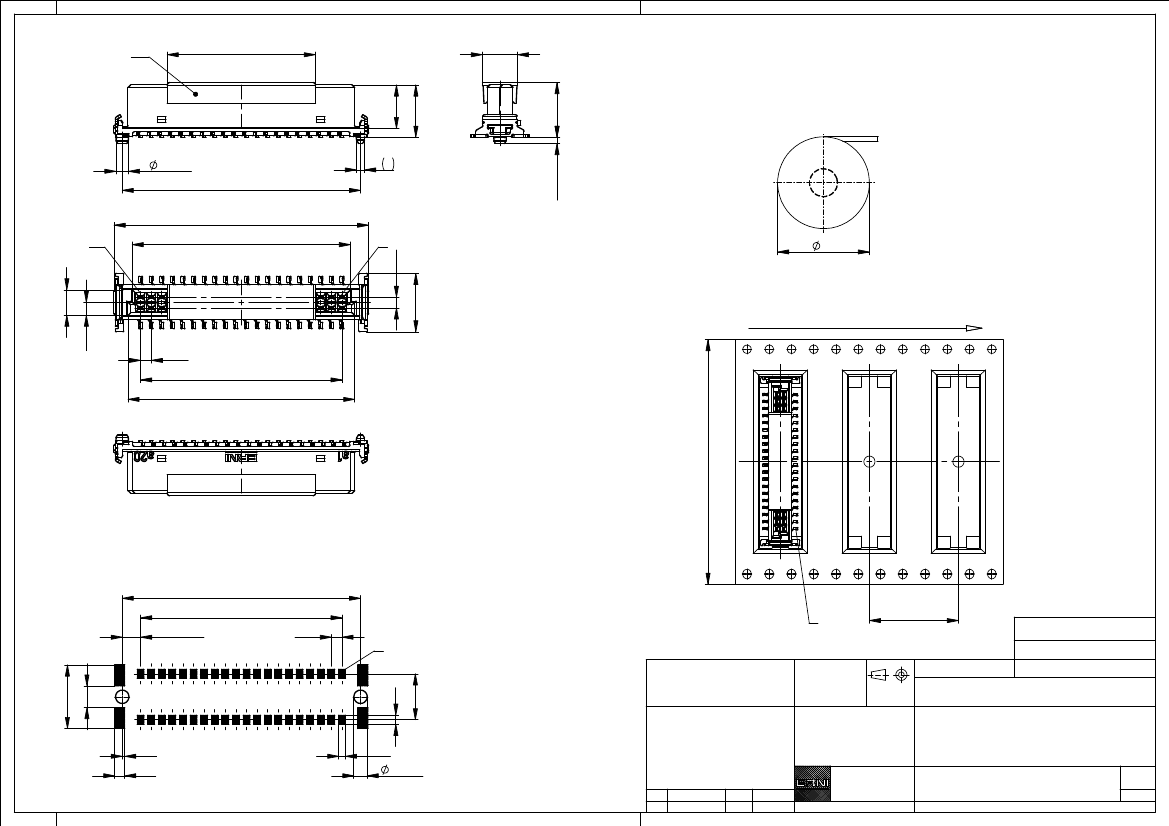

Ansaughaube

17,76

4,2

Verpackt im Gurt nach DIN IEC 60286-3

hood

Tape on Reel Packaging according to DIN IEC 60286-3

5,2

6,55

6,25

Verpackungseinheit: 280 Stück

Packaging unit: 280 pcs

1,5

-0,03

28,55

±0,03

30,48

a20

26,15

1,27

0,75

-0,05

330

3,05

Abspulrichtung -

Reel off Direction

1,55

1,27

19 x 1,27 = 24,13

27,15

Anforderungsstufe 1

Performance Level 1

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

28,55

±0,03

19 x 1,27 = 24,13

2,21

±0,03

1,27

Coplanarity Area of Termination

≤

0,1 mm

≤

0,1 mm

BA 7-13 - 8mm Bauhöhe

type7-13 - low profile

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

3:1

7,6

2,6

5,5

1,1

0,3

1,2

0,8

1,6

-0,03

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

15.01.2014

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federl. SMC-B 40-SMD-BA7-13

Female SMC-B 40-SMD-type7-13

www.ERNI.com

Class

204632

SMCB
