225362

Description
Verriegelungsmutter M12 90
CategoryThe connector    Connector bracket
File Size147KB,2 Pages
ManufacturerERNI
Websitehttp://www.erni.com
Environmental Compliance
Download Datasheet Parametric View All

225362 Online Shopping

Suppliers Part Number Price MOQ In stock
225362 - - View Buy Now

225362 Overview

Verriegelungsmutter M12 90

225362 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerERNI
Reach Compliance Codecompli
13 0.1
M12x1
B
A
14.5
4
2

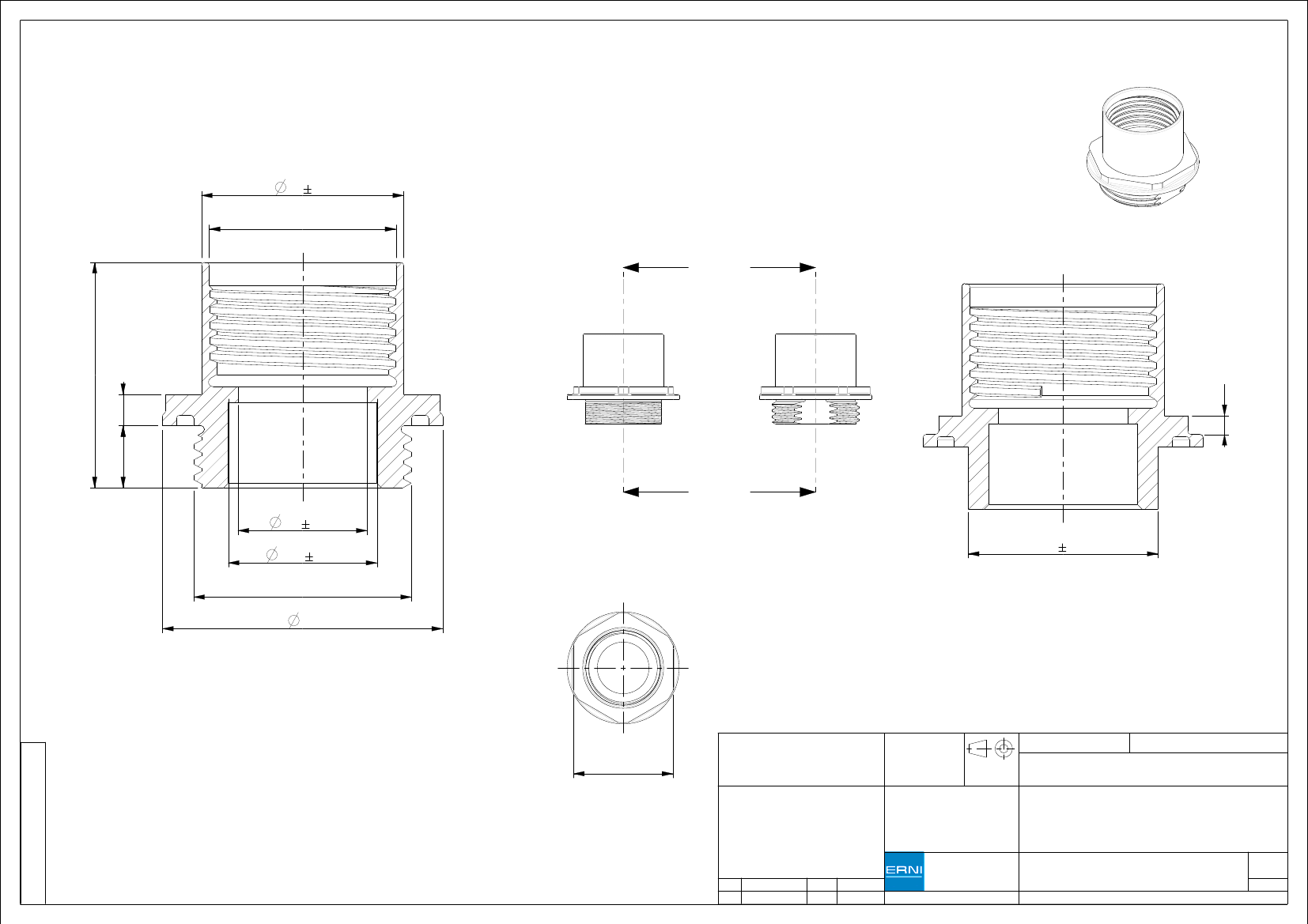

SCHNITT A-A
Maßstab 5:1
SECTION B-B
SCALE 5:1
B
8.3 0.05
9.55 0.03
M14x1
18
A
12.2 0.05
SCHNITT A-A
Maßstab 5:1
SECTION A-A
SCALE 5:1
Material Messing / Brass
Oberfläche galv. Ni über Cu
Plating Nickel over copper
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Information
.
Tolerances
All Dimensions
in mm
Scale
2:1
.
.
.
Handschriftliche Änderungen auf
CAD Zeichnungen sind nicht zulässig!
SW16
All rights reserved.
Only for information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
.
Index
.
.
Date
.
Designation
Subject to modification without
prior notice.
Drawing will not be updated.
.
Verriegelungsmutter M12 90°
Locking nut M12 90°
I
A3
.
www.ERNI.com
Class
225362
1.2
