Features
■
Multi-stage protection
■
Balanced TRIGARD
®
■
Meets test requirements of Telcordia
■
■
■
■
■
Quick response to surges
■
High energy handling
■
Reliability is improved by elimination of the
air Back-Up-Gap (BUG)
GR 974, GR1361, SR 5165 and RUS PE-80
Telcordia Analysis report DA-1843
High-speed network compatible
Binding post or optional Insulation
Displacement Connectors (IDC)
UL Listed per UL 497 (File: E53117)
2377-45 Series Digi.Guard
– MSP
®
Maximum Duty Station Protector
Bourns
®

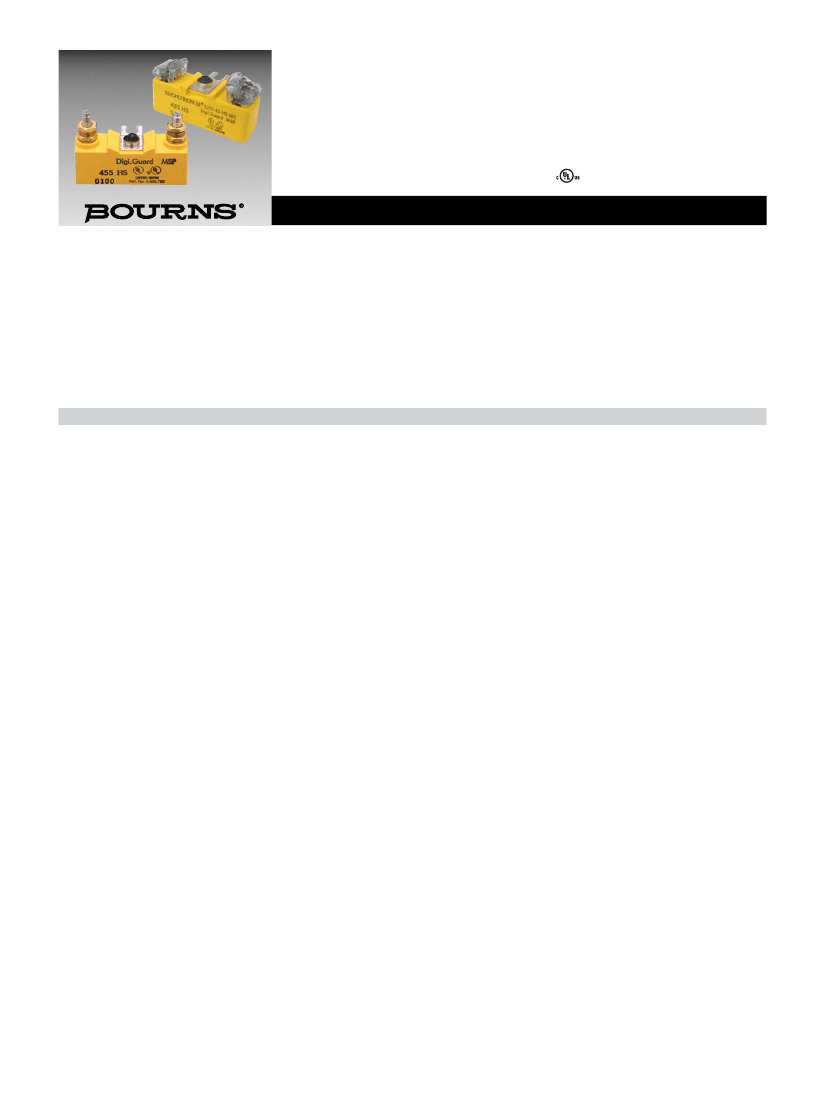

Model 455HS Multi-Stage Protector (MSP
®
) is a new generation telecommunications station protector designed to be
the best all around choice for protecting copper pair voice-band and high-speed data circuits. Combining the strengths of Gas
Discharge Tube (GDT) and solid state overvoltage protection, the Model 455HS MSP
®
integrates three advanced technologies:
our proprietary advanced GDT, precision matched metal oxide varistors (MOV), and a patented Switch-Grade Fail-Short
mechanism. The 2377 series offer superior service life, far exceeding Telcordia standards.
Bourns
®
2377-45 can be used universally for POTS and high speed data, e.g. ISDN, ADSL, ADSL2+, VDSL, VDSL2, other xDSL
protocols and high speed Ethernet. Bourns
®
MSP
®
technology provides unparalleled overvoltage protection with low loss on paired
copper communications circuits. The Model 455 is the most economical, reliable and effective choice to protect paired copper
communications circuits. The IDC version, with environmental sealant, provides additional ease of installation and protection against
corrosion.
Characteristics
Tested per IEEE C62.31, UL 497, CSA C22.2, Telcordia GR-1361 and applicable sections of Telcordia GR 974.
DC Breakdown ...................................................................................................................................... 300-400 V
AC Breakdown ........................................................................60 Hz ................................................... 300-400 V
Impulse Breakdown..................................................................100 V/μs .............................................. 600 V
1000 V/μs ............................................ 650 V
Insulation Resistance ..............................................................100 Vdc ............................................... > 1 GΩ
Insertion Loss ...........................................................................100 MHz .............................................. < 0.4 dB (Category 5)
Return Loss ..............................................................................100 MHz .............................................. > 14 dB (Category 5)
Capacitance Line to Line - Binding Post..................................1 MHz .................................................. 12 pF typical
Capacitance Line to Line - IDC ................................................1 MHz .................................................. 14 pF typical
Capacitance Line to Ground - Binding Post ............................1 MHz ................................................. 24 pF typical
Capacitance Line to Ground - IDC ...........................................1 MHz .................................................. 28 pF typical
Impulse Reset
1
......................................................................... 52 V, 260 mA ..................................... < 10 ms
3
135 V, 200 mA ..................................... < 10 ms
3
150 V, 200 mA ..................................... < 150 ms
Impulse Life Characteristics
(Per-Side, Simultaneously) .......................................................100 A, 10/1000 μs ............................... > 3000 operations
2
300 A, 10/1000 μs ............................... > 1000 operations
2
500 A, 10/1000 μs ............................... > 1000 operations
4
2,000 A, 10/250 μs ............................. > 100 operations
2
5,000 A, 20/100 μs .............................. > 10 operations
2
20,000 A, 8/20 μs ............................... > 10 operations
4
AC Life Characteristics ............................................................. 0.5 A rms continuous ......................... > 30 seconds
1 A rms, 1 second, 600 ft. cable ......... > 60 operations
1 A rms, 1 second, 1 mile cable .......... > 60 operations
10 A rms, 1 second ............................. > 20 operations
200 A rms, 11 cycles ........................... 1 operation
5
120 A rms, 0.1 second ........................ 1 operation
Life Test Criteria
Insulation Resistance Throughout the Life Test .................................................................................... 100 MΩ
Life Test Failures .................................................................................................................................... 0.0 %
Failures During Environmental Cycling w/ surges ................................................................................ 0.0 %
Fail-Short (vented or non-vented gas tube) .......................................................................................... > 30 Arms, simultaneously
Operating Temperature ......................................................................................................................... -55 to +85 °C
Notes:
1
Network Applied
2
Exceeds Telcordia (Bellcore) GR 1361
3
Surpasses Telcordia GR 974
4
RUS (REA) PE-80
5
Protector may short to ground
Line to Line voltage is approximately 1.8 to 2 times the stated Line to Ground breakdown voltage.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
2377-45 Series Digi.Guard
– MSP
®
Maximum Duty Station Protector

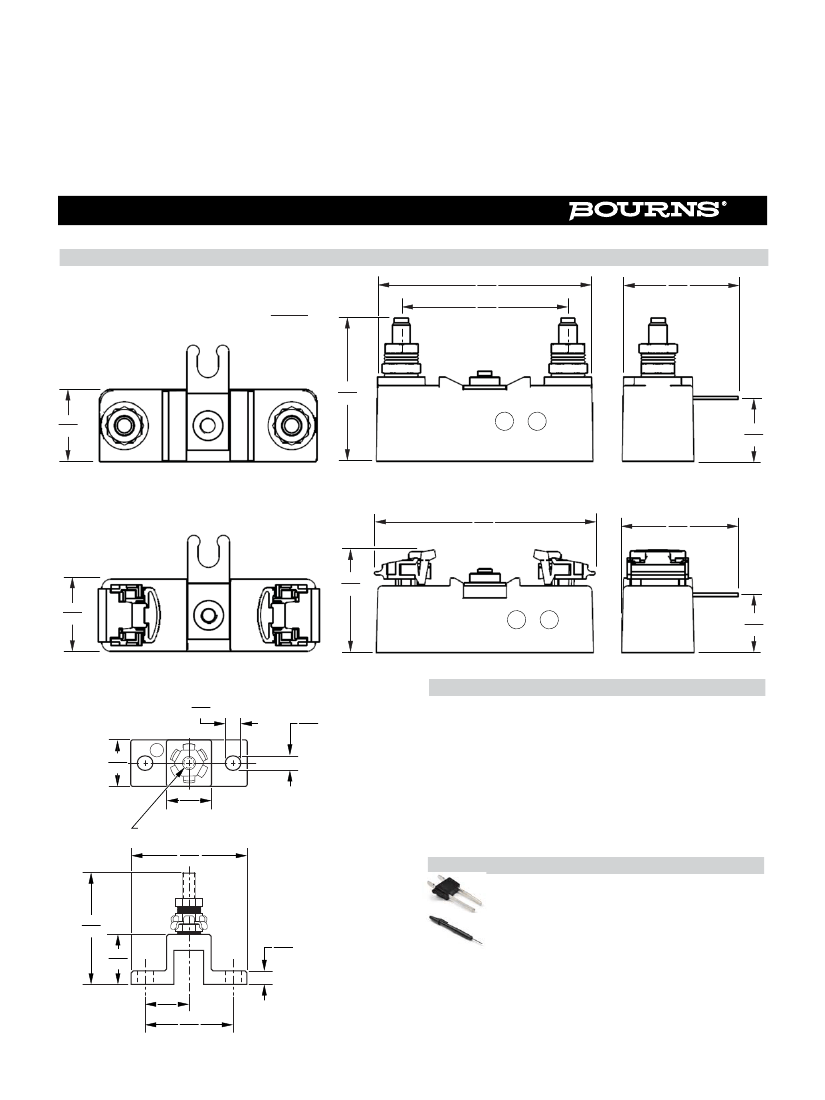

Product Dimensions
2377-45-HS, 2377-45-BC
57.15
(2.25)
43.94
(1.73)
30.6
(1.20)
DIMENSIONS:
MM
(INCHES)
37.08
(1.46)
19.05
(0.75)
UL
C
UL
16.26
(.64)
2377-45-HS-IDC, 2377-45-BC-IDC
58.16
(2.29)
30.6
(1.20)
26.9
(1.06)
19.05
(0.75)
UL
C
UL
14.73
(1.58)
2372-02 Ground Mounting Stud (order separately)
5.59
(.22)
4.98
(.196)
How To Order
2377-45-HS .......................................... Binding Post Connectors
2377-45-BC* .......................................... Balanced Capacitance,
Binding Post Connectors
2377-45-HS-IDC ............... Insulation Displacement Connectors
2377-45-BC-IDC* ................................... Balanced Capacitance,
Insulation Displacement Connectors
* BC versions for xDSL systems that require Tip-to-Ground and
Ring-to-Ground capacitive balance of
≤1
pF.
J
16.26
(.64)
16.26
(.64)
10-32 UNF-2A
THREAD
41.91
(1.65)
Related Products
80052 ................................................Test Clip for IDC
33.37
(1.55)
17.78
(.70)
4.57
(.18)
80053 ...................................... Insulation Tool for IDC
15.75
(.62)
31.75
(1.25)
REV. N 03/15
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
