254769: Description4 CONTACT(S), MALE, CIRCULAR CONNECTOR, IDC; CategoryThe connector The connector; File Size83KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

254769 Overview

4 CONTACT(S), MALE, CIRCULAR CONNECTOR, IDC

254769 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	POLARIZED
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

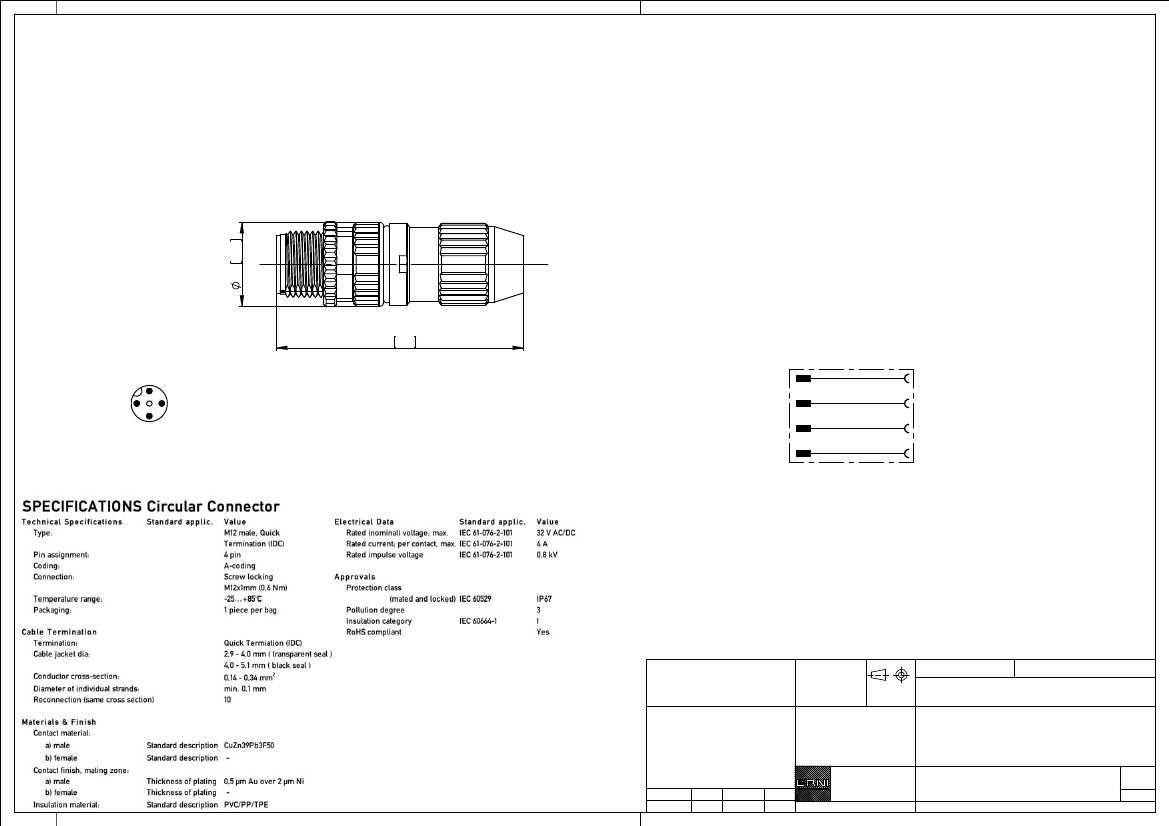

TECHNISCHE SKIZZE /

Technical sketch

Stecker M12 /

M12 male

4-polig /

4 pin

15,1 0,59

Quick termination

technique (IDC)

STROMLAUFPLAN /

Schematic diagram

45 1,75

Anschluss für:

connection for:

flexible conductor brown (+)

flexible conductor white (O)

Litze braun (+)

Ansicht: Steckgesicht; Kontaktbelegung /

View: mating face; pin assignment

2 Litze weiss (Ö)

4 Litze schwarz (S)

flexible conductor black (S)

3 Litze blau (-)

flexible conductor blue (-)

Artikel-Nr. /

Part No.

254768

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm [in]

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

19.03.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

CCA M12, 4pin / IDC

A-coding

www.ERNI.com

Class

254769

CCA
