SM03
8700 E. Thomas Road
Scottsdale, AZ 85251
Tel: (480) 941-6300
Fax: (480) 947-1503
thru
SM36
TVSarray™ Series
™
DESCRIPTION (500 watt)
This 3 pin Transient Voltage Suppresor offers 2 unidirectional or 1
bidirectional protection at the board level from voltage transients
caused by electrostatic discharge (ESD) as defined by IEC 1000-4-2,
electrical fast transients (EFT) per IEC 1000-4-4.
Unidirectional
protection, can be accomplished by connecting the
Input/Output lines to pins 1 and 2 and pin 3 to common or ground. In a
bidirectional
configuration pin 1 or pin 2 is connected to the
Input/Output line while the opposite pin is connected to common or
ground. Pin 3 is not connected. The SM03 thru SM36 product provides board level protection from static
electricity and other induced voltage surges that can damage sensitive circuitry.
These TRANSIENT VOLTAGE SUPPRESSOR (TVS) Diode Arrays protect 3.0/3.3 Volt components such
as DRAM’s, SRAM’s, CMOS, HCMOS, HSIC, and low voltage interfaces up to 36 Volts. Because of the
physical size, weight and protection capabilities, this product is ideal for use in but not limited to
miniaturized electronic equipment such as hand-held instruments, computers, computer peripherals and
cell phones.
FEATURES
•
•
•
•
Protects 3.0/3.3 up through 36V Components
Protects 2 Unidirectional or 1 Bidirectional line
Provides electrically isolated protection
SOT-23 Packaging
PACKAGING
•
•
•
Tape & Reel EIA Standard 481
7 inch reel 5,000 pieces
13 inch reel 10,000 pieces
MAXIMUM RATINGS
•
•
•
•
Operating Temperatures: -55ºC to +150ºC
Storage Temperature: -55ºC to +150ºC

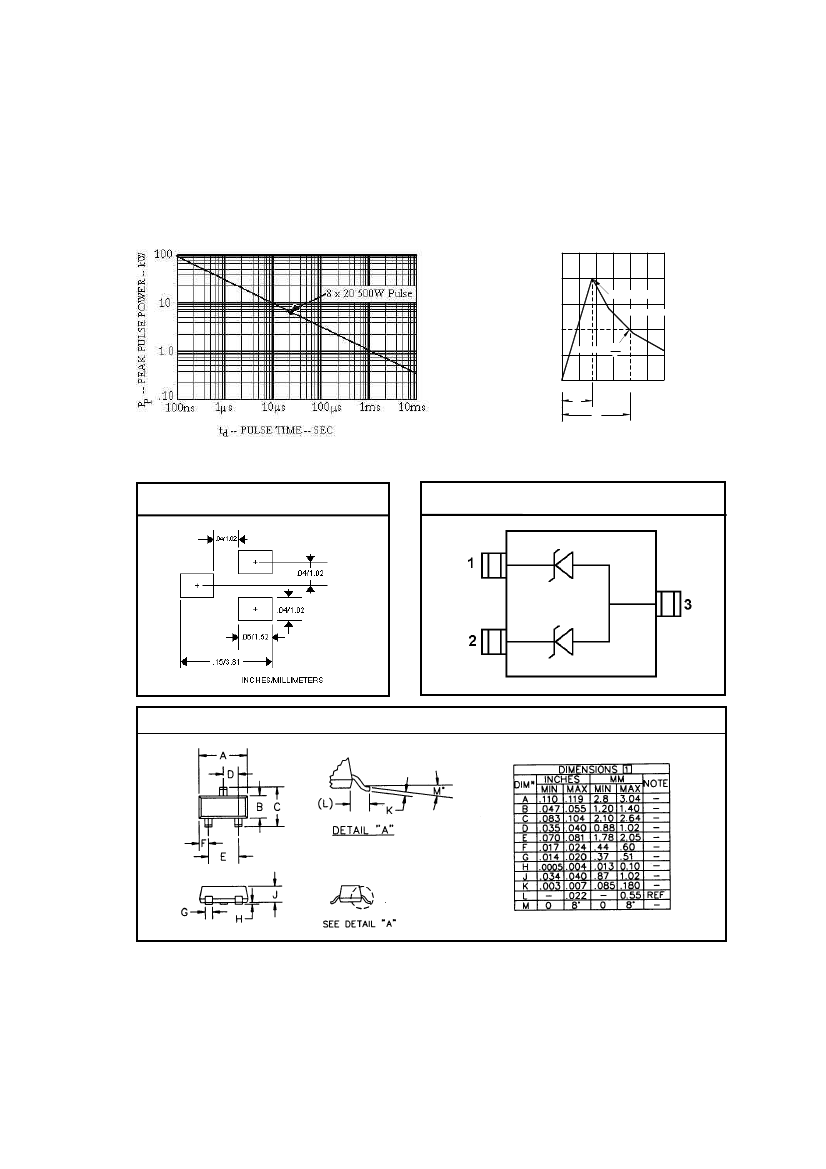

SM03 thru SM36 have a Peak Pulse Power: 500 Watts
(8/20
µsec,
Figure 1)
Pulse Repetition Rate: <.01%
MECHANICAL
•
•
•
Molded SOT-23 Surface Mount
Weight: .014 grams (approximate)
Body Marked with device number
ELECTRICAL CHARACTERISTICS PER LINE @ 25ºC Unless otherwise specified
STAND
OFF
VOLTAGE
V
WM
VOLTS
MAX
SM03
SM05
SM12
SM15
SM24
SM36
M03
M05
M12
M15
M24
M36
3.3
5.0
12.0
15.0
24.0
36.0
BREAKDOWN
VOLTAGE
V
BR
@1 mA
VOLTS
MIN
4
6.0
13.3
16.7
26.7
40.0
CLAMPING
VOLTAGE
V
C
@ 1 Amp
(FIGURE 2)
VOLTS
MAX
7
9.8
19
24
43
60
CLAMPING
VOLTAGE
V
C
@ 5 Amp
(FIGURE 2)
VOLTS
MAX
9
11
24
30
55
75
LEAKAGE
CURRENT
I
D
@ V
WM
µA
MAX
200
100
1
1
1
1
CAPACITANCE
@0V, 1 MHz
C
Pin 1-3 or 2-3
pF
MAX
800
600
185
140
88
88
CAPACITANCE
@0V, 1 MHz
C
Pin 1-2
pF
MAX
400
300
93
70
44
39
PART
NUMBER
DEVICE
MARKING
NOTE:
Transient Voltage Suppression (TVS) product is normally selected based on its stand off Voltage V
WM
. Product
selected voltage should be equal to or greater than the continuous peak operating voltage of the circuit to be protected.
MSC1378.PDF
ISO 9001 CERTIFIED
REV F 1/21/2000
