Datasheet> All Categories > Passive components> 28F0121-0SR-10

Preview

28F0121-0SR-10: Description1 FUNCTIONS, 0.5 A, FERRITE CHIP; CategoryPassive components; File Size256KB，3 Pages; ManufacturerETC2

Download Datasheet Parametric View All

28F0121-0SR-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	28F0121-0SR-10	-	-	View	Buy Now

28F0121-0SR-10 Overview

1 FUNCTIONS, 0.5 A, FERRITE CHIP

28F0121-0SR-10 Parametric

Parameter Name	Attribute value
Number of functions	1
Processing package description	ROHS COMPLIANT, EIA STD PACKAGE SIZE 1206, 2 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Installation type	SURFACE MOUNT
terminal coating	MATTE TIN (118) OVER NICKEL (59)
Manufacturer Series	HZ
filter type	FERRITE CHIP
Rated current	0.5000 A
Maximum DC resistance	0.3000 ohm
impedance	600 ohm

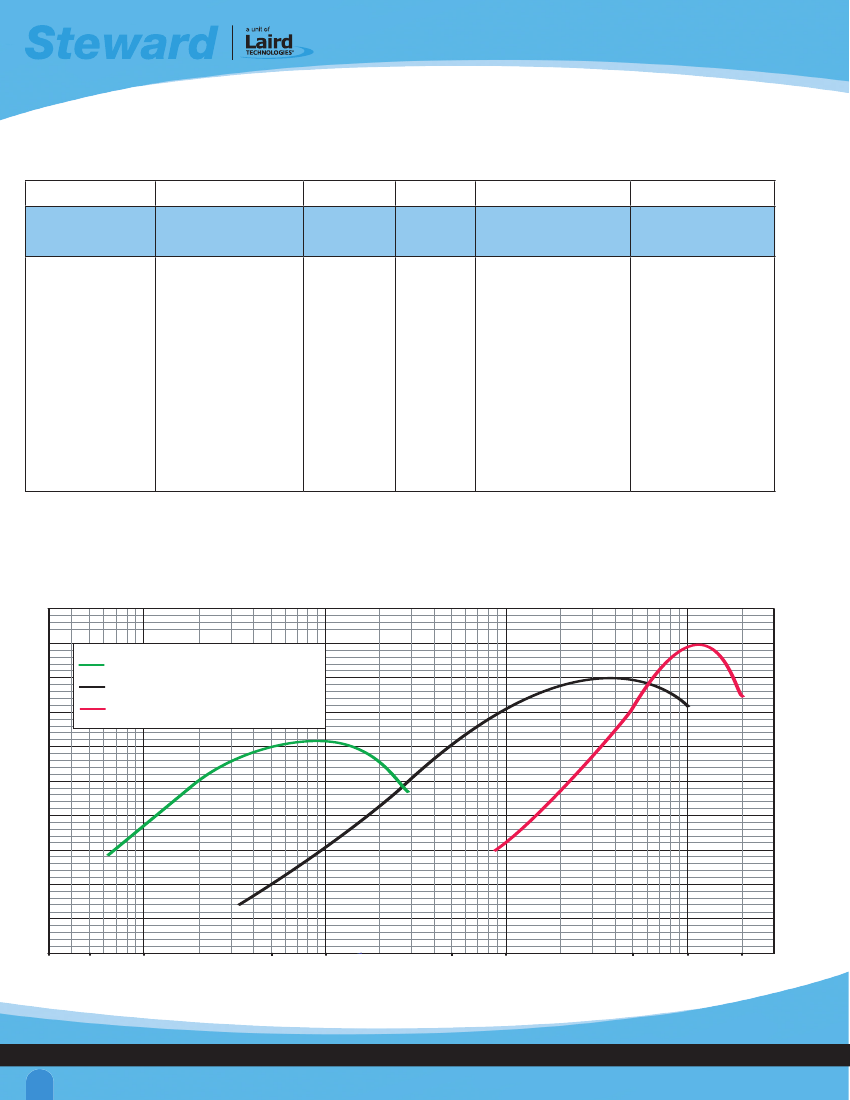

Preview

Download Datasheet

View All

Part Number Nomenclature

Board Level Products

HI2220P601R-10

(Part number example in

BOLD)

HI

Product Series

Code

2220

Part Size

Code

P

Rated

Continuous

Current Code

601

Impedance ( Z )

or Inductance ( L )

Value Code

R

Packaging

Code

-10

Addtional

Description

HI

= High Current Chip Beads

(>3,000 mA)

MI

= Mid Current Chip Beads

(>1,000 mA to <3,000 mA)

LI

= Low Current Chip Beads

(<1,000 mA, <400 W Z)

HZ

= High Impedance

Chip Beads

(<1,000 mA, >400 W Z)

HF

= High Frequency

Chip Beads

LF

= Low Frequency

Chip Beads

HR

= High Bias Retention

Chip Beads

(>3,000 mA)

CC

= CAN-Bus Common Mode

CM

= Common Mode

DI

= Power Inductor

DA

= Multiline Array Chip

IC

= Chip Inductor

0402

0603

0805

1206

1210

1612

1806

1812

1922

2021

2220

2520

2545

2722

3032

3312

3322

3421

3822

4545

4732

5022

5441

6032

A

< 100 mA

B

= 200 mA

C

= 300 mA

D

= 400 mA

E

= 500 mA

F

= 600 mA

G

= 700 mA

H

= 800 mA

I

= 900 mA

J

= 1,000 mA

K

= 1,500 mA

L

= 2,000 mA

M

= 2,500 mA

N

= 3,000 mA

O

= 3,500 mA

P

= 4,000 mA

Q

= 4,500 mA

R

= 5,000 mA

S

= 5,500 mA

T

= 6,000 mA

U

= 7,000 mA

V

= 8,000 mA

W

= 9,000 mA

X

= 10,000 mA

Y

= 15,000 mA

Z

> 20,000 mA

First two numbers

B

= Bulk Standard

are Significant Digits.

Thru-Hole

The last number

Packaging

indicates how many

zeros are added to

R

= Tape & Reel

the significant digits

Standard SMT

for impedance.

Package

Impedance

Examples

100

= 10 OHMS

101

= 100 OHMS

102

= 1,000 OHMS

202

= 2,000 OHMS

060

= 6 OHMS

600

= 60 OHMS

601

= 600 OHMS

Inductance

Examples

470

= 47 nH

471

= 470 nH

472

= 4,700 nH

473

= 47,000 nH

474

= 470,000 nH

475

= 4,700,000 nH

00

= Legacy Part

Contains Lead

-10

= Lead Free

Standard Catalog

Part

-11 to -99

= Non Standard

or Custom Part

29F088-SR-0

(Part number example in

BOLD)

29

F

0818

-1

S

Material Type

Product Type Code

Part Size

Code

Minor

Dimension

Code

Board Mounting

Style

R

Packaging Code

-10

Additional Part

Description

28 & 29

= Broad

Band Material

35

= Low Frequency

Material

C

= Choke

L

= Axial Leaded

Bead

F

= Assembled

Part

J

= Radial Leaded

Bead

Unique Part

Identifier or

Significant

Dimension

Height or

Length

Variation

S

= Surface Mount

T

= Thru-Hole

O

= Bulk Standard

R

= Tape & Reel

Standard SMT

Package

-10

= Lead Free

Standard

Catalog

Part

-11 to -99

=

Non Standard or

Custom Part

www.steward.com

SIP-BRO-PNN-0707

www.lairdtech.com
