2N6935 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N6935

2N6935: DescriptionSilicon NPN Power Transistor; CategoryDiscrete semiconductor The transistor; File Size86KB，3 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric Compare View All

2N6935 Overview

Silicon NPN Power Transistor

2N6935 Parametric

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow
Maximum collector current (IC)	0.6 A
Collector-emitter maximum voltage	60 V
JESD-30 code	R-PSFM-T3
Number of components	4
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

ioduets, Line.

TELEPHONE: (973) 376-2922

(212)227-6005

FAX: (973) 376-8960

20 STERN AVE.

SPRINGFIELD, NEW JERSEY 07081

U.S.A.

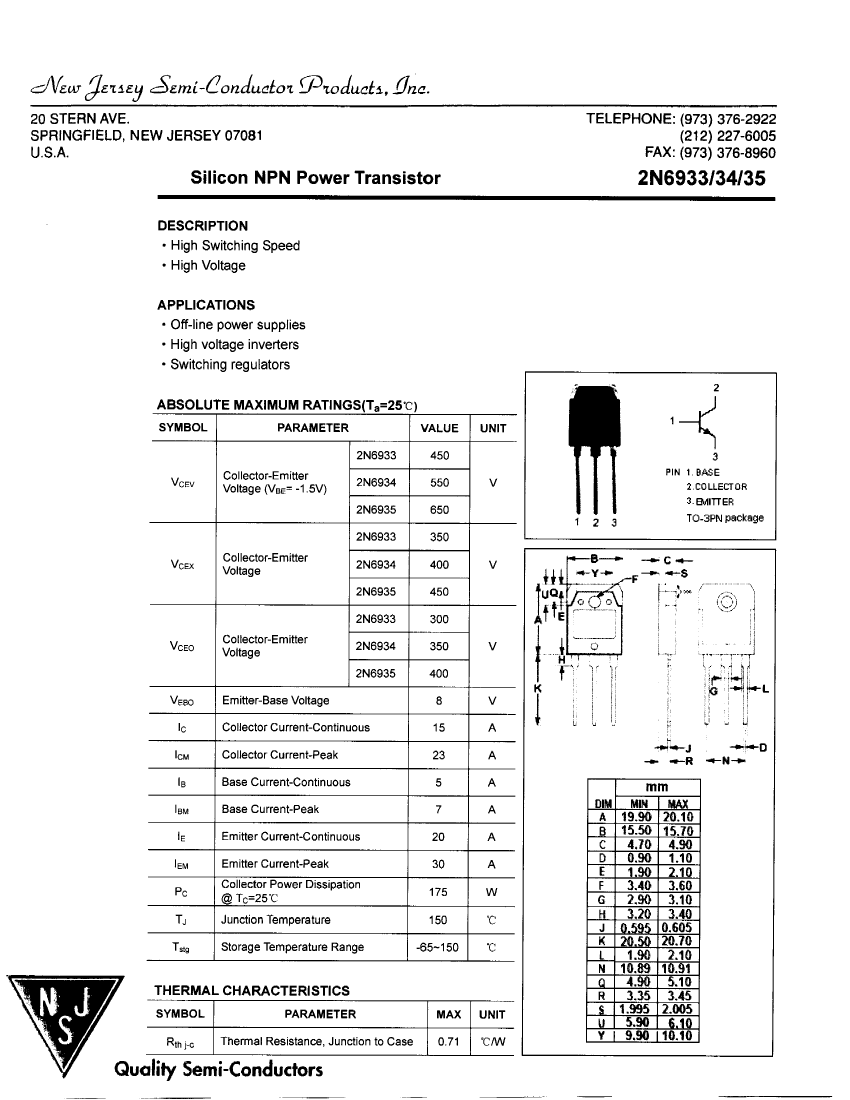

Silicon NPN Power Transistor

DESCRIPTION

• High Switching Speed

• High Voltage

APPLICATIONS

• Off-line power supplies

• High voltage inverters

Switching regulators

ABSOLUTE MAXIMUM RATINGS(T

=25'C)

SYMBOL

PARAMETER

2N6933

VCEV

Collector-Emitter

Voltage (V

= -1.5V)

2N6934

2N6935

2N6933

VCEX

Collector-Emitter

Voltage

2N6934

2N6935

2N6933

VCEO

Collector-Emitter

Voltage

2N6934

2N6935

VEBO

ICM

IBM

IEM

Tstg

2N6933/34/35

VALUE

450

550

650

350

400

450

300

350

400

175

150

-65-150

UNIT

PIN 1.BASE

COLLECTOR

3. EMITTER

2 i

TO-3PN package

¥-*•

.1. ,

'•

I t7

"i r

'ir

i i

Emitter-Base Voltage

Collector Current-Continuous

Collector Current-Peak

Base Current-Continuous

Base Current-Peak

Emitter Current-Continuous

Emitter Current-Peak

Collector Power Dissipation

@ T

=25"C

Junction Temperature

Storage Temperature Range

i i

i !'

WIN

DIM

MAX

19.90

20.10

15.50 15.70

4.70 4.90

0.90

1.10

1.90 2.10

3.40 3.60

2.90 3.10

3.20 3.40

0.595 0.605

20.50 20.70

1.90

2.10

10.89 10.91

•c

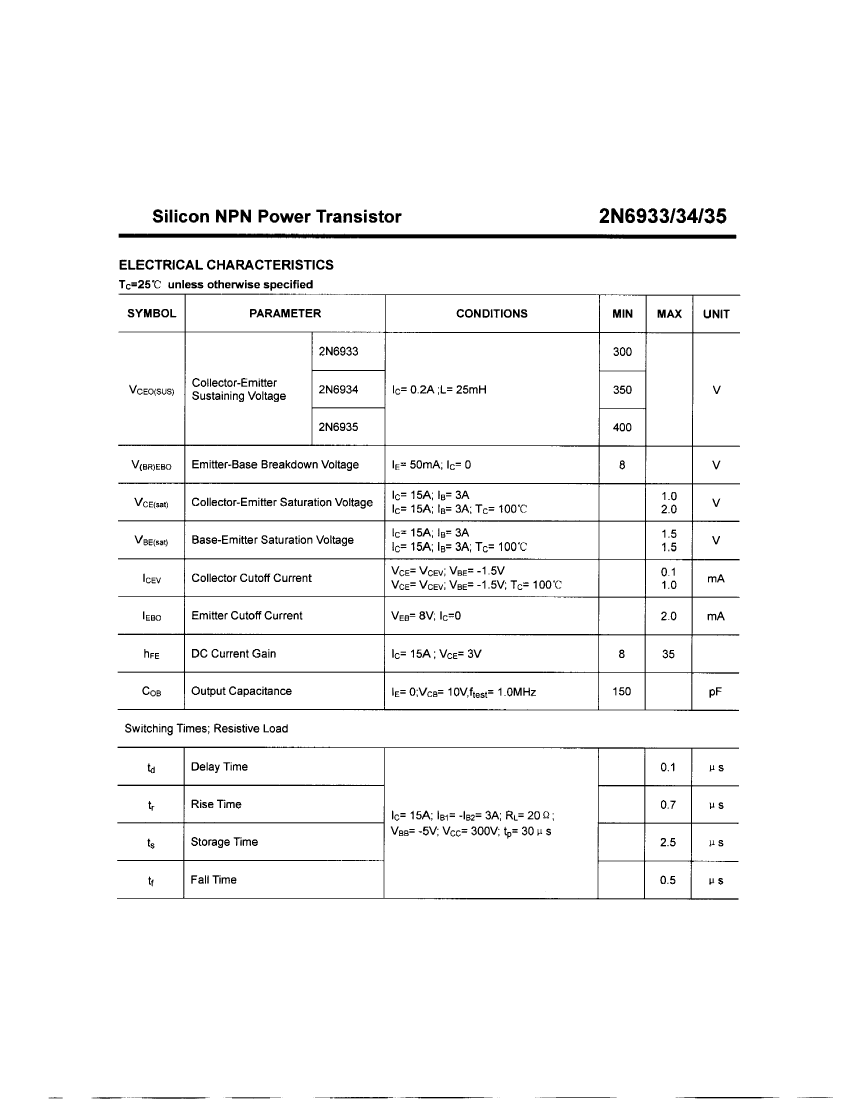

THERMAL CHARACTERISTICS

SYMBOL

Rth j-c

PARAMETER

Thermal Resistance, Junction to Case

MAX

0.71

UNIT

•c/w

4.90 5.10

3.35 3.45

1.995

2.005

5.90

'i.10

9.90

10.10
