2SA1060_15: DescriptionSilicon PNP Power Transistors; File Size62KB，4 Pages; ManufacturerJinmei; Websitehttp://www.jmnic.com/

Download Datasheet View All

2SA1060_15 Overview

Silicon PNP Power Transistors

Preview

Download Datasheet

View All

Product Specification

www.jmnic.com

Silicon PNP Power Transistors

2SA1060

DESCRIPTION

・With

TO-3PN package

・Complement

to type 2SC2484

・High

collector power dissipation

APPLICATIONS

・High

power audio frequency amplifier

PINNING

Base

Collector;connected to

mounting base

Emitter

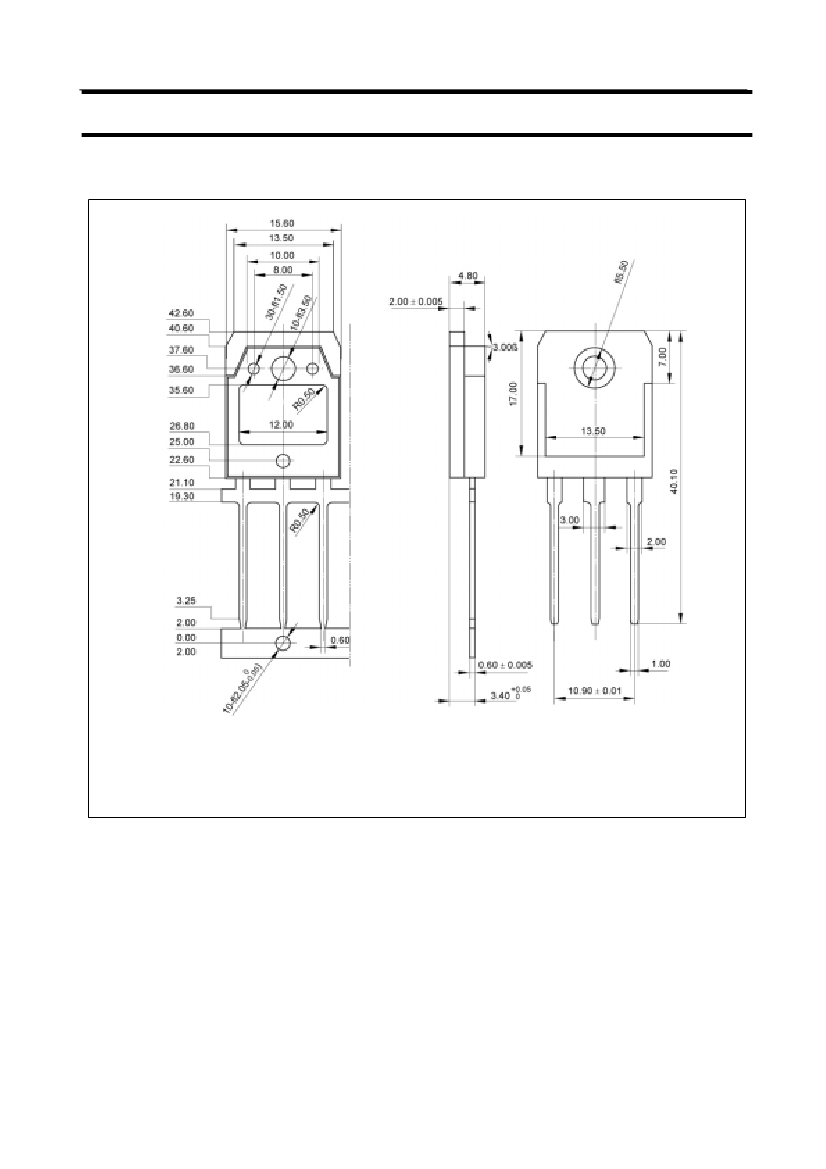

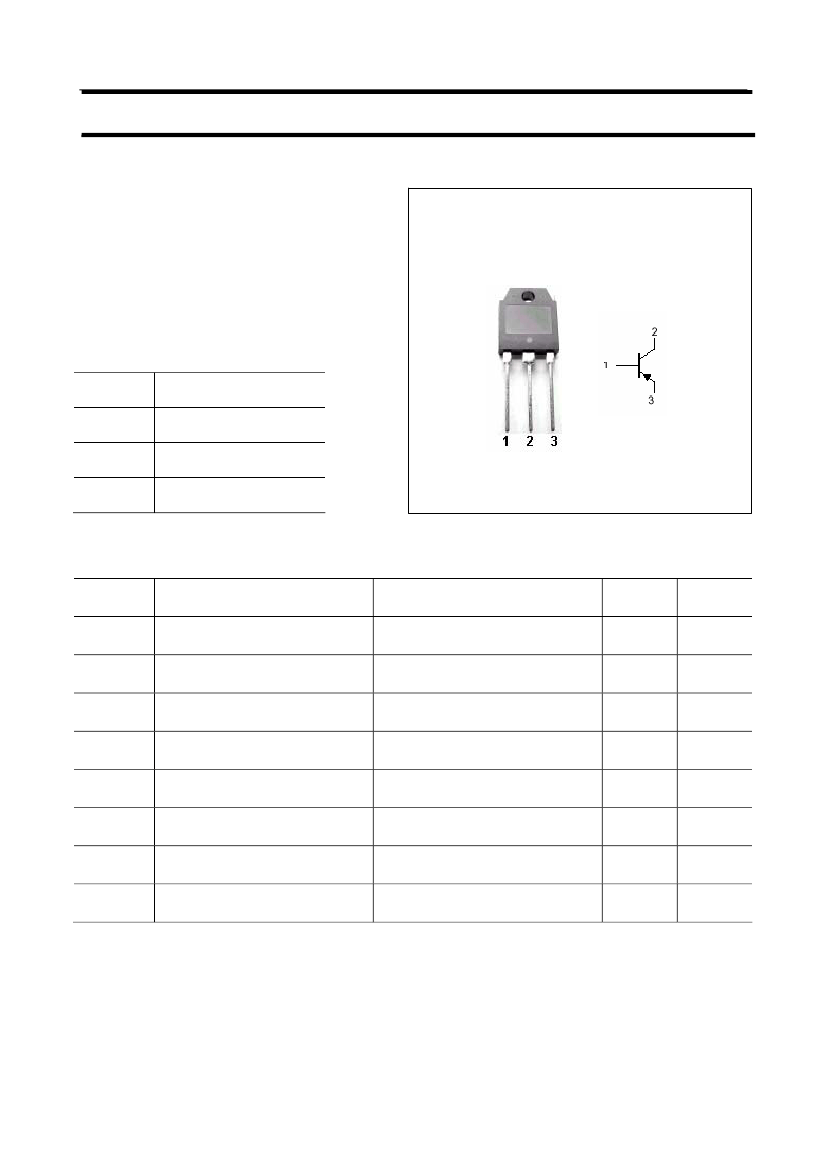

Fig.1 simplified outline (TO-3PN) and symbol

DESCRIPTION

Absolute maximum ratings (Ta=25

℃

)

SYMBOL

CBO

CEO

EBO

stg

PARAMETER

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current (DC)

Collector current-peak

Collector power dissipation

Junction temperature

Storage temperature

=25℃

CONDITIONS

Open emitter

Open base

Open collector

VALUE

-80

-6

-5

-8

150

-55~150

UNIT

℃
