2SA1312-GR

Description
Audio Frequency Low Noise Amplifier Applications
CategoryDiscrete semiconductor    The transistor
File Size317KB,6 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric View All

2SA1312-GR Overview

Audio Frequency Low Noise Amplifier Applications

2SA1312-GR Parametric

Parameter NameAttribute value
Parts packaging codeSOT-23
package instructionSMALL OUTLINE, R-PDSO-G3
Contacts3
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresLOW NOISE
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage120 V
ConfigurationSINGLE
Minimum DC current gain (hFE)200
JEDEC-95 codeTO-236
JESD-30 codeR-PDSO-G3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature125 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typePNP
Maximum power dissipation(Abs)0.15 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal locationDUAL
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)100 MHz
VCEsat-Max0.3 V
Base Number Matches1
2SA1312
TOSHIBA Transistor
Silicon PNP Epitaxial Type (PCT process)
2SA1312
Audio Frequency Low Noise Amplifier Applications
High voltage: V
CEO
=
−120
V
Excellent h
FE
linearity: h
FE
(I
C
=
−0.1
mA)/ h
FE
(I
C
=
−2
mA)
h= 0.95 (typ.)
High h
FE:
h
FE
= 200~700
Low noise: NF (2) = 0.2dB (typ.), 3dB (max) at f = 1 kHz
Complementary to 2SC3324
Small package
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
−120
−120
−5
−100
−20
150
125
−55~125
Unit
V
V
V
mA
mA
mW
°C
°C

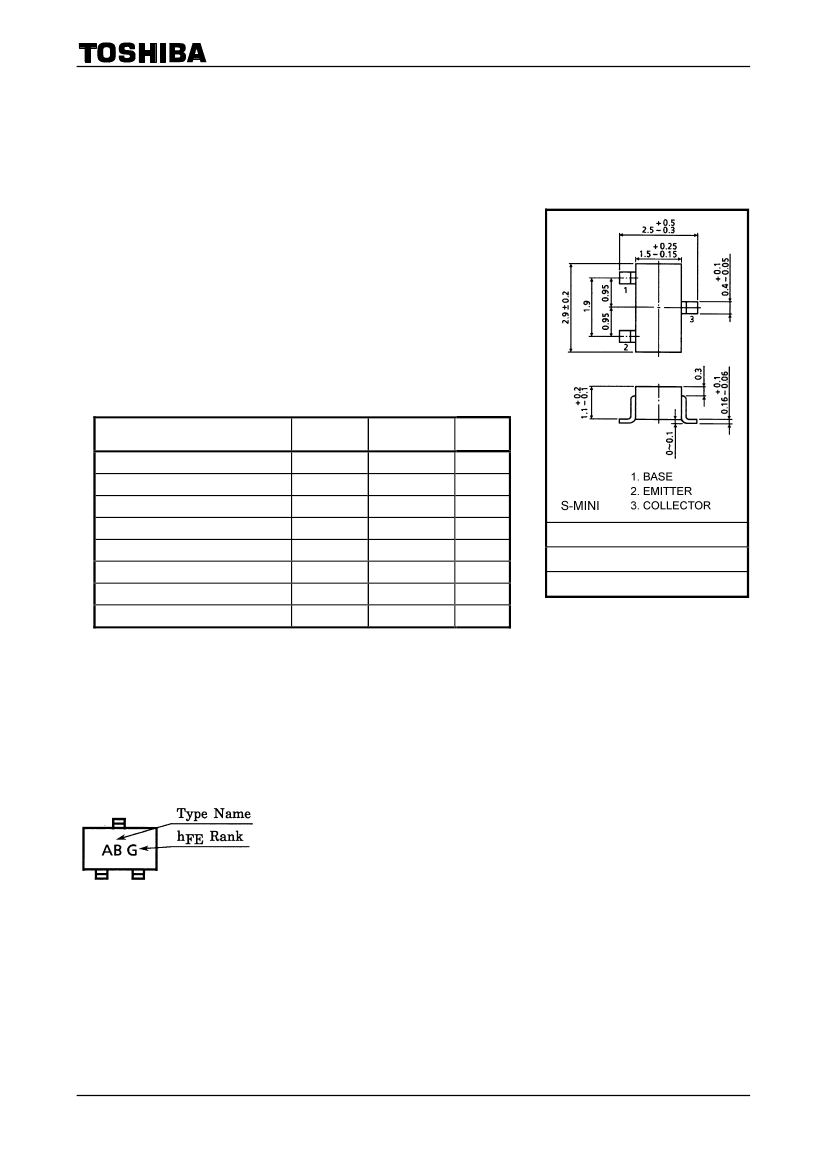

JEDEC
JEITA
TOSHIBA
TO-236MOD
SC-59
2-3F1A
Weight: 0.012 g (typ.)
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature, etc.) may cause this product to
decrease in the reliability significantly even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Marking
1
2007-11-01
