2SA1633_15: DescriptionSilicon PNP Power Transistors; File Size62KB，4 Pages; ManufacturerJinmei; Websitehttp://www.jmnic.com/

Download Datasheet View All

2SA1633_15 Overview

Silicon PNP Power Transistors

Preview

Download Datasheet

View All

JMnic

Product Specification

Silicon PNP Power Transistors

2SA1633

DESCRIPTION

・With

TO-247 package

・Complement

to type 2SC4278

・High

current and high power capability

APPLICATIONS

・For

audio output applications

PINNING

Base

Collector;connected to

mounting base

Emitter

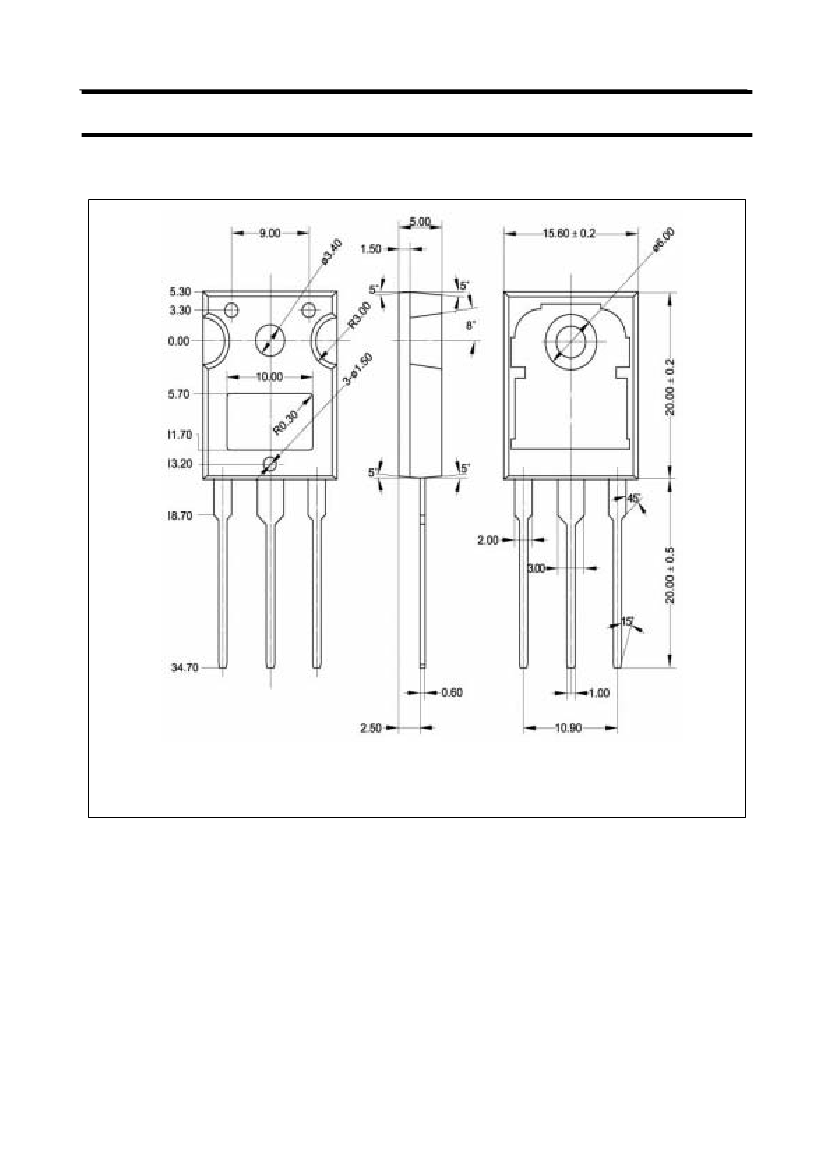

Fig.1 simplified outline (TO-247) and

DESCRIPTION

・

Absolute maximum ratings(Tc=25

℃

)

SYMBOL

CBO

CEO

EBO

stg

PARAMETER

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Total power dissipation

Junction temperature

Storage temperature

=25℃

CONDITIONS

Open emitter

Open base

Open collector

VALUE

-150

-6

-10

100

150

-55~150

UNIT

℃
