JMnic
Product Specification
Silicon NPN Power Transistors
2SC2580
DESCRIPTION
・With
TO-3PN package
・Complement
to type 2SA1105
・High
power dissipation
・High
current capability
APPLICATIONS
・Audio
power amplifier
・DC-DC
converter
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter

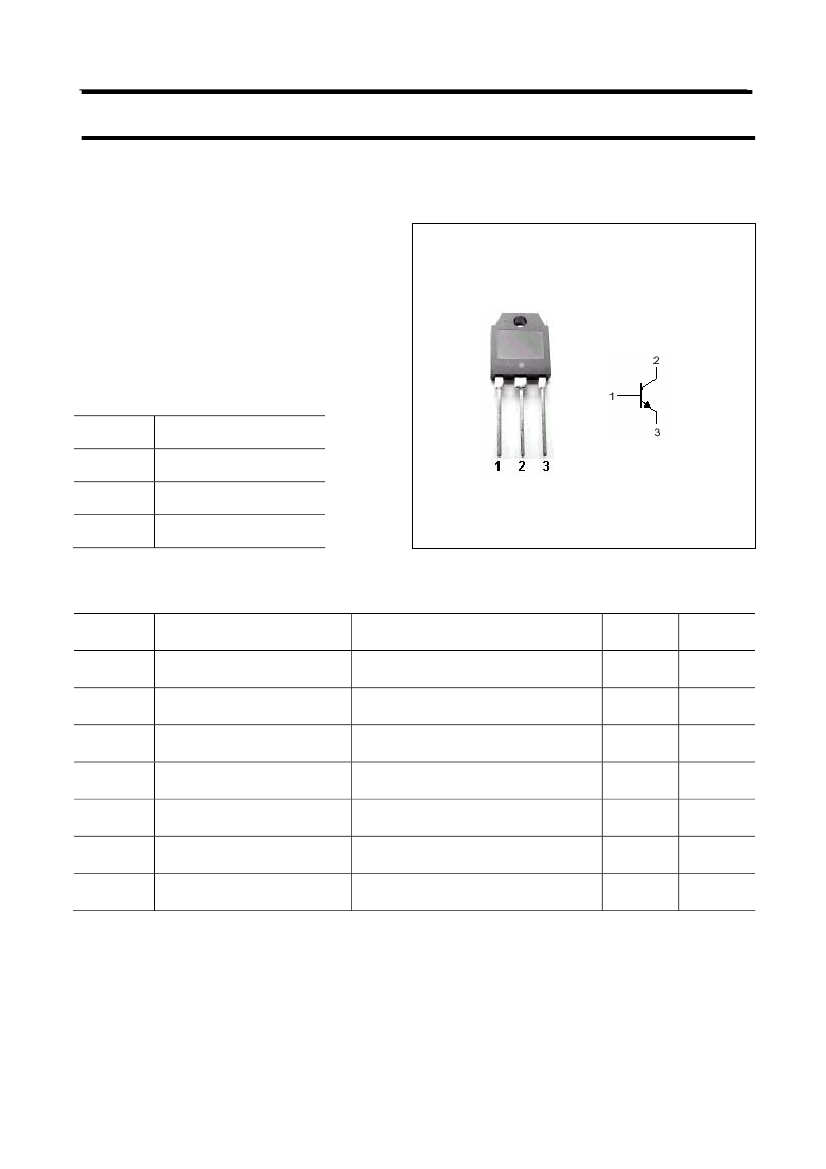

Fig.1 simplified outline (TO-3PN) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=
℃)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25℃
Open emitter
Open base
Open collector
CONDITIONS
VALUE
180
120
6
9
90
150
-55~150
UNIT
V
V
V
A
W
℃
℃
JMnic
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
MIN
2SC2580
TYP.
MAX
UNIT
V
(BR)CEO
Collector-emitter breakdown voltage
I
C
=25mA ;I
B
=0
120
V
V
(BR)CBO
Collector-base breakdown voltage
I
C
=1mA ;I
E
=0
180
V
V
(BR)EBO
Emitter-base breakdown voltage
I
E
=1mA ;I
C
=0
6
V
V
CEsat
Collector-emitter saturation voltage
I
C
=5A; I
B
=0.5A
2.5
V
μA
I
CBO
Collector cut-off current
V
CB
=180V; I
E
=0
100
I
EBO
Emitter cut-off current
V
EB
=6V; I
C
=0
100
μA
h
FE
DC current gain
I
C
=3A ; V
CE
=4V
50
f
T
Transition frequency
I
C
=0.5A ; V
CE
=10V
20
MHz
2
JMnic
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2SC2580
Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
3
