517054 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 517054

517054: DescriptionDIELECTRIC RESONATOR OSCILLATOR; CategoryPassive components oscillator; File Size242KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

517054 Overview

DIELECTRIC RESONATOR OSCILLATOR

517054 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
frequency stability	5%
Maximum harmonic level	15 dBc
Installation features	CHASSIS MOUNT
offset frequency	1 kHz
Maximum operating frequency	14000 MHz
Minimum operating frequency	13000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	MECHANICAL TUNED DRO OSCILLATOR
Output Power	17 dBm
phase noise	-68 dBc/Hz
physical size	1.5mm x 1.2mm x 0.75mm
power change	3 dB
Maximum slew rate	90 mA
Maximum supply voltage	20 V
Minimum supply voltage	15 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

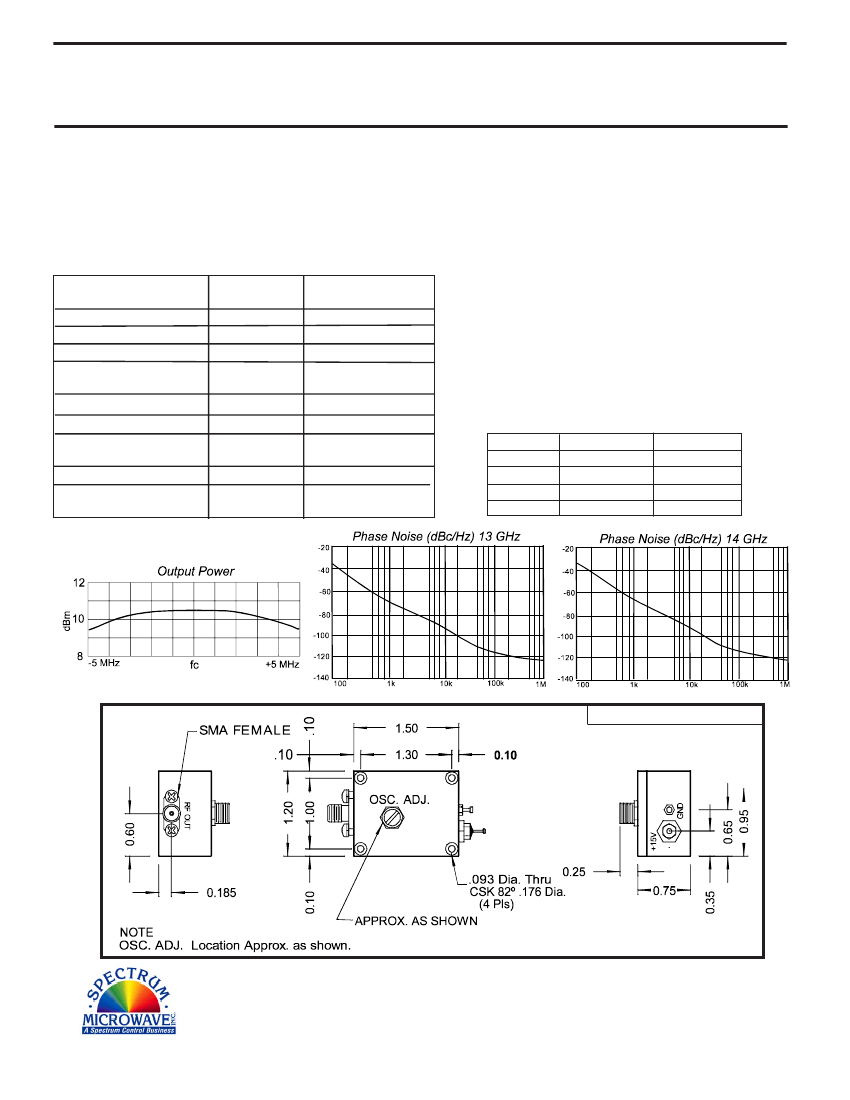

DIELECTRIC RESONATOR

OSCILLATOR

Features

Low Noise

Rugged Construction for Extreme Environmental Conditions

High Frequency Stability

Mechanically Tuned

Specifications

CHARACTERISTIC

Frequency

Output Power (dBm)

Power Flatness (dBm)

Frequency Stability

(ppm)/ ºC

Harmonics (dBc)

Spurious (dBc)

Phase Noise (13 GHz)

@ 100 KHz (dBc/Hz)

Load VSWR

Power

Vdc

Model 517054

13 GHz to 14 GHz

Absolute Maximum (No Damage) Ratings

TYPICAL

MIN/MAX

Ta = +25 ºC Ta = -55ºC to +85 ºC

13 - 14 GHz

+13.0

+/- 1.5

-20

-80

-119

1.5:1

+15

13 - 14 GHz

+10.0 Min.

+/- 3.0

3 to 5

-15 Max.

-80 Max.

-117 Max.

2.0:1 Max.

+15 to +20

90 Max.

Ambient Operating Temperature ............. -55ºC to +100 ºC

Storage Temperature .............................. -62ºC to +125 ºC

Case Temperature ............................................... +125 ºC

DC Voltage ....................................................... +24 Volts

Maximum DC Tuning Voltage ............................ +20 Volts

Minimum DC Tuning Voltage .................................. 0 Volts

NOTE: Care should always be taken to effectively ground the case of

each unit.

Typical Performance Data

Phase Noise

Offset

1 kHz

10 kHz

100 kHz

Typical

13 GHz

-68

-95

-119

Typical

14 GHz

-65

-92

-117

Mechanical Outline

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

5/5/10

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
