611228 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 611228

611228: DescriptionPHASE LOCKED OSCILLATOR; CategoryPassive components oscillator; File Size88KB，3 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

611228 Overview

PHASE LOCKED OSCILLATOR

611228 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Maximum harmonic level	-20 dBc
Installation features	CHASSIS MOUNT
offset frequency	1 kHz
Nominal operating frequency	1500 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	MECHANICAL TUNED DRO OSCILLATOR
Output Power	9 dBm
phase noise	-115 dBc/Hz
physical size	76.2mm x 57.15mm x 12.7mm
power change	1 dB
Maximum slew rate	160 mA
Nominal supply voltage	15 V
surface mount	NO

Preview

Download Datasheet

View All

PHASE LOCKED OSCILLATOR

MODEL

611228

(1500 MHz)

Features

Low Phase Noise: -134 dBc/Hz @ 100 kHz

Low Spurious: -70 dBc Typical

Internal Reference Design

Environmental Screening Available

Specifications

CHARACTERISTIC

Frequency (MHz)

Output Power (dBm)

Variation Over

Temperature (dBm)

Spurious (dBc)

Phase Noise (dB)

TYPICAL

Ta= 25

ºC

1500

+10

+0.75

-70

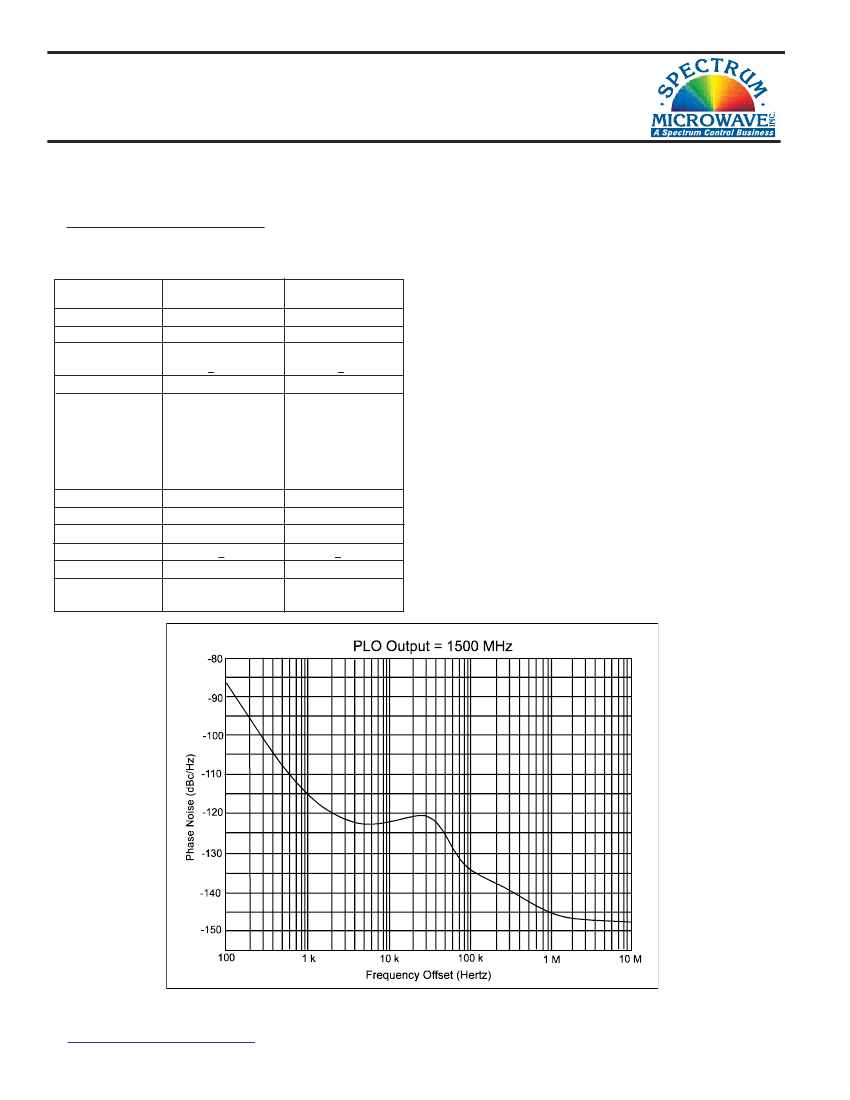

-86 dBc/Hz @ 100 Hz

-115 dBc/Hz @ 1 kHz

-123 dBc/Hz @ 10 kHz

-121 dBc/Hz @ 30 kHz

-134 dBc/Hz @ 100 kHz

-145 dBc/Hz @ 1 MHz

1.5

-25

TTL (High=Locked)

-55

ºC

150

MIN/MAX

Ta = -20

ºC

to +70

ºC

1500

-60

Description

Spectrum Microwave’s Series 600 Phase Locked

Oscillators use a High “Q” Coaxial Resonator in

the resonant circuit. The circuit is lightly loaded to

obtain the lowest phase noise possible.

The resonator is soldered to a printed circuit

board and well grounded to minimize modulation

sidebands during shock and vibration.

Buffer amplifiers are used to provide isolation

from load VSWRs; Regulators filter noise on

the DC input voltage.

External reference models are also available.

A lock indicator circuit is provided to signal an

out-of-lock condition.

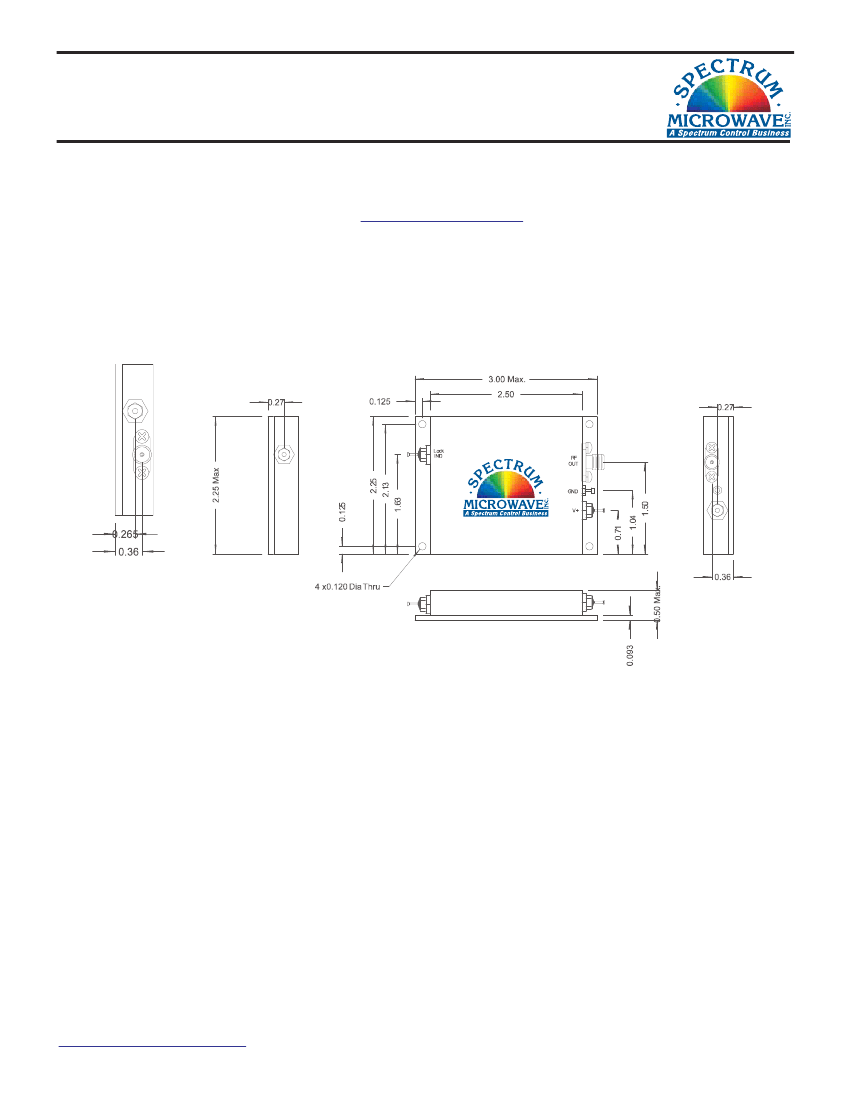

VSWR

Harmonics (dBc)

Lock Indicator

Stability (ppm)

Storage Temperature

Supply Power DC

2.0

-20

TTL (Low=Unlocked)

+15

+125

ºC

160

Spectrum Microwave, Inc.

www.SpectrumMicrowave.com

2707 Black Lake Place Phila, Pa. 19154

PH: 215-464-4000 FAX: 215-464-4001

Rev.

9/22/08
