PRODUCT
SPECIFICATION
FEATURES
•
•
•
•
•
PHASE SHIFTER
DC TO 18, 26.5 GHz, COAXIAL
Type SMA Connectors Standard
Options from DC to 18 GHz
High Performance, Trough line Style Structure
Military Grade Materials and Processing
-40 to + 125ºC Operating Temperature Range
66,67,6805 SERIES
SPECIFICATIONS
Model
Frequency Range (GHz)
Phase Shift, min (
o
/GHz)
Phase Shift, min (
o
/GHz/Shaft Turn)
Insertion Phase, nom at Min Phase Setting (
o
/GHz)
Number of Turns, min
VSWR max
DC to 18 GHz
18 to 26.5 GHz
Insertion Loss, max (dB)
DC to 18 GHz
18 to 26.5 GHz
Power
Average (Watts)
Peak (Watts)
Time Delay, nom (nsec) @ Min Phase Setting
Connectors
Weight
Ounces
Grams
NOTES:
1. 1 Degree per GHz of Phase Shift equals 2.78 picoseconds of time delay.
2. Average and Peak Power are given at ambient temperature and altitude with Type SMA Connectors. Power is further limited by the power
threshold level of selected connector style.
6605
DC-18
40
1.5
140
26
1.60
NA
1.50
NA
100
1000
0.4
SMA
2.5
71
6705
DC-18
40
1.5
140
26
1.60
NA
1.50
NA
100
1000
0.4
SMA
3.75
106
6805
DC-18
40
1.5
150
26
1.60
NA
1.50
NA
100
1000
0.4
SMA
3.0
85
6705K
DC-26.5
40
1.5
130
26
1.60
2.00
1.25
1.75
100
1000
0.4
K
3.75
106
Spectrum Microwave 8 Executive Drive Hudson, NH 03051
Phone: 603-459-1600 Fax: 603.459.1605
www.SpectrumMicrowave.com
PRODUCT
SPECIFICATION

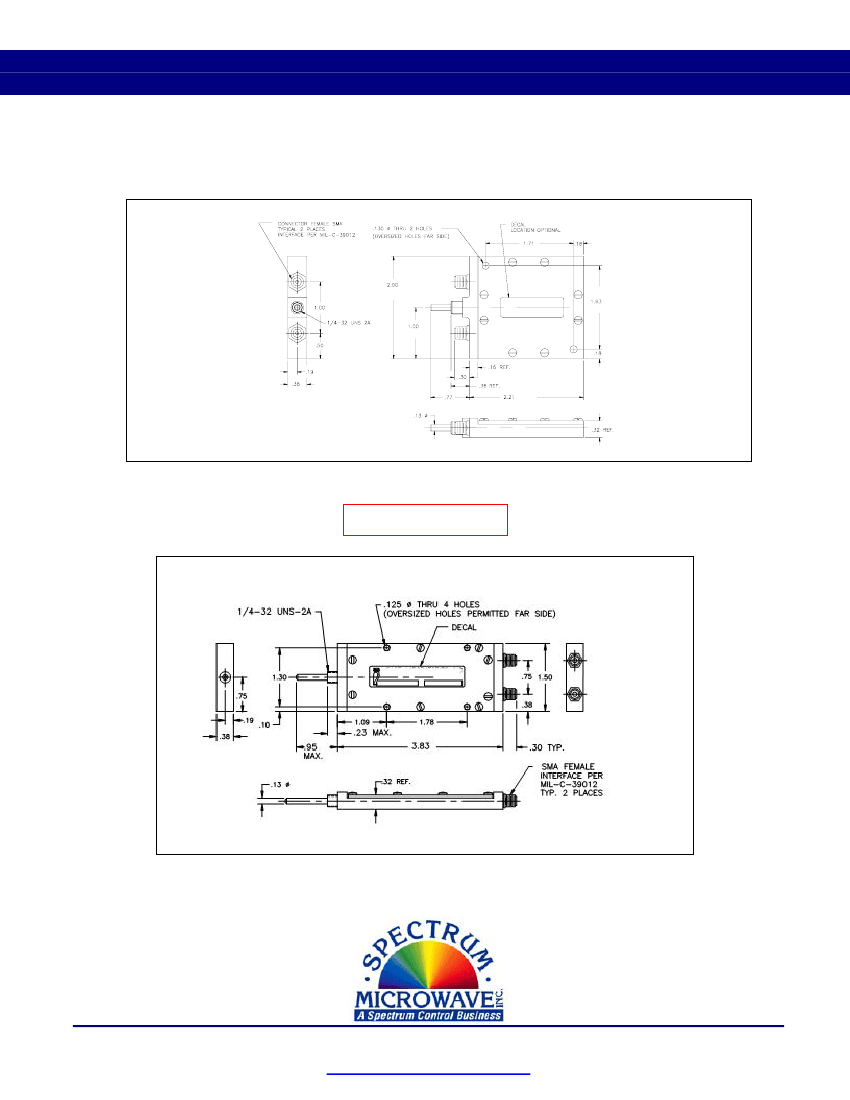

OUTLINE DRAWINGS
MODEL 6605
PHASE SHIFTER
DC TO 18, 26.5 GHz, COAXIAL
MODELS 6705, 6705K
Spectrum Microwave 8 Executive Drive Hudson, NH 03051
Phone: 603-459-1600 Fax: 603.459.1605
www.SpectrumMicrowave.com
PRODUCT
SPECIFICATION

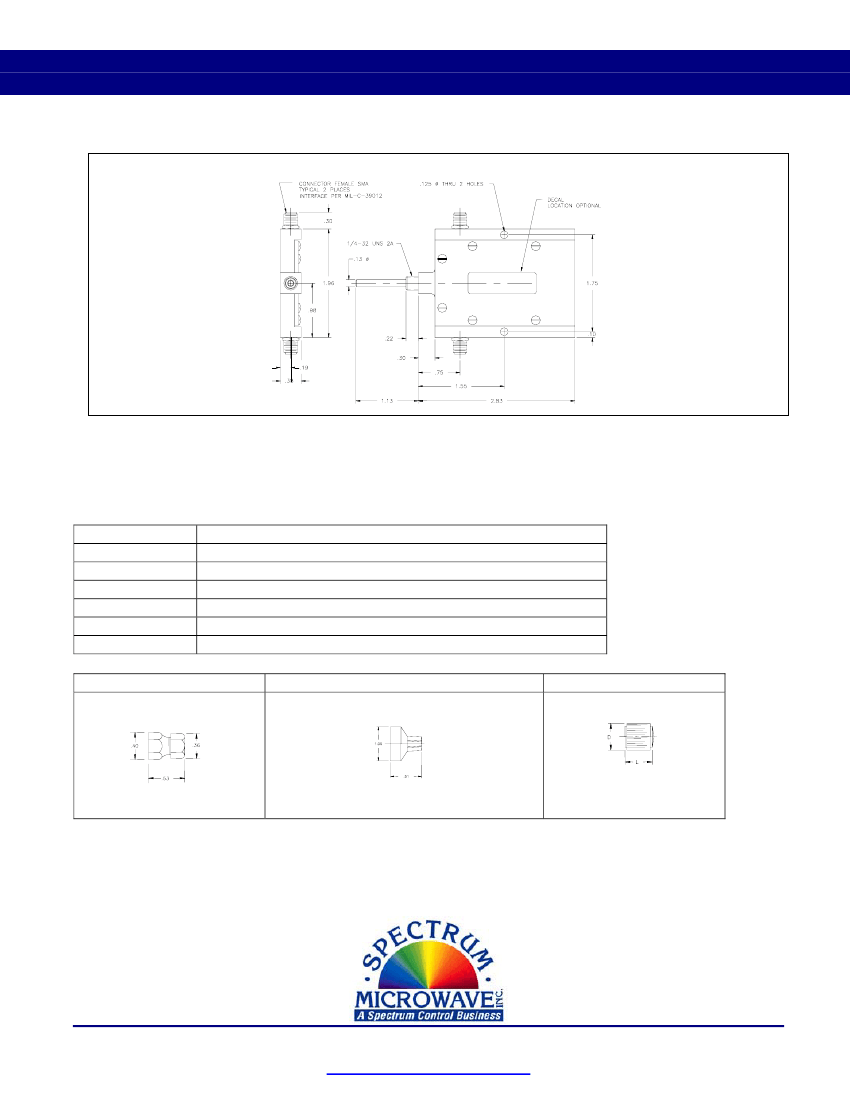

MODEL 6805
PHASE SHIFTER
DC TO 18, 26.5 GHz, COAXIAL
ORDERING INFORMATION
DRIVE SHAFT AND CONNECTOR OPTIONS:
1.
2.
Only the following standard control options are available. The base model is available without additional options.
Add suffix as designated below to the ordering model number.
MODEL # PLUS
-1
-2
-4
-5
-14
-15
DESCRIPTION
Shaft Lock
Turns Counter With Built In Shaft Lock
Screw Driver Slot
Control Knob
Shaft Lock With Screw Driver Slot
Shaft Lock With Control Knob
(-1) SHAFT LOCK
(-2) TURNS COUNTER W/ SHAFT LOCK
(-5) CONTROL KNOB
D= 0.5” L=0.65
MISCELLANEOUS:
1.
2.
3.
4.
Spectrum Microwave “Standard Warranty and Order Terms and Conditions” apply to all orders.
All specifications subject to change without notice.
Check “Ordering and Availability Listing” for delivery and ordering information.
Contact our local Manufacturers Representative for pricing.
Specification Revision - 070710
Spectrum Microwave 8 Executive Drive Hudson, NH 03051
Phone: 603-459-1600 Fax: 603.459.1605
www.SpectrumMicrowave.com
