MODELS 694, 698, 699
Isolated, bussed and other circuits
Thin film resistor network
0.300” PDIP packages
RoHS compliant available
FEATURES
Precision Nichrome Resistors on Ceramic
Passivation coating provides protection in humid environments
Excellent frequency response
Excellent long term resistance stability
JEDEC 95, MS-001
(Plastic DIP 0.300 inch wide in 8, 14 and 16 lead pin counts)
< ± 0.05%
< ± 5 ppm/°
C
Industry Standard Packaging
Ratio Tolerances
TCR Tracking Tolerances

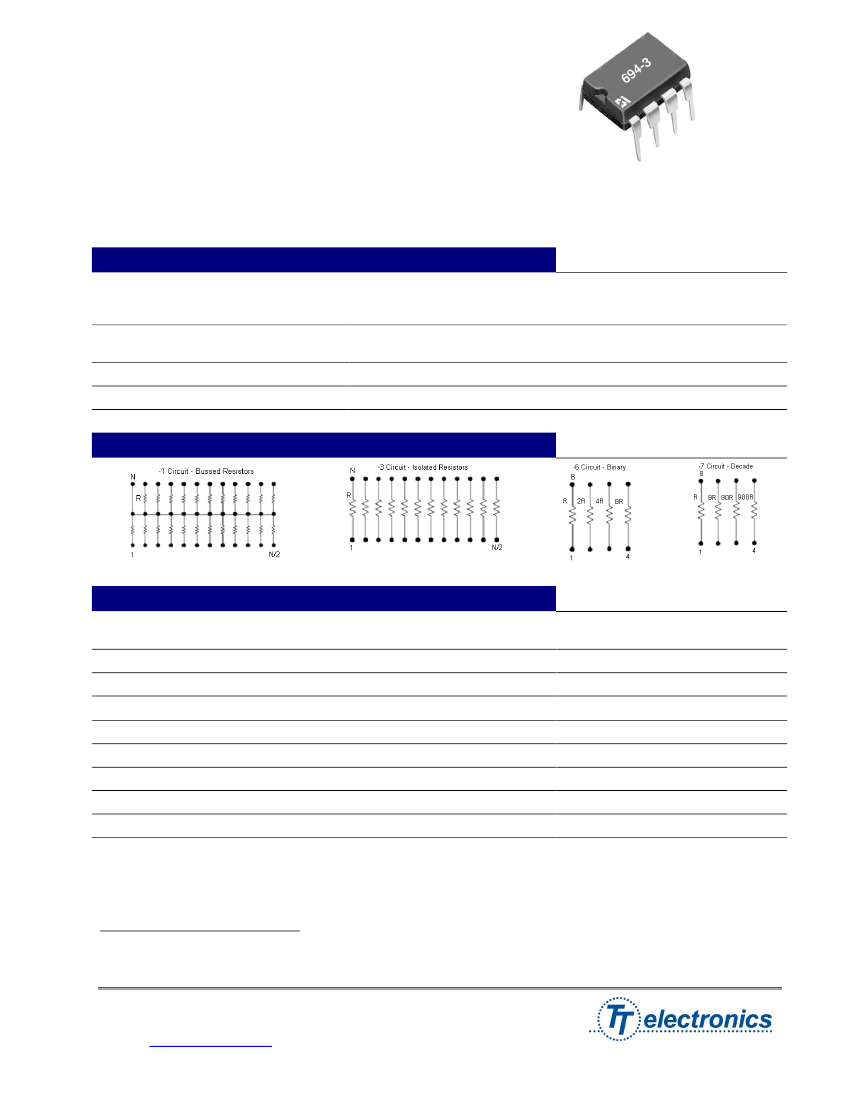

SCHEMATICS
ELECTRICAL
1
Standard Resistance Range
TCR
3
3
2
1K ohms to 100K ohms (Isolated)
1K ohms to 45K ohms (Bussed)
± 25 ppm/°
C
± 5 ppm/°
C
-55°C to +125°C
< 2pF
≥
10,000 Megohms
100 Vdc or
√
PR
-40 dB
0.1 Watts
TCR Tracking
Operating Temperature Range
Interlead Capacitance
Insulation Resistance
Maximum Operating Voltage
Noise, Maximum (MIL-STD-202, Method 308)
Resistor Power Rating at 70°
C
1
2
3
Specifications subject to change without notice.
E96 codes available.
Standard limits for all resistance codes.
BI Technologies Corporation
4200 Bonita Place
Fullerton, CA 92835 USA
Website:
www.bitechnologies.com
May 29, 2008
page 1 of 3
BI technologies
694, 698, 699
DERATING
PACKAGE POWER AND DERATING CURVE
Model
694
698
699
Package Power @ 70°C(watts)
°
0.4
0.6
0.6
4
(MIL-
ENVIRONMENTAL (MIL-R-83401)
Thermal Shock plus Power Conditioning
Short Time Overload
Terminal Strength
Moisture Resistance
Mechanical Shock
Vibration
Low Temperature Operation
High Temperature Exposure
Load Life, 1,000 Hours
Resistance to Solder Heat
Dielectric Withstanding Voltage
Marking Permanency
Lead Solderability
Flammability
Storage Temperature Range
∆R
0.25%
∆R
0.1%
∆R
0.1%
∆R
0.2%
∆R
0.25%
∆R
0.25%
∆R
0.1%
∆R
0.1%
∆R
0.1%
∆R
0.1%
200V for 1 minute
MIL-STD-202, Method 215
MIL-STD-202, Method 208
UL-94V-0 Rated
-65°C to +125°C
MECHANICAL
Lead Plating
Lead Material
Lead Configuration
Substrate Material
Resistor Material
Body Material
80/20 Tin Lead (Standard)
100 matte Tin (RoHS)
Copper Alloy
Thru hole
Alumina
Passivated Nichrome
Molded Epoxy
4
Maximum power per resistor @ 70° is 100 mW, not to exceed package power
C
BI Technologies Corporation
4200 Bonita Place
Fullerton, CA 92835 USA
Website:
www.bitechnologies.com
May 29, 2008
page 2 of 3
BI technologies
694, 698, 699
ORDERING INFORMATION
5
69 4 -3-R10K A LF
Model Series:
69 = Passivated Nichrome
on Ceramic
Number of Leads:
4= 8 leads
9=14 leads
8=16 leads
Lead Finish:
No Code = SnPb
LF = Lead free (RoHS)
Tolerance Code
Resistance Value
Circuit Type:
1=Bussed
3=Isolated
6=Binary (Only available as 694 model with B tolerance)
7=Decade (Only available as 694 model with B tolerance)
RESISTANCE VALUE
5
Standard values follow E96 table. Character “K” denotes a multiplier of 1000.
RESISTANCE TOLERANCE CODE
Accuracy Code at 25°
C
Absolute Resistance Tolerances (%)
Ratio Tolerances (R1 Ref) (%)
A
±0.1
±0.05
B
±0.1
±0.1
D
±0.5
±0.1
F
±1.0
±1.0
(UNIT
PACKAGING OPTIONS (UNIT COUNT/TUBE)
Model + Pin count
694
699
698
100
50
50

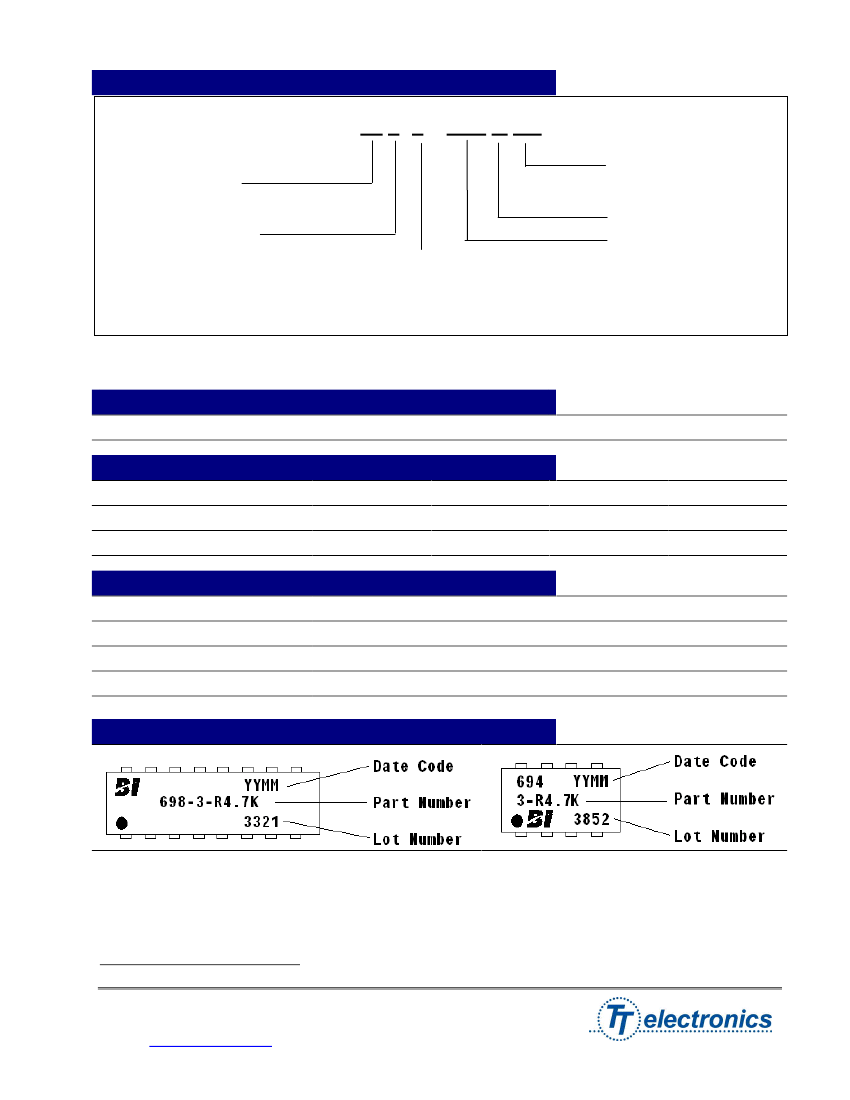

TYPICAL MARKING
5
Consult customer service for custom designs and features.
