RK1BLT521A2945F datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RK1BLT521A2945F

RK1BLT521A2945F: DescriptionFixed Resistor, Metal Glaze/thick Film, 1W, 29400000ohm, 1000V, 1% +/-Tol, 350ppm/Cel, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size109KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

RK1BLT521A2945F Overview

Fixed Resistor, Metal Glaze/thick Film, 1W, 29400000ohm, 1000V, 1% +/-Tol, 350ppm/Cel, Through Hole Mount, AXIAL LEADED

RK1BLT521A2945F Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1611233553
package instruction	,
Reach Compliance Code	not_compliant
ECCN code	EAR99
JESD-609 code	e0
Manufacturer's serial number	RK
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	AMMO PACK
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	29400000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	350 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	1000 V

Preview

Download Datasheet

View All

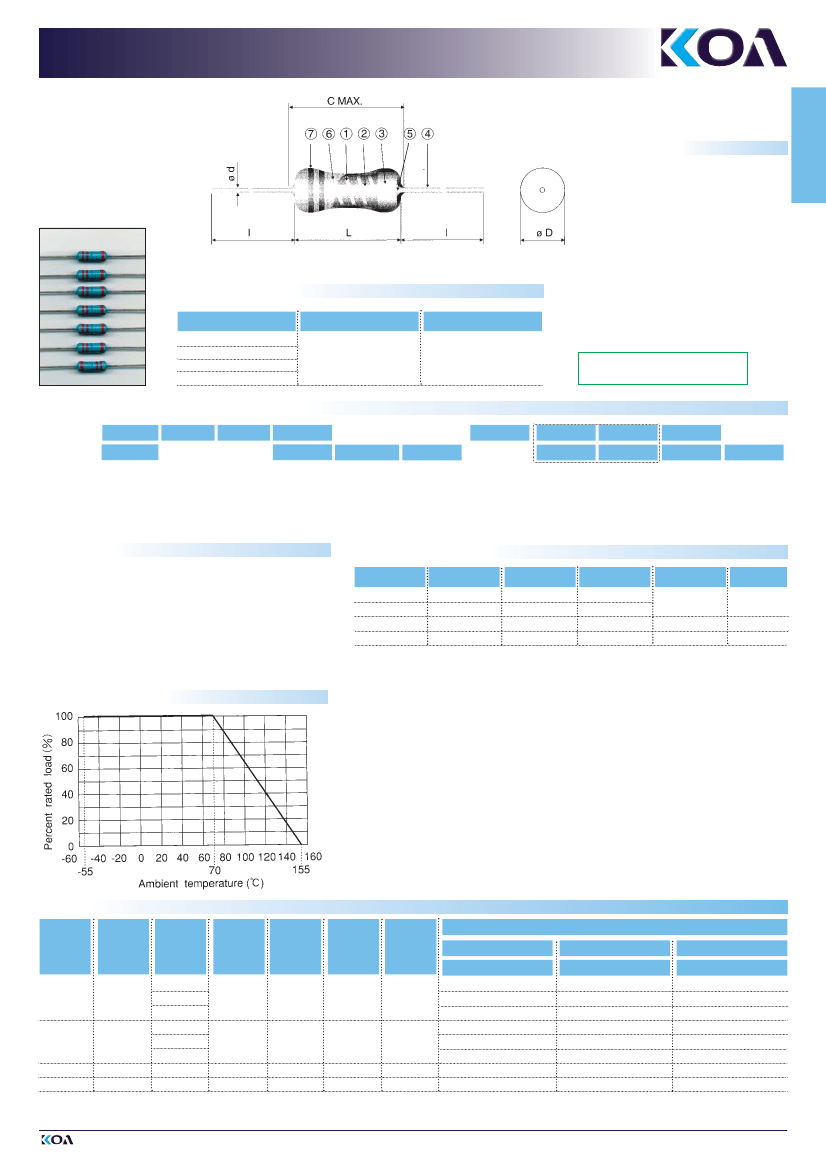

RESISTORS

TECHNOLOGY OF TOMORROW

AXIAL TYPE

STRUCTURE

Ceramic core

Trimmed metal glaze layer

Steel cap

(Cu, Sn plated)

Lead wire

Welding joint

Epoxy resin overcoating

Marking

IDENTIFICATION

PRODUCT CODE

RK 1/4

RK 1/2

RK 1

RK 1/2 G

COATING COLOR

MARKING

Color code

(R-value

and

tolerance)

Light blue-grey

Products with Pb-free terminations

meet RoHS requirements

TYPE DESIGNATION (HOW TO ORDER)

Old Part No.

New Part No.

(Pb-free)

PRODUCT

CODE

TERMINAL

STYLE

T.C.R.

1/4

POWER

RATING

1/4: 0.25W

1/2: 0.5W

1: 1W

T.C.R.

D: ±100ppm/K

L: ±200ppm/K

G: ±250ppm/K

B: ±350ppm/K

T26

TAPING &

FORMING

PACKAGING

10M

106

TERMINATION RESISTANCE

SURFACE

TOLERANCE

MATERIAL

C: SnCu

L: Sn/Pb

Specifications given herein may be changed at any time without prior notice.

Please confirm technical specifications before you order and/or use.

NOMINAL RESISTANCE

RESISTANCE TOLERANCE

F: 4 digits

G, J: 3 digits

F: ±1%

G: ±2%

J: ±5%

*Please see “PACKAGING”

FEATURES

■

Resistance tolerance ±1% and T.C.R. ±100 ppm/K are available

■

Small in dimension and broad range in high resistance

■

Metal glaze resistor elements provide high stable performance

against environmental conditions and overload

■

The RK 1/2 G is a discharge path resistor, which is recognised by

UL 1676 and c-UL (CSA-C22.2, NO. 1-M94) (File No. E159326);

EIA J RC-2128

■

Rated ambient temperature: +70°C

■

Operating temperature range: -55°C … +155°C

DIMENSIONS (mm)

TYPE

RK 1/4

RK 1/2

RK 1

RK 1/2 G

6.3±0.5

9.5±1.0

15.5±1.0

9.5±1.0

C Max.

7.1

11.1

18.3

11.1

2.3±0.3

3.5±0.4

5.5±0.5

3.5±0.4

d (nominal)

0.6

0.8

0.6

24 Min.

38 ± 3

24 Min.

DERATING CURVE

RATING

DIN

SIZE

TYPE

T.C.R.

(ppm/K)

POWER

RATING*

MAX.

WORKING

VOLTAGE

MAX.

OVERLOAD

VOLTAGE

DIELECTRIC

WITH-

STANDING

VOLTAGE

RESISTANCE RANGE

E96 • E24

F(±1%)

3.09 MΩ ... 25 MΩ

–

100 kΩ ... 25 MΩ

5.11 MΩ ... 33 MΩ

–

100 kΩ ... 35 MΩ

100 kΩ ... 51 MΩ

–

E24

G (±2%)

–

3.3 MΩ ... 33 MΩ

100 kΩ ... 33 MΩ

–

6.2 MΩ ... 33 MΩ

100 kΩ ... 51 MΩ

100 kΩ ... 100 MΩ

–

E24

J (±5%)

–

3.3 MΩ ... 33 MΩ

100 kΩ ... 33 MΩ

–

6.2 MΩ ... 33 MΩ

100 kΩ ... 51 MΩ

100 kΩ ... 100 MΩ

1 MΩ ... 12 MΩ

0207

0411

0617

0411

D (±100)

L (±200)

B (±350)

D (±100)

RK 1/2

L (±200)

B (±350)

RK 1

B (±350)

RK 1/2 G**

G (±250)

RK 1/4

0.25 W

500 V

700 V

500 V

0.5 W

700 V

1000 V

350 V

1000 V

1500 V

700 V

1000 V

700 V

* For resistors operated in ambient temperature over +70°C, power rating shall be derated like shown in above “DERATING CURVE”.

** Discharge path resistor

EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de

Revision: 5. Nov. 2004

RESISTORS

METAL GLAZE
