ABS25-32.768KHZ-12.5-1-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABS25-32.768KHZ-12.5-1-T

ABS25-32.768KHZ-12.5-1-T: DescriptionQUARTZ CRYSTAL RESONATOR, 0.032768 MHz; CategoryPassive components Crystal/resonator; File Size1MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ABS25-32.768KHZ-12.5-1-T Overview

QUARTZ CRYSTAL RESONATOR, 0.032768 MHz

ABS25-32.768KHZ-12.5-1-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, PLASTIC, SMD, 4 PIN
Reach Compliance Code	_compli
Other features	TAPE AND REEL
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.0122%
frequency tolerance	10 ppm
JESD-609 code	e2
load capacitance	12.5 pF
Manufacturer's serial number	ABS25
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L8.0XB3.8XH2.5 (mm)/L0.315XB0.15XH0.098 (inch)
Series resistance	50000 Ω
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag)

Preview

Download Datasheet

View All

32.768 kHz LOW FREQUENCY SMD CRYSTAL

ABS25

FEATURES:

• Plastic molded SMD

• 2.5mm height ideal for high density circuit boards

• Suitable for RoHS compliant reflow

• Extended temperature -40°C to +85°C for industrial applications

Pb in High Tempe rature Solder

(exempt per RoHS 2002/95/EC Annex (7))

RoHS

Compliant

| | | | | | | | | | | | | |

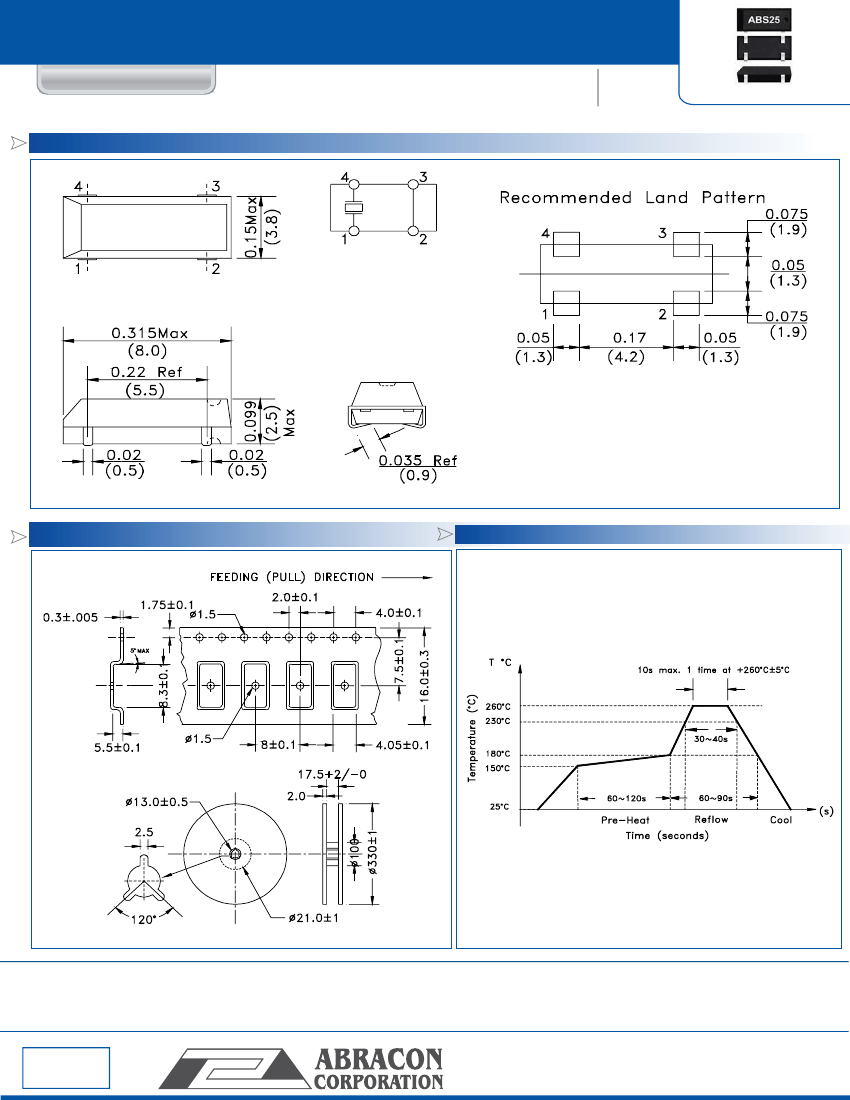

8.0 x 3.8 x 2.5 mm

APPLICATIONS:

• Wide range in communication & measuring equipment

• Commercial & Industrial applications

• Computer clock

STANDARD SPECIFICATIONS:

Parameters

inal Frequency

Frequency Range

Operating Temperature

Turnover Temperature

torage Te

perature

Frequency Tolerance @+25°C

Capacitance Ratio (C0/C1)

Frequency Coefficient

(ß)

Equivalent series resistance (R1)

Shunt capacitance (C0)

Load capacitance (CL)

Dri

Aging

Insulation Resistance

Minimum

-----

-40

+20

-20

-30

-----

-0.040

-----

Typical

32.

-----

+25

-----

450

425 to

800

-0.034

-----

1.35

0.8

1.7

12.5

-----

Maximum

-----

100

+85

+30

+125

+20

+30

-----

-0.028

-----

Units

ºC

ppm

32.768kHz

Other frequencies

See

options

32.768kHz

Other frequencies

Notes

-----

-3

-5

500

-----

ppm/T

kΩ

ppm

MΩ

32.768kHz

Other frequencies

See options

@25°C±3°C

First year

@ 100Vdc

15V

(Left blank if standard)

OPTIONS AND PART IDENTIFICATION:

ABS25 -

Frequency in kHz

Please specify the

frequency in kHz.

e.g.

32.768kHz

Load Capacitance (pF)

Blank: 12.5pF

Please specify load cap.

in pF

(ex. 6pF)

if not

standard

Freq. Tolerance

ppm

2*:

ppm

4**: ±

ppm

Packaging

Blank:

Bulk

T: Tape and Reel

* STD for 32.768kHz. Please leave this blank if F is 32.768kHz.

** STD for other frequencies. Please leave this blank if F is not 32.768kHz.

ABRACON IS

ISO9001:2008

CE RTIFIED

Revised: 06.06.14

30332

Esperanza, Rancho

Santa

Margarita, California

92688

tel

949-546-8000

fax

949-546-8001

www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

ABS25-32.768KHZ-12.5-1-T Related Products

	ABS25-32.768KHZ-12.5-1-T	ABS25-32.768KHZ-12.5-2-T	ABS25-32.768KHZ-12.5-3-T	ABS25-32.768KHZ-12.5-4-T	ABS25-32.768KHZ-12.5-5-T	ABS25_15
Description	QUARTZ CRYSTAL RESONATOR, 0.032768 MHz	QUARTZ CRYSTAL RESONATOR, 0.032768 MHz	QUARTZ CRYSTAL RESONATOR, 0.032768 MHz	QUARTZ CRYSTAL RESONATOR, 0.032768 MHz	QUARTZ CRYSTAL RESONATOR, 0.032768 MHz	QUARTZ CRYSTAL RESONATOR, 0.032768 MHz
Ageing	3 PPM/FIRST YEAR	3 PPM/FIRST YEAR	5 PPM/YEAR	5 PPM/YEAR	3 PPM/FIRST YEAR	3 PPM/FIRST YEAR
Drive level	1 µW	1 µW	1 µW	1 µW	1 µW	1 uW
load capacitance	12.5 pF	12.5 pF	12.5 pF	12.5 pF	12.5 pF	12.5 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	surface mount
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 Cel
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 Cel
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-
Reach Compliance Code	_compli	_compli	_compli	_compli	_compli	-
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	-
frequency stability	0.0122%	0.0122%	0.0144%	0.0144%	0.0122%	-
frequency tolerance	10 ppm	20 ppm	25 ppm	30 ppm	15 ppm	-
JESD-609 code	e2	e2	e2	e2	e2	-
Manufacturer's serial number	ABS25	-	ABS25	ABS25	ABS25	-
Nominal operating frequency	0.032768 MHz	0.032768 MHz	0.032768 MHz	0.032768 MHz	0.032768 MHz	-
physical size	L8.0XB3.8XH2.5 (mm)/L0.315XB0.15XH0.098 (inch)	L8.0XB3.8XH2.5 (mm)/L0.315XB0.15XH0.098 (inch)	L8.7XB3.8XH2.5 (mm)/L0.343XB0.15XH0.099 (inch)	L8.7XB3.8XH2.5 (mm)/L0.343XB0.15XH0.099 (inch)	L8.0XB3.8XH2.5 (mm)/L0.315XB0.15XH0.098 (inch)	-
Series resistance	50000 Ω	50000 Ω	-	-	50000 Ω	50000 ohm
surface mount	YES	YES	YES	YES	YES	-
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	-
