AD4C101
Dual 1 Form A
Solid State Relay
DESCRIPTION
The AD4C101 is a bi-directional, double-pole, single-throw, normally open MOSFET output solid-state relay. This device offers two
discrete optically isolated SSRs in one miniature 8 pin DIP/SMD package. Each discrete relay consists of an infrared LED, optically
coupled to a Photo Diode Array, which in turn drives a pair of back-to-back MOSFETs. Its high blocking voltage (600V) and the integration
of 2 devices in one package make the AD4C101 ideal in applications with board space constraints where high load voltages are
encountered.
FEATURES
APPLICATIONS
•
•
•
•
•
•
•
High Blocking Voltage (600V)
Two discrete relays in compact 8 pin DIP/SMD package
High Input-Output Isolation (3.75kV)
120mA Continuous Load Current (each pole, individually)
On-Resistance 40 ohms MAX
Long Life / High Reliability
Lead-Free / RoHS - WEEE Compliant
•
•
•
•
•
EMR replacement
Meter Reading Systems
Medical Equipment
Battery Monitoring
Multiplexers
OPTIONS/SUFFIXES*
ABSOLUTE MAXIMUM RATINGS*
PARAMETER
Storage Temperature
Operating Temperature
Continuous Input Current
Transient Input Current
Reverse Input Control
Voltage
Output Power Dissipation
UNIT
°C
°C
mA
mA
V
mW
6
800
MIN
-55
-40
TYP
MAX
125
85
40
400
•
•
-S
-TR
Surface Mount Leadform Option (50pcs / tube)
Tape & Reel Packing Option (1,000pcs/reel)
NOTE: Suffixes listed above are not included in marking on
device for part number identification.

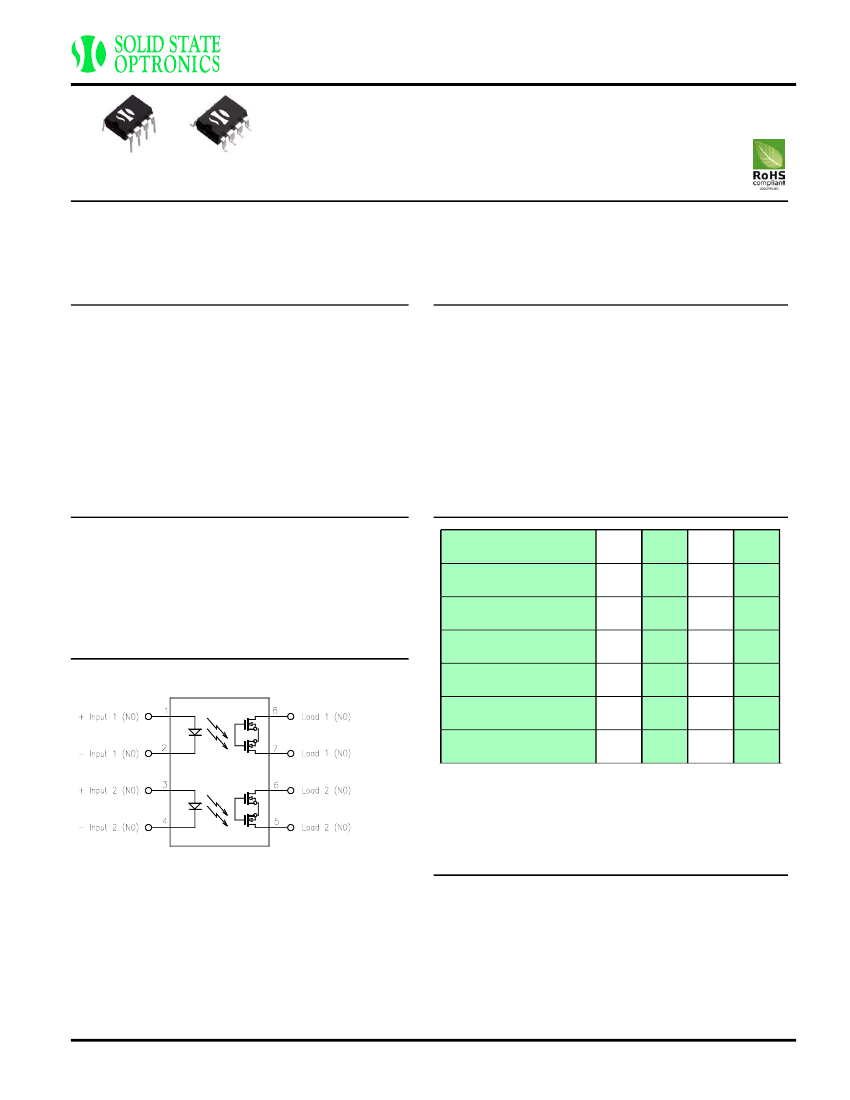

SCHEMATIC DIAGRAM
*The values indicated are absolute stress ratings. Functional operation of the
device is not implied at these or any conditions in excess of those defined in
electrical characteristics section of this document. Exposure to Absolute
Ratings may cause permanent damage to the device and may adversely
affect reliability.
APPROVALS
•
•
UL / C-UL Approved: File # E90096, E201932
CSA Approved: Certificate # LR111581-1
© 2009 Solid State Optronics • San José, CA
www.ssousa.com • +1.408.293.4600
Page 1 of 5
AD4C101
rev 1.41 (9/9/2009)
AD4C101
Dual 1 Form A
Solid State Relay
ELECTRICAL CHARACTERISTICS - 25°C
PARAMETER
INPUT SPECIFICATIONS
LED Forward Voltage
LED Reverse Votlage
Turn-On Current
Turn-Off Current
V
V
mA
mA
0.2
1.8
0.5
1.75
5
2
If = 10mA
Ir = 10uA
Io = 120mA
UNIT
MIN
TYP
MAX
TEST CONDITIONS
OUTPUT SPECIFICATIONS
Blocking Voltage
Continuous Load Current
On-Resistance
Leakage Current
Output Capacitance
Offset Voltage
V
mA
Ω
µ
A
pF
mV
6
0.2
30
0.2
600
120
40
1
Io = 1uA
If = 5mA, each pole, individually
Io = 120mA
Vo = 600V
If = 0, f = 1.0MHz
If = 5mA
COUPLED SPECIFICATIONS
Isolation Voltage
Turn-On Time
Turn-Off Time
Isolation Resistance
Coupled Capacitance
Contact Transient Ratio
V
ms
ms
G
Ω
pF
V/
µ
s
2000
100
3
7000
dV = 50V
3750
0.75
0.05
5
2
T = 1 minute
If = 5mA, Io = 120mA
If = 0mA, Io = 120mA
© 2009 Solid State Optronics • San José, CA
www.ssousa.com • +1.408.293.4600
Page 2 of 5
AD4C101
rev 1.41 (9/9/2009)
AD4C101
Dual 1 Form A
Solid State Relay
PERFORMANCE DATA
AD4C101
Typical Turn-On Time Distribution
N = 100, Ambient Temperature = 25°C
AD4C101
Typical Turn-Off Time Distribution
N = 100, Ambient Temperature = 25°C
40
Device Count
30
20
10
0
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
Turn-On Tim e (m s)
40
Device Count
30
20
10
0
0.04 0.05 0.05 0.05 0.05 0.06 0.06 0.06
Turn-Off Tim e (m s)
AD4C101
Typical On-Resistance Distribution
N = 100, Ambient Temperature = 25°C
AD4C101
Typical Leakage Current Distribution
N = 100, Ambient Temperature = 25°C
40
Device Count
Device Count
27
28
29
30
31
32
33
34
30
20
10
0
On-Resistance (ohm s)
50
40
30
20
10
0
0
0.05 0.1 0.15 0.2 0.25 0.3 0.35
Leakage Current (uA)
AD4C101
Typical Blocking Voltage Distribution
N = 100, Ambient Temperature = 25°C
AD4C101
Maximum Load Current vs. Temperature
40
30
20
10
0
600 610 620 630 640 650 660 670
Blocking Voltage (V)
Load Current (mA)
50
Device Count
150
100
50
0
20
40
60
-4
0
-2
0
80
0
Tem perature (C)
© 2009 Solid State Optronics • San José, CA
www.ssousa.com • +1.408.293.4600
Page 3 of 5
AD4C101
rev 1.41 (9/9/2009)
AD4C101
Dual 1 Form A
Solid State Relay

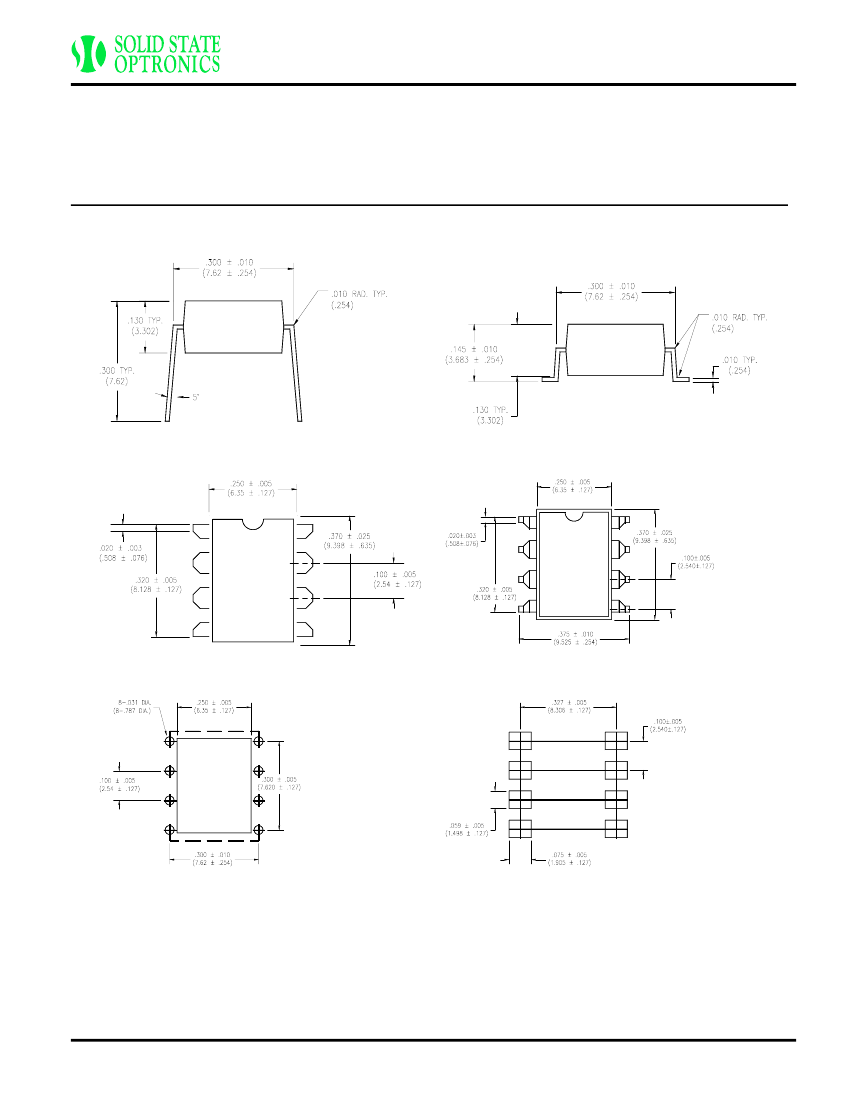

MECHANICAL DIMENSIONS
8 PIN DUAL IN-LINE PACKAGE
8 PIN SURFACE MOUNT DEVICE
END VIEW
END VIEW
TOP VIEW
TOP VIEW
BOTTOM VIEW/
BOARD PATTERN
BOTTOM VIEW/
BOARD PATTERN
© 2009 Solid State Optronics • San José, CA
www.ssousa.com • +1.408.293.4600
Page 4 of 5
AD4C101
rev 1.41 (9/9/2009)
AD4C101
Dual 1 Form A
Solid State Relay
DISCLAIMER
Solid State Optronics (SSO) makes no warranties or representations with regards to the completeness and accuracy of this document. SSO
reserves the right to make changes to product description, specifications at any time without further notice.
SSO shall not assume any liability arising out of the application or use of any product or circuit described herein. Neither circuit patent
licenses nor indemnity are expressed or implied.
Except as specified in SSO's Standard Terms & Conditions, SSO disclaims liability for consequential or other damage, and we make no other
warranty, expressed or implied, including merchantability and fitness for particular use.
LIFE SUPPORT POLICY
SSO does not authorize use of its devices in life support applications wherein failure or malfunction of a device may lead to personal injury or
death. Users of SSO devices in life support applications assume all risks of such use and agree to indemnify SSO against any and all
damages resulting from such use. Life support devices are defined as devices or systems which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure to perform when used properly in accordance with instructions for use can be
reasonably expected to result in significant injury to the user, or (d) a critical component in any component of a life support device or system
whose failure can be reasonably expected to cause failure of the life support device or system, or to affect its safety or effectiveness.
© 2009 Solid State Optronics • San José, CA
www.ssousa.com • +1.408.293.4600
Page 5 of 5
AD4C101
rev 1.41 (9/9/2009)
