5mm Round Pure Green
LED T-1 3/4
Technical Data Sheet
Part No.: LL-504PGC2E-G5-1BC
Spec No: B508 X335
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Nov/26/2005
Drawn: Wang
Page: 1 OF 7
Lucky Light Electronics Co., Ltd.
Http://www.luckylight.cn
Luckylight
Features:
◇
Choice of various color.
◇
Available on tape and reel.
◇
Reliable and robust.
◇
The product itself will remain within RoHS compliant Version.
Descriptions:
◇
The series is specially designed for applications requiring higher brightness.
◇
The LED lamps are available with different colors, intensities.
Applications:
◇
TV set.
◇
Monitor.
◇
Telephone.
◇
Computer.
◇
Circuit board.
◇
Status indicators.
◇
Commercial use.
◇
Advertising Signs.
◇
Back lighting.
Spec No: B508 X335
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Nov/26/2005
Drawn: Wang
Page: 2 OF 7
Lucky Light Electronics Co., Ltd.
Http://www.luckylight.cn
Luckylight

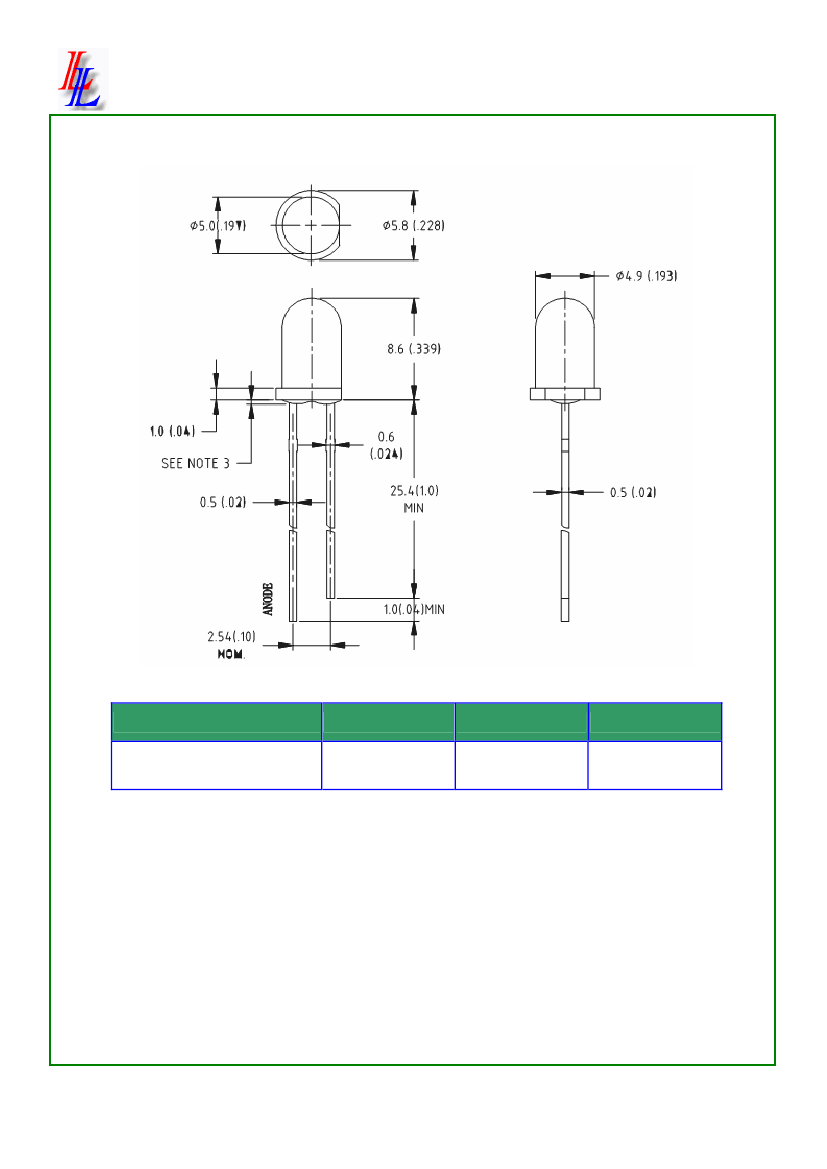

Package Dimension:
Part No.
LL-504PGC2E-G5-1BC
Chip Material
InGaN
Lens Color
Water Clear
Source Color
Pure Green
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
3. Protruded resin under flange is 1.00 mm (.04″) max.
4. Specifications are subject to change without notice.
Spec No: B508 X335
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Nov/26/2005
Drawn: Wang
Page: 3 OF 7
Lucky Light Electronics Co., Ltd.
Http://www.luckylight.cn
Luckylight
Absolute Maximum Ratings at Ta=25℃
Parameters
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
Forward Current
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
[4mm (.157″) From Body]
Symbol
PD
IFP
IF
VR
Topr
Tstg
Tsld
Max.
100
100
25
5
Unit
mW
mA
mA
V
-40℃ to +85℃
-40℃ to +100℃
260℃ for 5 Seconds
Electrical Optical Characteristics at Ta=25℃
Parameters
Viewing Angle*
Forward Voltage
Reverse Current
Peak Emission Wavelength
Dominant Wavelength
Spectrum Radiation Bandwidth
Luminous Intensity
(Note 1)*
Symbol Min.
2θ
1/2
V
F
I
R
λp
λd
Δλ
IV
---
2.7
---
---
---
---
Typ. Max.
15
3.1
---
525
529
35
---
4.0
10
---
---
---
---
Unit
Deg
V
µA
nm
nm
nm
mcd
Test Condition
(Note 2)
IF=20mA
V
R
=5V
IF=20mA
IF=20mA
IF=20mA
IF=20mA
8000 13000
Notes:
1. Luminous Intensity Measurement allowance is ± 10%.
2.
θ
1/2
is the off-axis angle at which the luminous intensity is half the axial luminous
intensity.
Spec No: B508 X335
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Nov/26/2005
Drawn: Wang
Page: 4 OF 7
Lucky Light Electronics Co., Ltd.
Http://www.luckylight.cn
Luckylight
Reliability Test Items And Conditions:
The reliability of products shall be satisfied with items listed below:
Confidence level: 90%.
LTPD: 10%.
1) Test Items and Results:
Test Item
Resistance to Soldering
Heat
Solder ability
Thermal Shock
Temperature Cycle
Moisture Resistance
Cycle
High Temperature
Storage
Terminal Strength
(Pull test)
Terminal Strength
(bending test)
Temperature Humidity
Storage
Low Temperature
Storage
Steady State Operating
Life
Steady State Operating
Life of High Humidity
Heat
Steady State Operating
Life of Low
Temperature
Standard
Test
Method
JEITA ED-4701
300 302
JEITA ED-4701
300 303
JEITA ED-4701
300 307
JEITA ED-4701
100 105
JEITA ED-4701
200 203
JEITA ED-4701
200 201
JEITA ED-4701
400 401
JEITA ED-4701
400 401
JEITA ED-4701
100 103
JEITA ED-4701
200 202
Test Conditions
Tsld=260±5℃, 10sec 3mm
from the base of the epoxy
bulb
Tsld=235±5℃, 5sec(using
flux)
0℃~100℃ 15sec, 15sec
-40℃~25℃~100℃~25℃
30min,5min,30min,5min
25℃~65℃~-10℃ 90%RH
24hrs/1cycle
Ta=100℃
Load 10N (1kgf)
10±1sec
Load 5N (0.5kgf)
0°~90°~0° bend 2 times
Ta=60℃, RH=90%
Ta=-40℃
Ta=25℃, IF＝30mA
Ta=60℃, RH=90%,
IF=30mA
Ta=-30℃, IF＝20mA
Note
Number
of
Damage
d
0/100
0/100
0/100
0/100
0/100
0/100
0/100
0/100
0/100
0/100
0/100
0/100
0/100
1 time
1time
over 95%
100 cycles
100 cycles
10 cycles
1000hrs
No noticeable
damage
No noticeable
damage
1000hrs
1000hrs
1000hrs
500hrs
1000hrs
2) Criteria For Judging The Damage:
Item
Forward Voltage
Reverse Current
Luminous Intensity
*) F.V.: First Value.
Spec No: B508 X335
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Nov/26/2005
Drawn: Wang
Page: 5 OF 7
Symbol
VF
IR
IV
Test Conditions
IF＝20mA
VR=5V
IF＝20mA
Criteria for Judgment
Min
---
---
F.V.*)×0.7
Max
F.V.*)×1.1
