LUCKY LIGHT
LL-509RGBC2E-A
DATA SHEET
QC:
Part No.
ENG:
LL-509RGBC2E-A
Spec No.
Prepared By:
S/N-5RE4GABEX28
Page
1
of
5
LUCKY LIGHT
Features
♦
♦
♦
♦
♦
High intensity
Standard T-1 3/4 diameter package
Wide viewing angle
General purpose leads
Reliable and rugged.

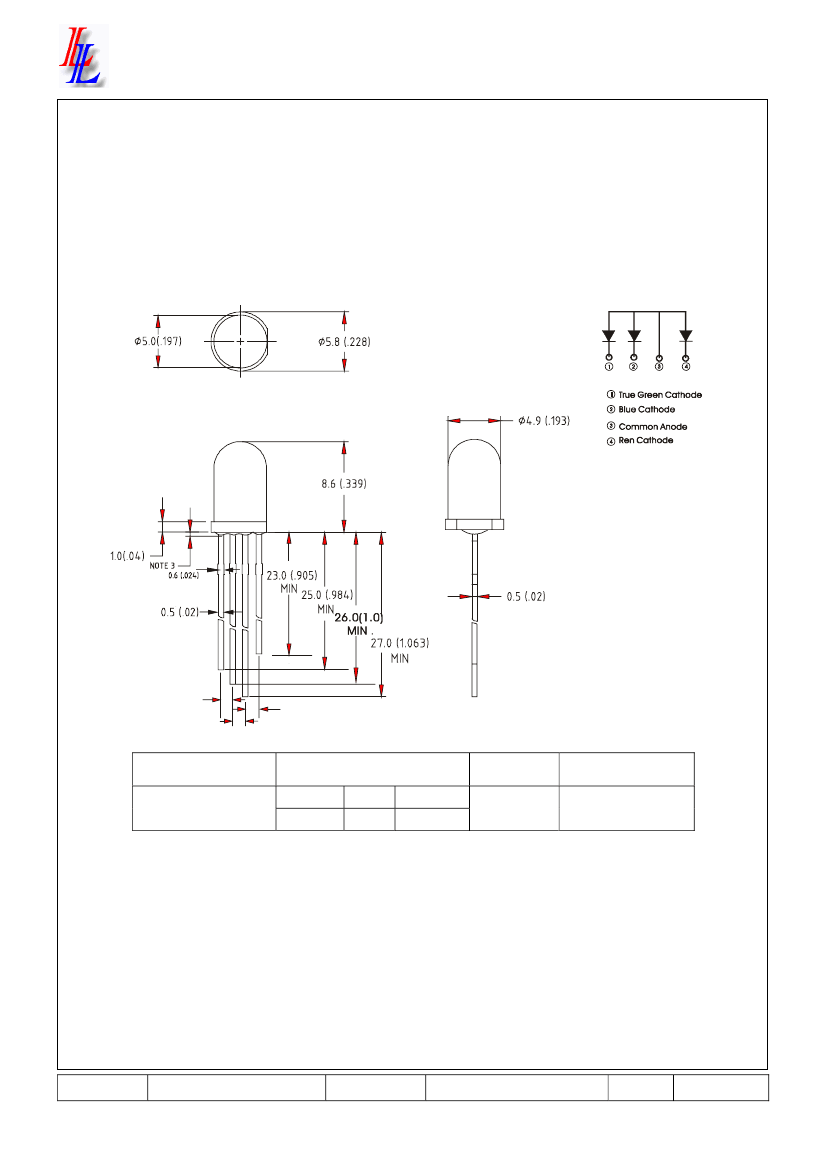

Package Dimension:
1.27(.05)
1.27(.05)
1.27(.05)
Part NO.
LL-509RGBC2E-A
Chip Material
Red
Green
AlGaInP GalnN
Blue
GaInN
Lens Color
Water
Clear
Source Color
Red & True Green
& Blue
Notes:
1.
2.
3.
4.
5.
6.
All dimensions are in millimeters (inches).
Tolerance is ±0.25(.010”)mm unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice
Caution in ESD:
Siatic Electricity and surge damages the LED. lt is recommend to use a wrist
band or anti-electrostatic glove when handling the LED.All devices, equipment
and machinery must be properly grounded.
Part No.
LL-509RGBC2E-A
Spec No.
S/N-5RE4GABEX28
Page
2
of
5
LUCKY LIGHT
Absolute Maximum Ratings at Ta=25℃
Parameter
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
Continuous Forward Current
Derating Linear From 50℃
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
[4mm(.157”) From Body]
MAX.
100
100
35
0.4
5
-40℃ to +80℃
-40℃ to +80℃
260℃ for 5 Seconds
Unit
mW
mA
mA
mA/℃
V
Part No.
LL-509RGBC2E-A
Spec No.
S/N-5RE4GABEX28
Page
3
of
5
LUCKY LIGHT
Electrical Optical Characteristics at Ta=25℃
Parameter
Symbol
Emitting
Min. Typ. Max.
Color
Red
Luminous Intensity
Iv
1000 2000 4000
mcd
I
f
=20mA
Note 1
True Green 2000 4000 8000
Blue
Red
Viewing Angle
2θ
1/2
True Green
Blue
Red
Peak Emission
Wavelength
λp
1000 2000 4000
25
25
25
631
30
30
30
636
525
472
20
40
26
2.05
3.2
3.6
35
35
35
641
530
477
25
45
31
2.5
4.0
4.0
V
I
F
=20mA
nm
nm
Measurement
@Peak Note 3
Deg
Note 2
Unit
Test Condition
True Green 520
Blue
Red
467
15
Spectral Line
Half-Width
△λ
True Green 35
Blue
Red
21
1.6
Forward Voltage
V
F
True Green 2.8
Blue
Red
2.8
Reverse Current
I
R
True Green ---
Blue
---
100
µA
V
R
=5V
Note:
1.Luminous intensity is measured with a light sensor and filter combination that
approximates the CIE eye-response curve.
2.θ
1/2
is the off-axis angle at which the luminous intensity is half the axial
luminous intensity.
3.The dominant wavelength (λP) is derived from the CIE chromaticity diagram and
represents the single wavelength which defines the color of the device.
Part No.
LL-509RGBC2E-A
Spec No.
S/N-5RE4GABEX28
Page
4
of
5
LUCKY LIGHT

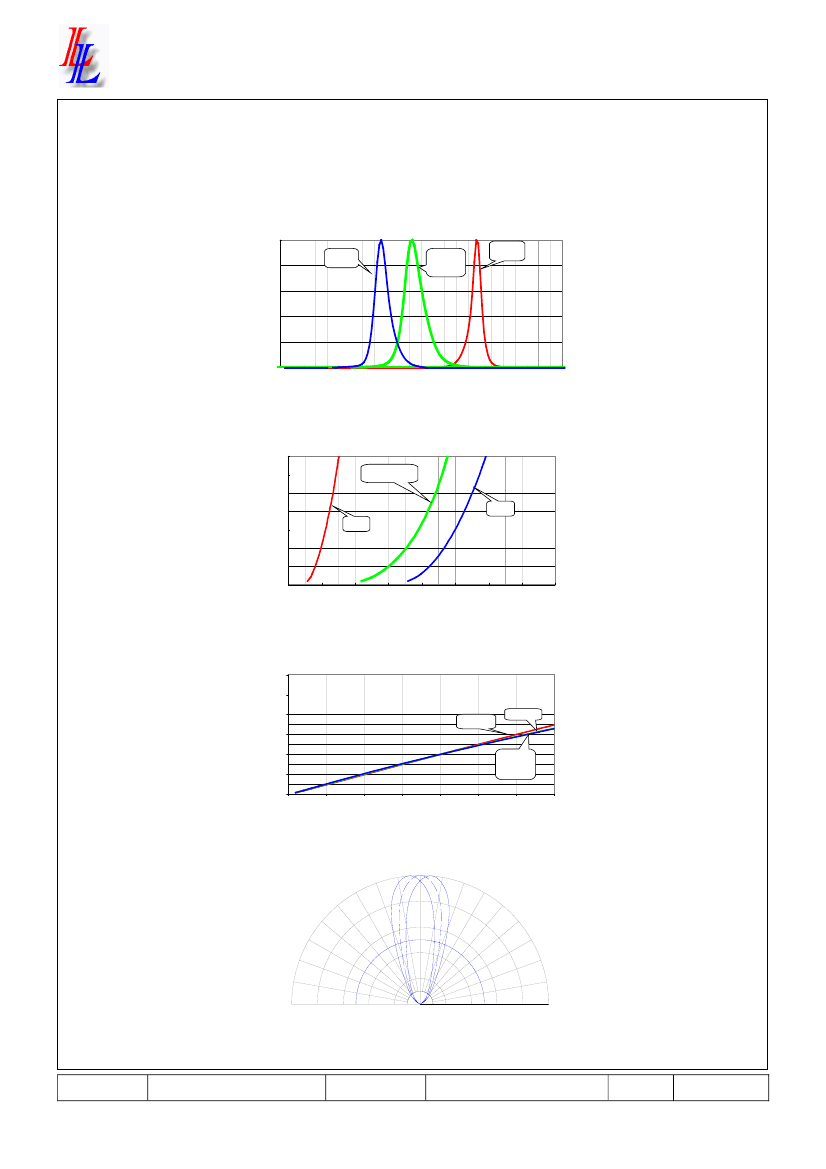

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature unless Otherwise Noted)
Spectral Radiance True Green Peak @ 525nm
Red Peak @ 636nm
Blue Peak @ 472nm
1.0
Blue
0.8
True
Green
Red
Normalized
Response
0.6
0.4
0.2
0.0
300 320 340 360 380 400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 740 760 780
Wave Length(nm)
Forward Current
vs Forward Voltage
35
30
Forward Current
IF(mA)
True
G
Blue
Red
25
20
15
10
5
0
1.5
1.9
2.3
2.7
3.1
3.5
3.9
4.3
4.7
Forward Voltage VF(V)
Relative Luminous Intensity
vs Forward Current
3
2.5
Relative Intensity
(LOP@20mA=1)
2
Red
Blue
1.5
1
True
Green
0.5
0
0
5
10
15
20
25
30
35
Forward Current IF(mA)
Beam Pattern
0
-30
30
-60
60
-90
1.0
0.8
0.6
0.4
0.2
0.2
0.4
0.6
0.8
1.0
90
Relative Intensity (LOP@MAX=1)
Part No.
LL-509RGBC2E-A
Spec No.
S/N-5RE4GABEX28
Page
5
of
5
