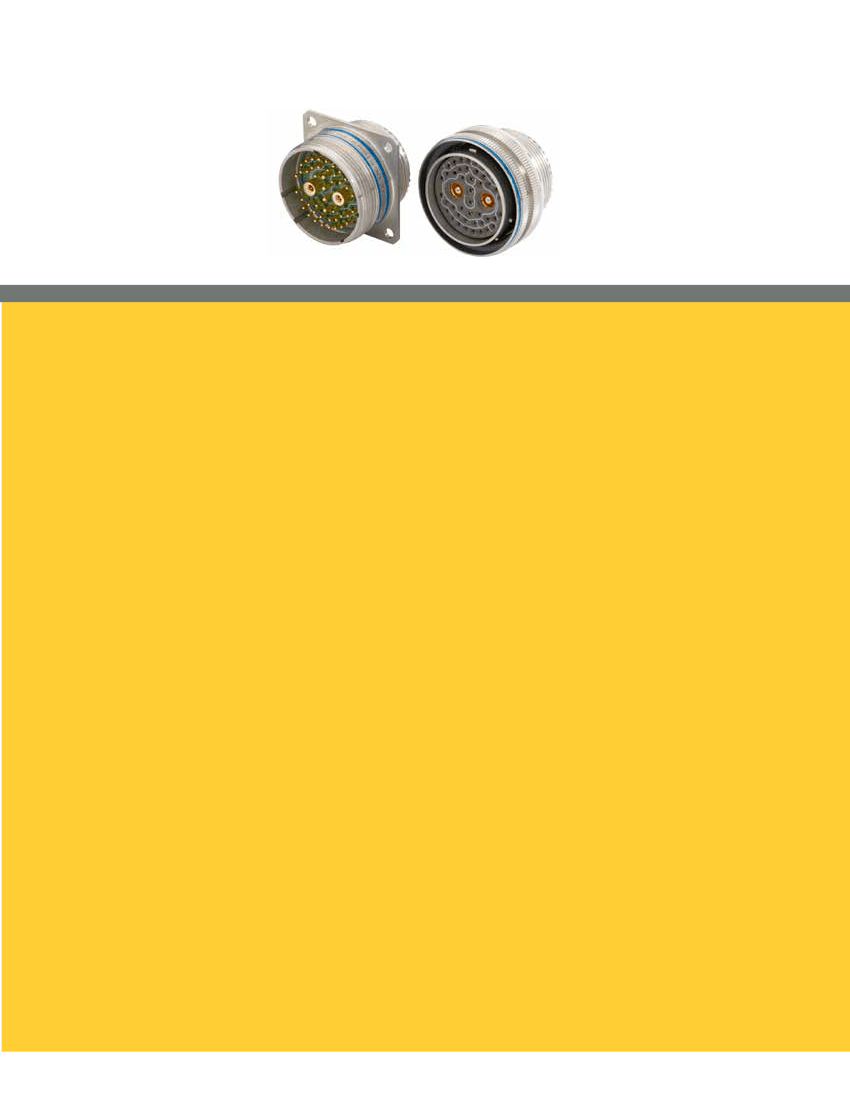

MIL-DTL-83723, Series III, Pyle
®
Threaded or Bayonet, High Temp. Stainless Steel
AMPHENOL AEROSPACE OFFERS THE PYLE
®
PRODUCT LINE OF MIL-DTL-83723*, SERIES III
CONNECTORS.
Accessory
Orientation Teeth
(Optional 360°
also available)
Threaded
Coupling
Static Dynamic
‘O’ Ring Seal
Knurled Coupling Nut
Grip Aid

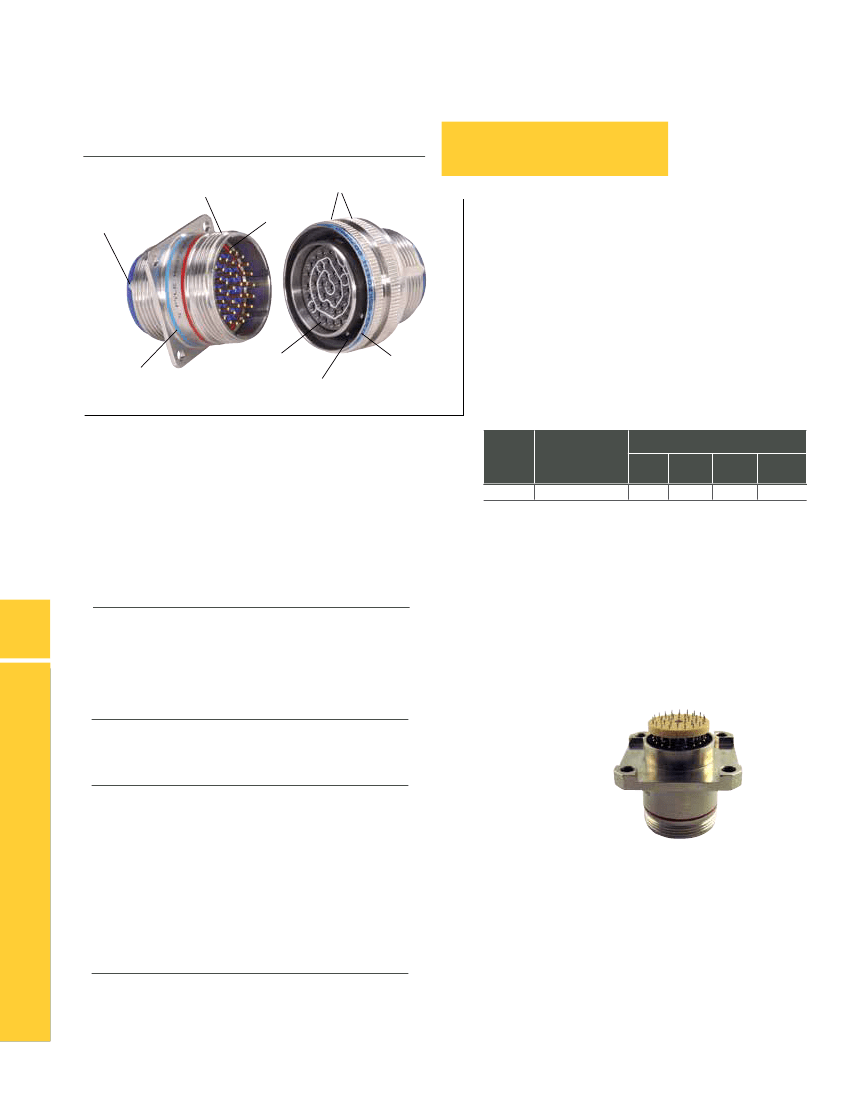

DESIGN FEATURES
(THREADED STYLE SHOWN)
The Amphenol MIL-DTL-83723, Series III family of
connectors includes styles from Pyle National . These
have proven technology for severe environments and
are widely used in commercial and military aerospace
markets . Amphenol/Pyle 83723 connectors incorporate
many advantageous features, such as a unique
threaded coupling mechanism that provides greater
resistance to decoupling . This coupling mechanism
eliminates the need for safety wiring and tends to
couple during vibration - thus offering the user added
assurance and a margin of safety .
Full Mating
Indicator Band
Closed Entry
Socket Contacts
RFI Grounding
Spring (Optional)
Blue Band
Rear Release
Indicator
Amphenol/Pyle 83723 Series III high temperature styles are capable of
operation at 260° C/500°F . A 100% scoop-proof version of the high
temperature connector is also available under specification ESC11/Pyle
HTK Series . In addition, this connector series incorporates a unique
sealing grommet that is capable of sealing on standard diameter wire as
well as Kapton wire of reduced diameter .
The Pyle 83723 family provides connectors in environmental, firewall
and hermetic classes that exceed the most stringent specification
requirements .
SERVICE RATINGS
Service Recommended Test Voltage AC (RMS), 60 cps
Rating Operating AC
Voltage
Sea 50,000 70,000 110,000
at Sea Level
Level
ft.
ft.
ft.
I
600
1,500
500
375
200
Please note that the electrical data given is not an establishment of
electrical safety factors . This is left entirely in the designer’s hands
as he can best determine which peak voltage, switching surges,
transients, etc . can be expected in a particular circuit .
83723 III
MIL-DTL-83723, SERIES III CONNECTORS ARE AVAILABLE IN A WIDE VARIETY OF STYLES:
THREADED STYLE CONNECTORS
•
•
•
•
Stainless steel shells** provide corrosion resistance
Metal-to-metal bottoming
Unique sealing grommet accepts a wide range of wire diameters
Patented non-decoupling device in plugs - a self-locking clutch plate that provides greater
resistance to decoupling than coupling during vibration
Pyle
BAYONET STYLE CONNECTORS
•
Same quality features of the threaded style, but with 3 point bayonet coupling -
quick turn to lock, visual confirmation of complete coupling
HIGH TEMPERATURE STYLE CONNECTORS
•
•
•
•
•
•
•
•
High temperature connector materials and contacts provide operation to 200°C and
Firewall capability to 260°C
Improved metal-to-metal bottoming design
Unique sealing grommet accepts a wide range of wire diameters
Improved 360° accessory orientation teeth provide greater performance under vibration
Patented non-decoupling device (torque differential)
Improved shell-to-shell conductivity with optional RFI grounding fingers
Styles available that meet several European specifications, General Electric and Rolls
Royce specifications
Special Shell Geometry Styles available
Pyle Connectors with
PC Tail and Standoff
HERMETIC STYLE CONNECTORS
•
Hermetic styles are available in threaded receptacles with solderwell or flat eyelet
termination . PC Tail Designs are available on request .
Designed for environmental moisture sealing with fused compression glass sealed inserts
High temperature hermetics 200°C and 260°C Firewall
* MIL-DTL-83723 supersedes
MIL-C-83723 .
** The Amphenol Pyle 83723 family
is offered in stainless steel shell
classes . See the Amphenol Matrix
83723 family for aluminum shell
classes in the preceding section of
this catalog .
K
18
•
•
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
MIL-DTL-83723, Series III, Pyle
®
Manufacturer’s Specifications
The Amphenol/Pyle
®
Product line of MIL-DTL-83723*, Series III Connectors was
developed for the higher operating temperatures inherent in today’s high
performance aircraft and aircraft engines .
THESE CONNECTORS MEET THE PERFORMANCE REQUIREMENTS
OF THE FOLLOWING MANUFACTURER’S SPECIFICATIONS:
•
•
•
•
Boeing BACC63CM/CN* Firewall
European: ASD† EN2997
General Electric: M50TF3564
Rolls Royce/SBAC: ESC10 and ESC11
ESC11
Engine Connector

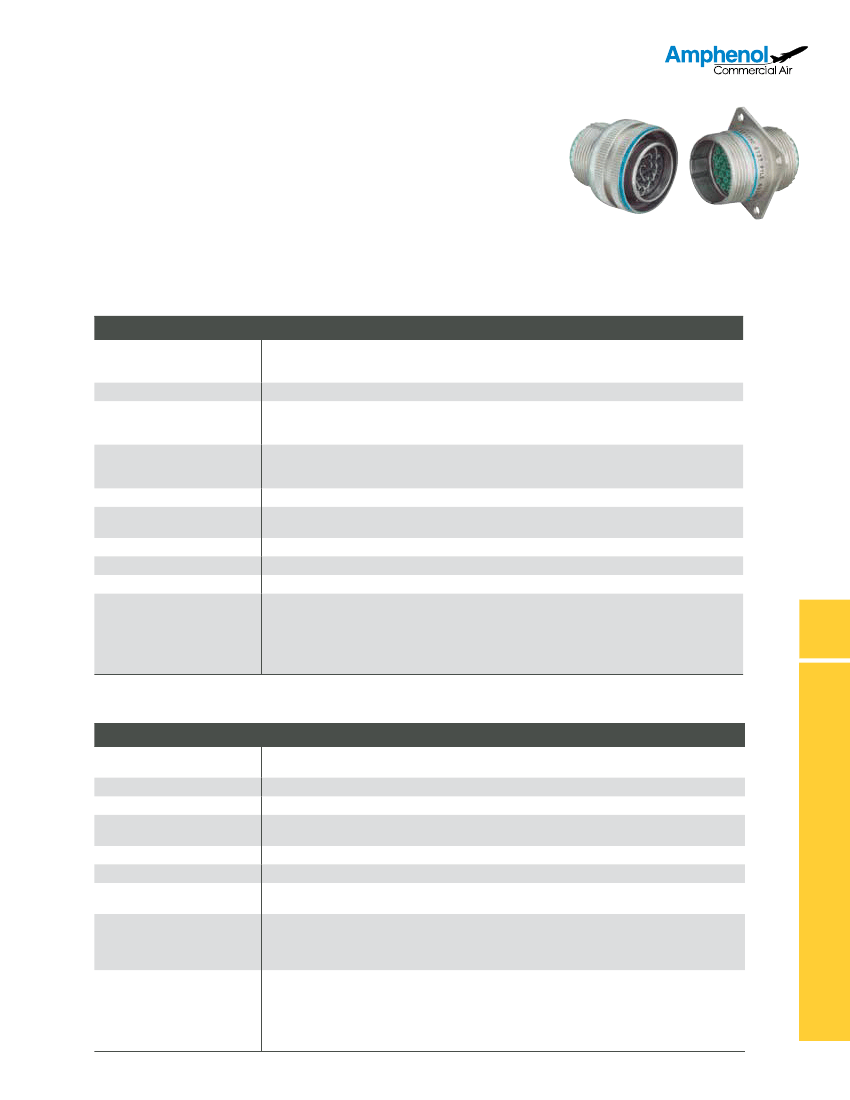

MIL-DTL-83723, SERIES III CONNECTOR PERFORMANCE CHARACTERISTICS
Operating Temperature Data
Std: –85°F (–65°C) to 392°F (200°C)
Class K types meet fireproof test per MIL-DTL-83723 2000°F (1093°C)
High Temperature Series: Operates at 500°F (260°C)
Sea Level to 110,000 feet
Service Rating I
Sea Level . . . . . .1,500
50,000 ft . . . . . . . . . . .500
70,000 ft . . . . . . . . . . 375
110,000 ft . . . . . . . . 200
Size 20 contacts . . . 7 .5 amperes max .
Size 16 contacts . . . 13 .0 amperes max .
Size 12 contacts . . . 23 amperes max .
Exceeds MIL-DTL-83723 requirements
500 cycles per MIL-DTL-83723 for threaded coupling;
500 cycles per General Electric M50TF2321 for non-decoupling styles
To 98% relative humidity, including condensation
Freezing rain
Exceeds requirements of MIL-DTL-83723/95 and 96 .
Meets MIL-DTL-83723 of 41 .7G’s for 16 hours .; Boeing BACC63CM/CN for 36 hours
General Electric vibration spec . M50TF2321 and M50TF2238 for 36 hours, which includes:
Vibration
Temp. Extremes
G Level
Time Length
Altitude
Voltage
Breakdown Rating
Contact Rating
Contact Retention Strength
Connector Durability
Humidity
Exposure
Non-Decoupling
83723 III
Room Temp . . . . . . . . . . . . . . 60 G’s . . . . . . . . . . 12 hrs . (4 hrs . each axis)
–65°F ±5°F . . . . . . . . . . . . . . . 60 G’s . . . . . . . . . . . 12 hrs . (4 hrs . each axis)
350°F ±5°F . . . . . . . . . . . . . . . 60 G’s . . . . . . . . . . . .12 hrs . (4 hrs . each axis)
Pyle
HERMETIC CONNECTOR PERFORMANCE CHARACTERISTICS
Thermal Shock
Physical Shock (Mated)
Moisture Resistance (Mated)
Insulation Resistance, High
Temp . (Mated)
Corrosion (Unmated)
Temperature Life
Air Leakage (Unmated)
No damage detrimental to the operation of the connector occurs when subjected to 10 cycles of
thermal shock from 0°C to 90°C and back to 0°C .
300 G’s
500 Megohms
500 Megohms
Complies with MIL-DTL-83723 Req .
Fully functional for 1000 hours at 200°C (392°F) ambient . Internal temperature 238°C (460°F) .
Less than .01 micron per cubic feet per hour on application of 15 PDS pressure differential across the
connector .
After 3 cycles immersed in salt water with pressure reduced to 1 in . Hg (75,000 ft . altitude) for 30
minutes and returned to atmosphere pressure . While connectors submerged insulation resistance
should remain 1000 megohms minimum and support 1500 volts RMS applied without flash-over or
breakdown .
When tested in accordance with MIL-STD-202, Method 301, no flash-over or breakdown under simu-
lated altitude conditions as shown:
Altitude/Service Rating I
High Potential Voltage Altitude
* BACC63CM supersedes BACC63BR and BACC63CN supersedes BACC63BT .
50,000 . . . . . . . . . . 500 AC-RMS
(Unmated)
† ASD supersedes AECMA
70,000 . . . . . . . . . . 375 AC-RMS
Altitude Immersion (Mated)
110,000 . . . . . . . . 200 AC-RMS
K
A
19
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
MIL-DTL-83723, Series III, Pyle
®

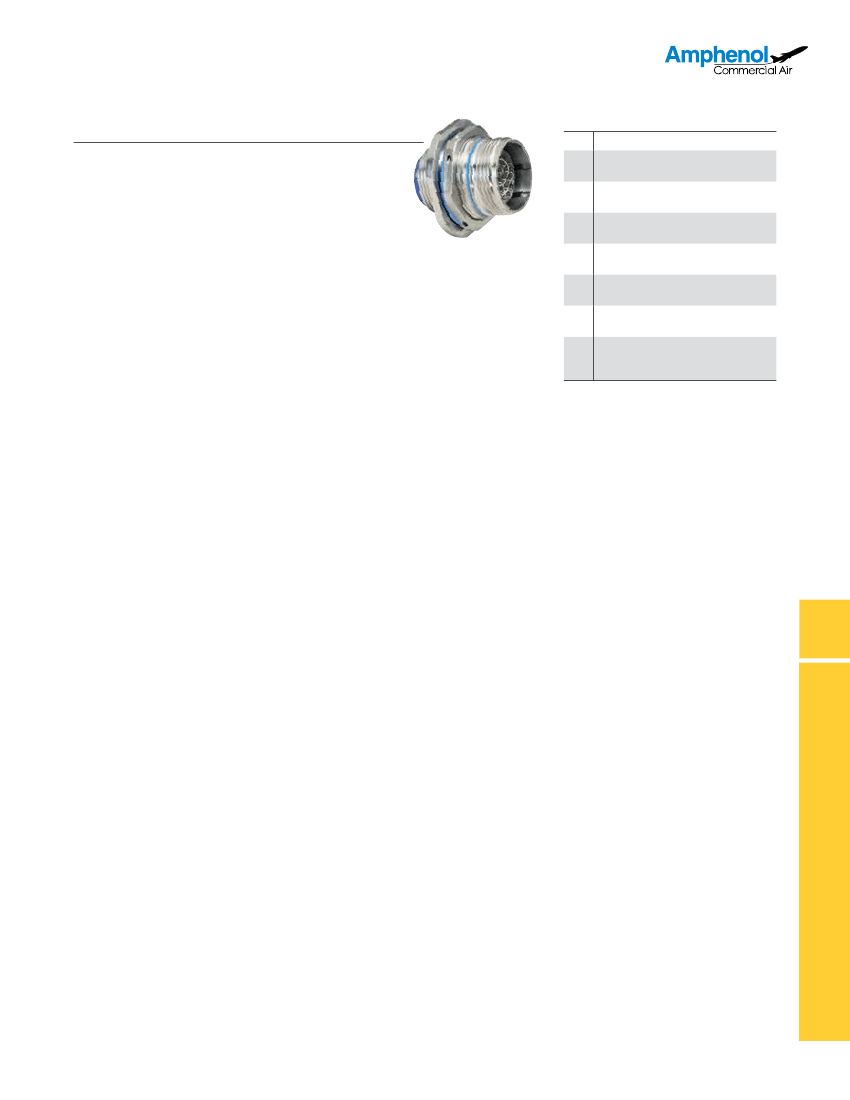

Sq. Flange Receptacle, Threaded - Quick Reference
MIL-DTL-83723, SERIES III SQUARE FLANGE
RECEPTACLE, THREADED COUPLING
Military:
Military:
Commercial:
M83723/82
with Sockets,
Classes G, K
M83723/83
with Pins,
Classes G, K
BT( )-17
With ‘O’ ring seal, Classes G, K
SERVICE CLASSES*
MILITARY AND COMMERCIAL
G
K
S
P
Stainless steel, 200°C
Stainless steel, 200°C Firewall
capability
Stainless steel, 200°C firewall capa-
bility, grounding spring
Stainless steel, 200°C, hermetic with
eyelet contacts
Comm . Special for
Stainless steel, 200°C, hermetic with
General Electric:
BJ-17
Y
solderwell contacts
SQUARE FLANGE
With Static Dynamic Seal,
RECEPTACLE
Stainless Steel, but not avail . in Firewall
Stainless steel, high temp . (260°C)
THREADED
KE
firewall capability
BJ8-17
Same as BJ-17 except with Scoop-proof
Stainless steel, high temp . (260°C)
SE
firewall capability, grounding spring
recessed pins
BN-17
Stainless steel, high temp . (260°C)
Same as BJ-17 except Electro-deposited
YE
firewall capability, hermetic with
Nickel Base
solderwell contacts
BN8-17
* For Classes A, R and W (aluminum shell
Same as BN-17 except with Scoop-proof
types) - Amphenol supplies these in their Matrix
recessed pins
83723 family . See the preceding section of this
BNK-17
catalog, 83723 III Matrix .
Same as BN except Stainless Steel Firewall
Special with Boeing
Designation:
BACC63CN**
With ‘O’ ring seal, Stainless Steel Firewall,
with Boeing approved contacts,
Shell modifications with 360° teeth per MS3155
Comm . Special per
Boeing Co . Spec .:
BSK-17
Stainless Steel Firewall with ‘O’ ring seal,
qualified to Boeing,
Y126 Variation - with Boeing approved contacts
SQUARE FLANGE RECEPTACLE,
Commercial
THREADED, PER EUROPEAN STDS.
ASD Designation:
EN2997 ( )0
(Green Insert - High Temp 260°C;
Meets ASD specifications
Blue insert - 200°C)
200°C temp . (Classes K, S, Y),
260°C high temp . (Classes KE, SE, YE)
Commercial - Meet
Comm .- Meet Several
Society of British
European Stds:
BT( )-17
Aerospace Co ./Rolls
With ‘O’ ring seal, Classes G, K
Royce Standards:
ESC10 ( )0
Variations for Euro market specifications
260°C Firewall (Classes KE, SE, YE),
BJ( )-17
360° accessory teeth per MS3155
With Static Dynamic Seal,
ESC11 ( )0
Classes G, K
260°C Firewall (Classes KE, SE, YE),
Variations for Euro market specifications
Scoop-proof recessed pins,
360° accessory teeth per MS3155
ESC10 & ESC11 also available in
Hermetic square flange receptacles -
See Hermetic quick ref . page 369 .
ESC11 with
Scoop-Proof
(Recessed pins):
HTK-17
Standard ESC11, Class K Firewall,
Scoop-proof, Variations for Euro market
specifications
HNK-17
Nickel finish, Class K Firewall
Mating recept . has ‘O’ ring seal, Scoop-
proof, Variations for Euro market specs
HSK-17
Same as HTK, except this is a special
designator for Boeing Co .
Pyle
K
20
83723 III
** BACC63CN supersedes BACC63BT .
See how to order pages 29-36 for complete part numbers .
Bayonet style square flange receptacles are shown on page 40 .
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com

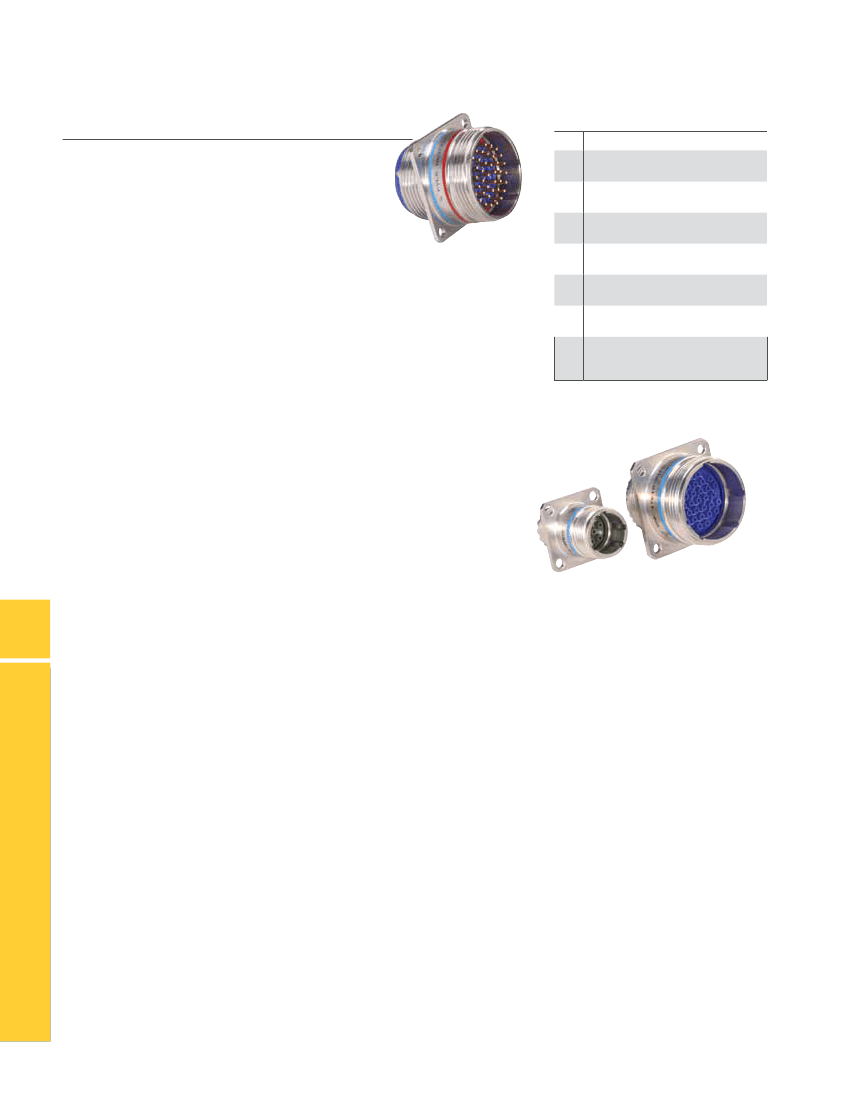

MIL-DTL-83723, Series III, Pyle
®
Jam Nut Receptacle, Threaded - Quick Reference
MIL-DTL-83723, SERIES III JAM NUT (D-HOLE
MOUNT) RECEPTACLE, THREADED COUPLING
Military:
Military:
Commercial:
M83723/84
with Sockets,
Classes G, K
M83723/85
with Pins,
Classes G, K
BT( )-19
With ‘O’ ring seal, Classes G, K
SERVICE CLASSES*
MILITARY AND COMMERCIAL
G
K
S
P
Stainless steel, 200°C
Stainless steel, 200°C firewall
capability
Stainless steel, 200°C firewall
capability, Grounding Spring
Stainless steel, 200°C, hermetic with
eyelet contacts
Stainless steel, 200°C, hermetic with
solderwell contacts
Stainless steel, high temp . (260°C)
firewall capability
Stainless steel, high temp . (260°C)
firewall capability, grounding spring
Stainless steel, high temp . (260°C)
firewall capability, hermetic with
solderwell contacts
Comm . Special for
General Electric:
BJ-19
With Static Dynamic Seal,
Stainless Steel, but not avail . in Firewall
BJ8-19
Same as BJ-17 except with Scoop-proof
recessed pins
BN-19
Same as BJ-17 except Electro-deposited
Nickel Base
BN8-19
Same as BN-17 except with Scoop-proof
recessed pins
BNK-19
Same as BN except Stainless Steel Firewall
Commercial
ASD Designation:
EN2997 ( )7
Meets ASD specifications
200°C temp . (Classes K, S, Y),
260°C high temp . (Classes KE, SE, YE)
NFL 54143 ( )7
Comm .- Meet Several
European Stds:
BT( )-19
With ‘O’ ring seal, Classes G, K
Variations for Euro market specifications
BJ( )-19
With Static Dynamic Seal,
Classes G, K
Variations for Euro market specifications
Commercial - Meet
Society of British
Aerospace Co ./Rolls
Royce Standards: ESC10 & ESC11 jam nut receptacles are
available in Hermetic only - See Hermetic
quick ref . pages 24 & 25 .
JAM NUT
(D-HOLE MOUNT)
RECEPTACLE,
THREADED
Y
KE
SE
YE
* For Classes A, R and W (aluminum shell
types) - Amphenol supplies these in their Matrix
83723 family . See the preceding section of this
catalog, 83723 III Matrix .
83723 III
Pyle
No Boeing Designated Jam nut receptacle .
See how to order pages 29-36 for complete part numbers .
Bayonet style jam nut receptacles are shown on page 41 .
K
A
21
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
京公网安备 11010802033920号
EEWORLD
