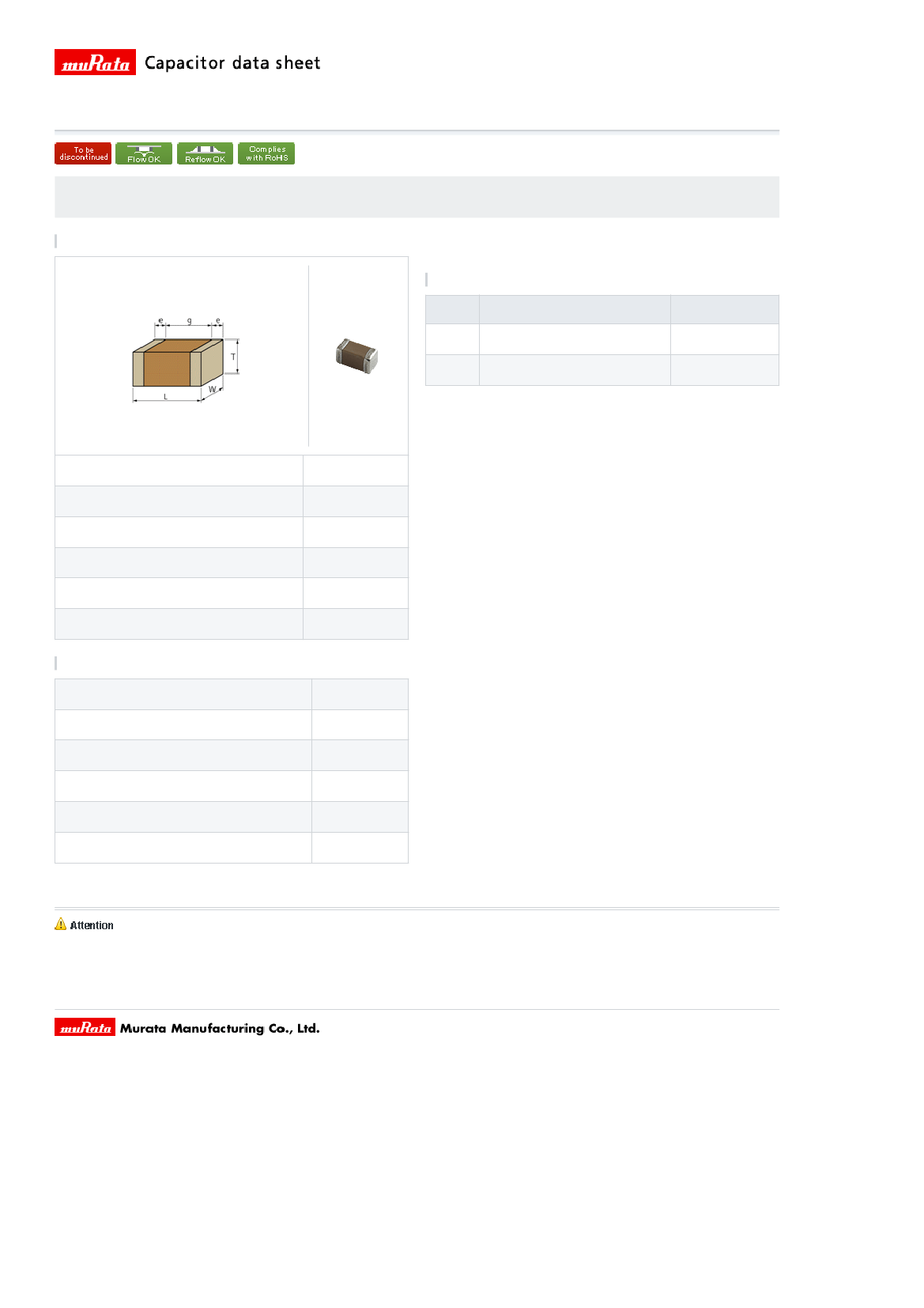

GRM31MR72A203MD01K: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 100V, X7R, 0.02uF, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size40KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GRM31MR72A203MD01K Overview

CAPACITOR, CERAMIC, MULTILAYER, 100V, X7R, 0.02uF, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT

GRM31MR72A203MD01K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1842973830
package instruction	, 1206
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.02 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.15 mm
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	100 V
size code	1206
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal shape	WRAPAROUND
width	1.6 mm

Preview

Download Datasheet

View All

GRM31MR72A203MD01#

# indicates a package specification code.

< List of part numbers with package codes >

GRM31MR72A203MD01L , GRM31MR72A203MD01K

Shape

References

Packaging

L

K

Specifications

φ180mm Embossed taping

φ330mm Embossed taping

Minimum quantity

3000

10000

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

3.2 ±0.15mm

1.6 ±0.15mm

1.15 ±0.1mm

0.3 to 0.8mm

1.5mm min.

1206 (3216)

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Capacitance change rate

Temperature range of temperature characteristics

Operating temperature range

20000pF ±20%

100Vdc

X7R(EIA)

±15.0%

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20

GRM31MR72A203MD01K Related Products

	GRM31MR72A203MD01K	GRM31MR72A203MD01L
Description	CAPACITOR, CERAMIC, MULTILAYER, 100V, X7R, 0.02uF, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT	CAPACITOR, CERAMIC, MULTILAYER, 100V, X7R, 0.02uF, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Objectid	1842973830	1842973831
package instruction	, 1206	, 1206
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
capacitance	0.02 µF	0.02 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC
high	1.15 mm	1.15 mm
length	3.2 mm	3.2 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes
negative tolerance	20%	20%
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT
method of packing	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 7 INCH
positive tolerance	20%	20%
Rated (DC) voltage (URdc)	100 V	100 V
size code	1206	1206
surface mount	YES	YES
Temperature characteristic code	X7R	X7R
Temperature Coefficient	15% ppm/°C	15% ppm/°C
Terminal shape	WRAPAROUND	WRAPAROUND
width	1.6 mm	1.6 mm
