B14B-PH-K-S

Description
CONN HEADER PH TOP 11POS 2MM
CategoryThe connector
File Size127KB,4 Pages
ManufacturerETC2
Download Datasheet View All

B14B-PH-K-S Overview

CONN HEADER PH TOP 11POS 2MM

PH
CONNECTOR
2
3
4
5
6
Emboss Tape
2.0mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 2A AC, DC (AWG #24)
• Voltage rating: 100V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10m
max.
After environmental testing/ 20m
max.
• Insulation resistance: 1,000M
min.
• Withstanding voltage: 800V AC/ minute
• Applicable wire: AWG #32 to #24
• Applicable PC board thickness: 0.8 to 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.

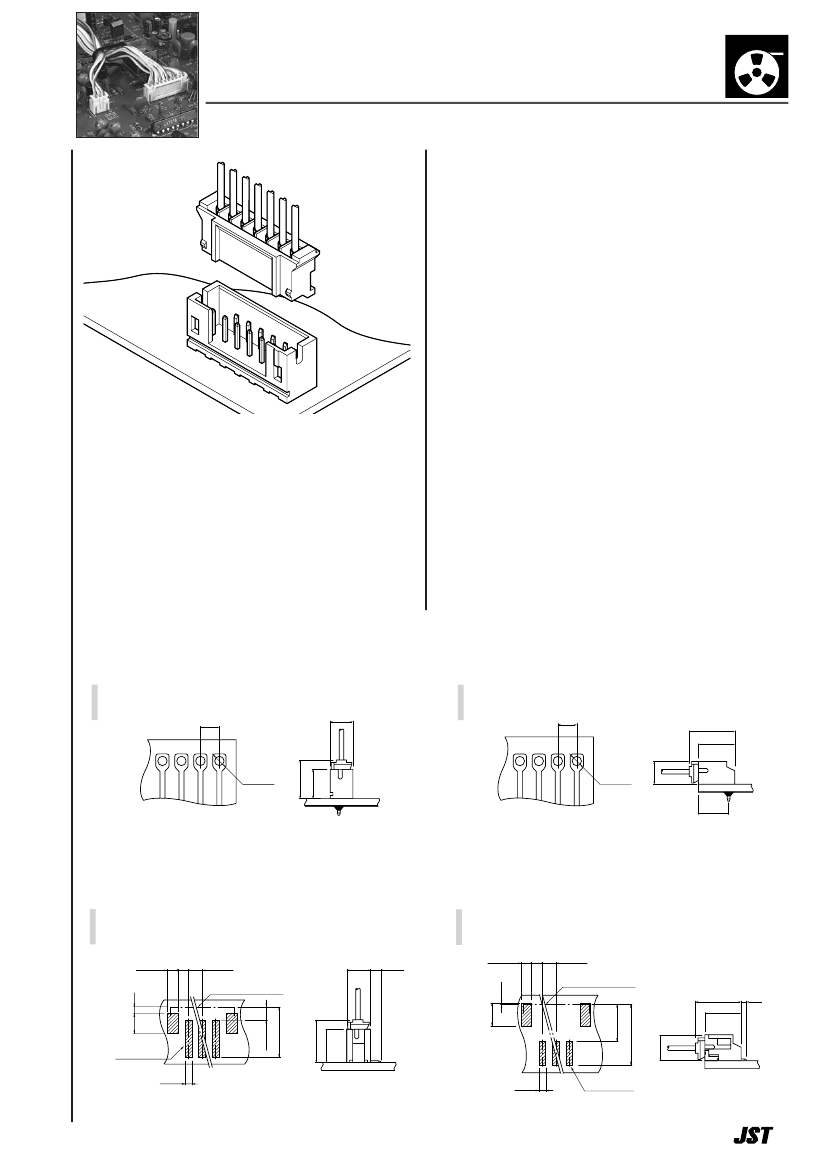

This is a thin, low-profile 2.0mm pitch
connector 8.0mm in height after mounting
and 4.5mm in width. It is designed to meet
the demand for high-density connection of
internal wires to printed circuit boards. It is
compact, highly reliable and low in cost.
• Reliable contact
• Fully shrouded header
• Printed circuit board retention mechanism
• Surface mount model (SMT)
Standards ––––––––––––––––––––––
1
Certified LR20812
2
R75087
0
Recognized E60389
Through-hole type (viewed from soldering side)
Top entry type
2
±0.05
4.5
Side entry type
2
±0.05
9.6
7.6
6
φ0.7
 0
8
+0.1
φ0.7
 0
+0.1
4.8
6.25
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should
be larger. The dimensions above should serve as a guideline. Contact JST for details.
SMT type (viewed from component side)
SM4 type
Top entry type
1.6
±0.1
1.6
±0.1
2
±0.05
End face of wafer
on the mating side
5
(2)
SM4 type
Side entry type
1.5
±0.1
1.6
±0.1
2
±0.05
0.2
End face of wafer
on the mating side
9.6
7.6
1
1
±0.1
7.5
min
5.5
max
±0.1
3.4
2
max
8.6
6.6
9
min
3
Circuit No.1
1
min
1
min
Circuit No.1
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
5.5
1
