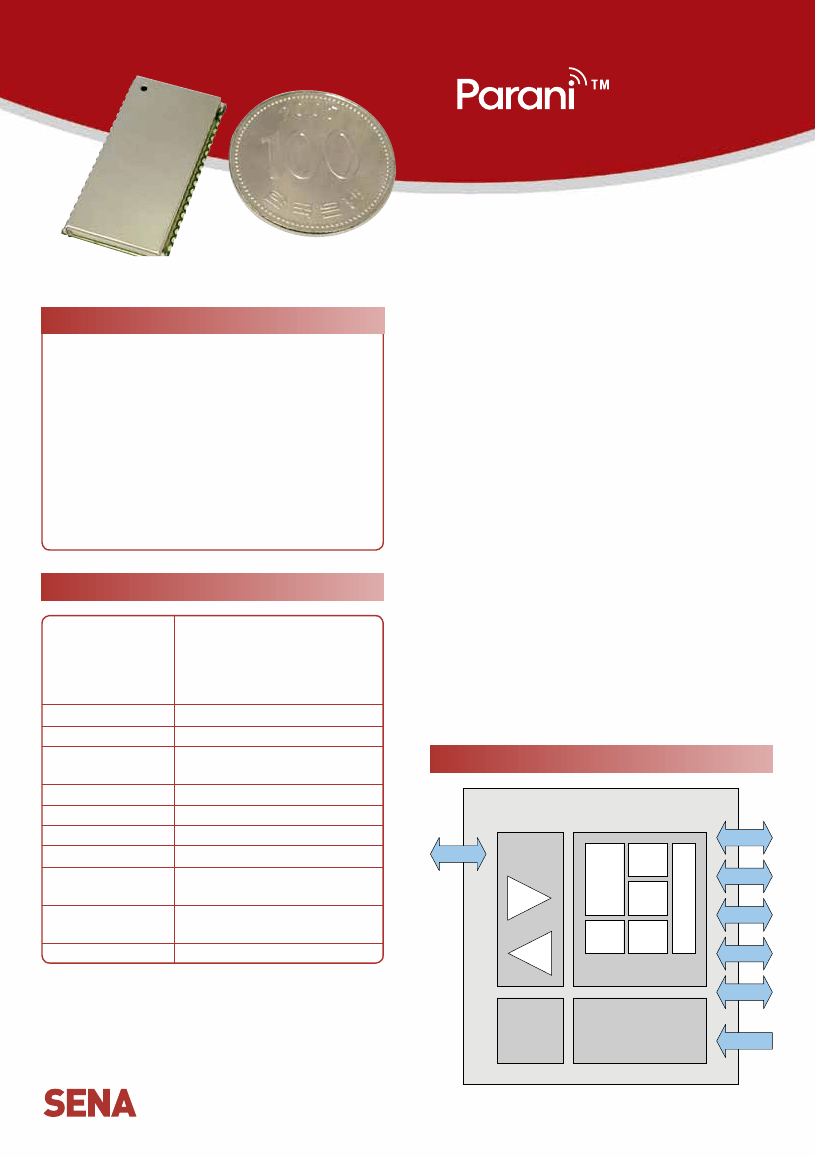

Bluetooth Module,
BCD100
The Parani-BCD100
Features
· Bluetooth Class 1
· Fully qualified with Bluetooth v2.0 + EDR specification
· Transmit Power: +18dBm Typical
· Receive sensitivity: -90dBm (0.1% BER)
· Size: 27.1 x 14.8 x 2.4mm with shield can
· Extended operating temperature range: -20˚C ~ +80˚C
· Integrated 8Mbit Flash Memory
· USB, Dual UART, I2C, PCM, PIO interfaces
· 802.11 co-existence
· Field-proven SPP (Serial Port Profile) firmware
supporting up to 4 simultaneous multiple connections
· RoHS Compliant
is a Bluetooth Class 1 OEM
module for OEM manufacturers who want to implement Bluetooth
Class 1 functionality with their products cost effectively and
also in timely manner. Users can build their own antenna circuit
around the BCD100 to lower the overall cost while benefit from
the BCD100’s field-proven standard SPP (Serial Port Profile)
firmware provided with no additional cost.
The BCD100 supports Class 1 Bluetooth transmission level for
longer communication distance. The BCD100 supports UART,
USB, I2C, PCM, PIO interfaces for the communication with the
OEM products.
The BCD100 is provided with Bluetooth v2.0 compatible
firmware runs internally for SPP (Serial Port Profile) applications
by default. The SPP firmware supports up to 4 simultaneous
multiple connections and is designed to work out-of-box for real
world SPP applications such as POS (Point-of-sales), industrial
automation, remote metering and other various applications.
Optionally, the BCD100 can be supplied with only software stack
up to HCI level so entire Bluetooth stack runs on the host side
for the application such as USB dongles for computers, or OEM
manufacturers can even develop and embed their own firmware
into the BCD100.
The BCD100 is fully qualified with Bluetooth v.2.0+EDR
specification so OEM manufacturers can save cost and time for
overall OEM product certifications, which makes the BCD100
ideal solution for larger volume and cost sensitive applications.
Specifications
Bluetooth
Fully qualified with Bluetooth v2.0
+EDR specification
EDR (Enhanced Data Rate)
compliant with v2.0 of specification
for both 2Mbps and 3Mbps
+18dBm Typical (Class1)
-90dBm (0.1% BER)
2401 MHz ~ 2480 MHz
Up to 921 kbps
V1.2
UART, USB, I2C, PCM, PIO
2.7V~3.6V
-20˚C
~ +80˚C
27.1 mm x 14.8 mm x 2.4 mm
( 1.06 in x 0.58 in x 0.09 in )
Bluetooth SIG (QDID: B015728)
Transmit Power
Receive Sensitivity
TX Output Spectrum-
Frequency range
UART
USB
Interface
Power
Operating
Temperature
Physical
Properties
Approval
Device Diagram
Parani-BCD100
USB
RF_IN/OUT
RF Amplifier
Circuit
2.4GHz
Radio
RAM
UART
Baseband
DSP
IO
LNA
SPI
Voltage
Regulator
1.8V core
MCU
PA
PIO
BlueCore4 External
PCM
Crystal
26Mhz
Flash Memory
8Mb
VCC 3.3V
www.sena.com
BCD100
Pin Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
Bluetooth Module,
Applications
· High-speed data transceiver systems for long distance
communication
· PCs/Personal Digital Assistants (PDA)
· Bluetooth USB dongle
· Bluetooth serial dongle
· Bluetooth access points
· Industrial automation devices
· Remote metering devices
· POS (Point-of-sales) devices
Software Stack
BCD100 is provided with Bluetooth v2.0 compatible firmware
runs internally for SPP (Serial Port Profile) applications by default.
The firmware is designed to work out-of-box for real world SPP
applications such as POS (Point-of-sales), industrial automation,
remote metering and other various applications.
Optionally, the BCD100 can be supplied with only software
stack up to HCI level so users can develop and embed their
own firmware version into the BCD100 or entire Bluetooth stack
runs on the host side for the application such as USB dongle for
computers. Regarding these custom firmware options, please
contact a Sena representative for more detail.
Function
USB Interface
Pin Name
USB_DP
USB_DN
Pin Number
11
10
8
7
6
9
15
12
13
14
20
23
22
21
29
28
24
25
26
27
30
31
32
33
4
5
3
16
1
2
17
19
34
35
36
18
Description
USB data plus
USB data minus
UART data output
UART data input
UART request to send active low
UART clear to send active low
Synchronous data output
Synchronous data input
Synchronous data sync
Synchronous data clock
SPI data output
SPI data input
Chip select for SPI, active low
SPI clock
Programmable input/output line
Programmable input/output line
Programmable input/output line
Programmable input/output line
Programmable input/output line
Programmable input/output line
Programmable input/output line
Programmable input/output line
Programmable input/output line
Programmable input/output line
Analogue programmable input/output line
Analogue programmable input/output line
Power supply for power amplifier, 3.3V
Power supply for system, 3.3V
Ground
Ground
Ground
Ground
Ground
Ground
Transmitter output/receiver input
Reset, active low, > 5ms to cause a reset
UART Interface
UART_TXD
UART_RXD
UART_RTS
UART_CTS
PCM Interface
PCM_OUT
PCM_IN
PCM_SYNC
PCM_CLK
SPI Interface
SPI_MISO
SPI_MOSI
SPI_CSB
SPI_CLK
Ordering Information
Part Number
BCD100-01
Description
Bluetooth v2.0+EDR class 1 OEM module,
Reel type package, Minimum order quantity
100
Parani-BCD100 OEM Bluetooth Module,
Bluetooth v2.0+EDR, Class 1 (HCI)
For more information,
please visit us at
http://www.sena.com
Tel: 408-448-1997 Fax: 408-907-3738
Sales and Support Toll Free (US/Canada): 8669-US-SENA (866-987-7362)
General Information Toll Free (US/Canada): 8668-US-SENA (866-887-7362)
PIO Interface
PIO_2
PIO_3
PIO_4
PIO_5
PIO_6
PIO_7
PIO_8
PIO_9
PIO_10
PIO_11
AIO_0
AIO_1
BCD100-02
U.S. / Canada / South America
Power
PVCC
+3V3
GND
GND
GND
GND
GND
GND
Tel: +33 (0)1 53 53 16 29 Fax: +33 (0)1 70 24 70 90
EU / Africa
Tel: +82-2-576-7362 Fax: +82-2-573-7710
Asia / Pacific
Others
RF_I/O
RESETB
General Information: info@sena.com
Sales & Distribution: sales@sena.com
Technical Support: support@sena.com
Contact us via E-mail
www.sena.com
